DT31-2010 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> DT31-2010

Preview

DT31-2010: DescriptionTelecom Transformer; CategoryPower management transformer; File Size46KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

DT31-2010 Overview

Telecom Transformer

DT31-2010 Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 2:1
Maximum DC unbalanced current	160 mA
high	12.7 mm
JESD-609 code	e3
length	14 mm
Manufacturer's serial number	DT31-2010
Installation features	THROUGH HOLE MOUNTED
physical size	14.0mm X 14.0mm X 12.7mm
surface mount	NO
Terminal surface	TIN
Transformer type	TELECOM TRANSFORMER
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Telecommunication

HDSL Transfor mer

Transformers

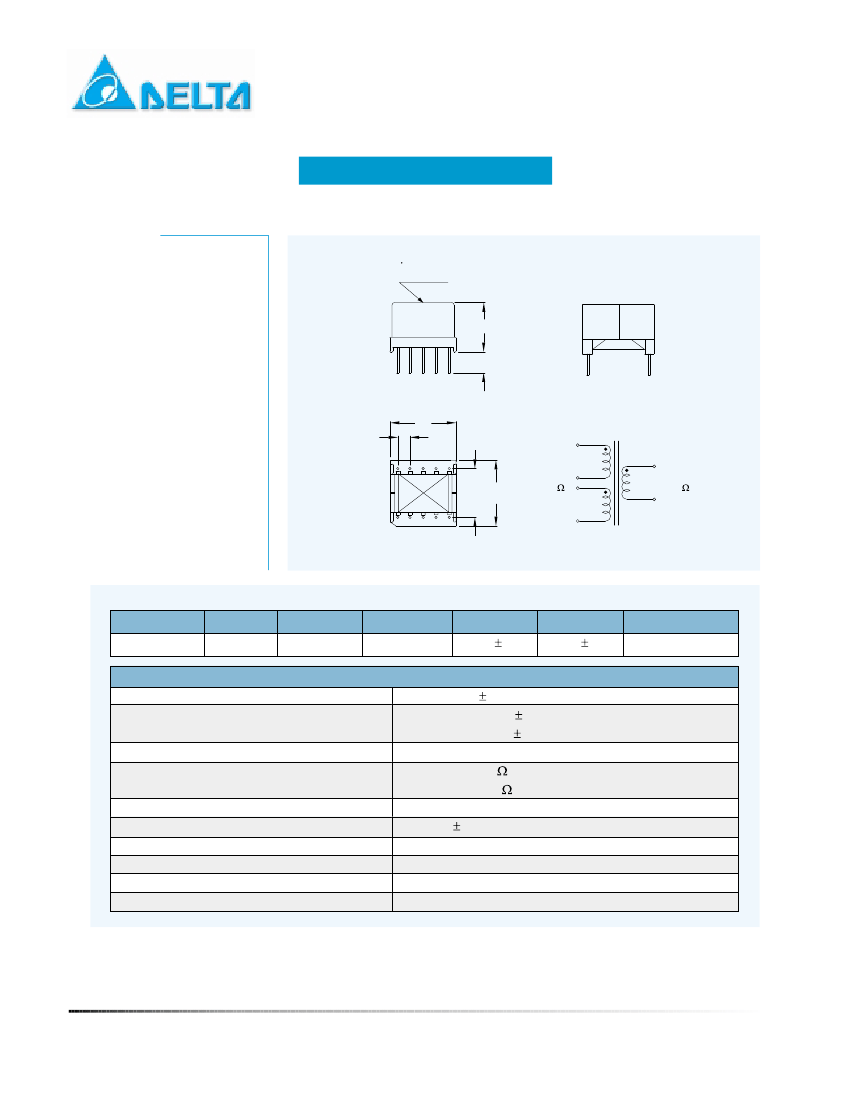

DT31-2010

DELTAXXXX

DT31-2010

A

B

10 9 8

7 6

6

5

XXXX : DATE CODE

WHITE DOT ON PIN1

F

10

9

D

8

7 6

1

PRI

135

E C

1 2 3

4 5

4

2

5

9

7

SEC

32

DIMENSIONS IN mm

A

12.7 MAX.

B

2.8 MIN.

C

14.0 MAX.

D

14.0 MAX.

E

10.16

0.2

F

2.54 0.2

ELECTRICAL CHARACTERISTICS

TURNS RATIO

INDUCTANCE

LEAKAGE INDUCTANCE

D.C. RESISTANCE

INSERTION LOSS

FREQUENCY RESPONSE

RETURN LOSS

LONGITUDINAL BALANCE

TOTAL HARMONIC DISTORTION

DIELECTRIC STRENGTH

2:1

1% @10KHz, 1V

PRI: 3.0 mH 6% @10KHz, 1V

PRI: 3.0 mH 6% @10KHz, 0.1V, 160mA

PRI: 11 uH Max. @100KHz, 0.1V

PRI: 2.5

SEC: 1.0

Max.

0.4 dB Max. @200KHz

0.1dB @40KHz ~ 200KHz

20 dB Min. @40KHz ~ 200KHz

53 dB Min. @40KHz ~ 200KHz

-70 dB Max. @40KHz, 14dBm

2050 VAC, 2 SEC @PRI TO SEC

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

31-1, SHIEN PAN ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3626301 FAX: 886-3-3618901

http://www.deltaww.com
