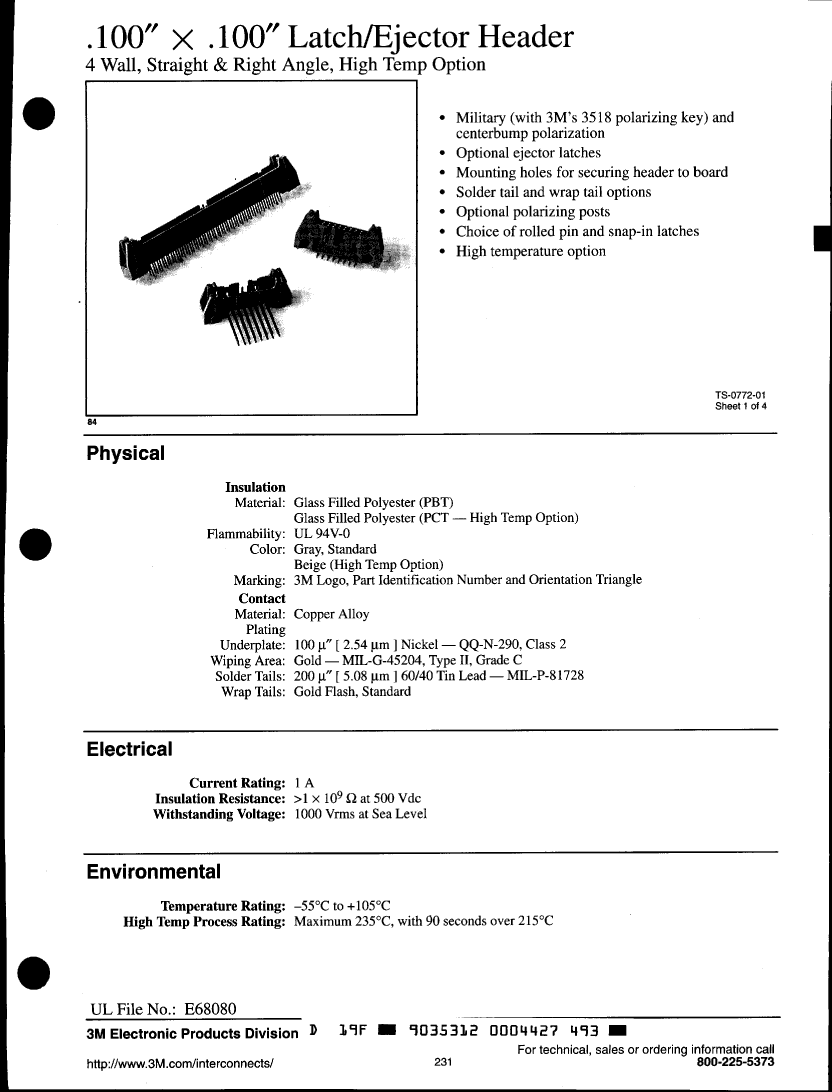

3764-65K2UG datasheet, PDF - EEWORLD Datasheet

3764-65K2UG: DescriptionHEADER CON,PCB MNT,RECEPT,64 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,LATCH & EJECT,GRAY; CategoryThe connector The connector; File Size317KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

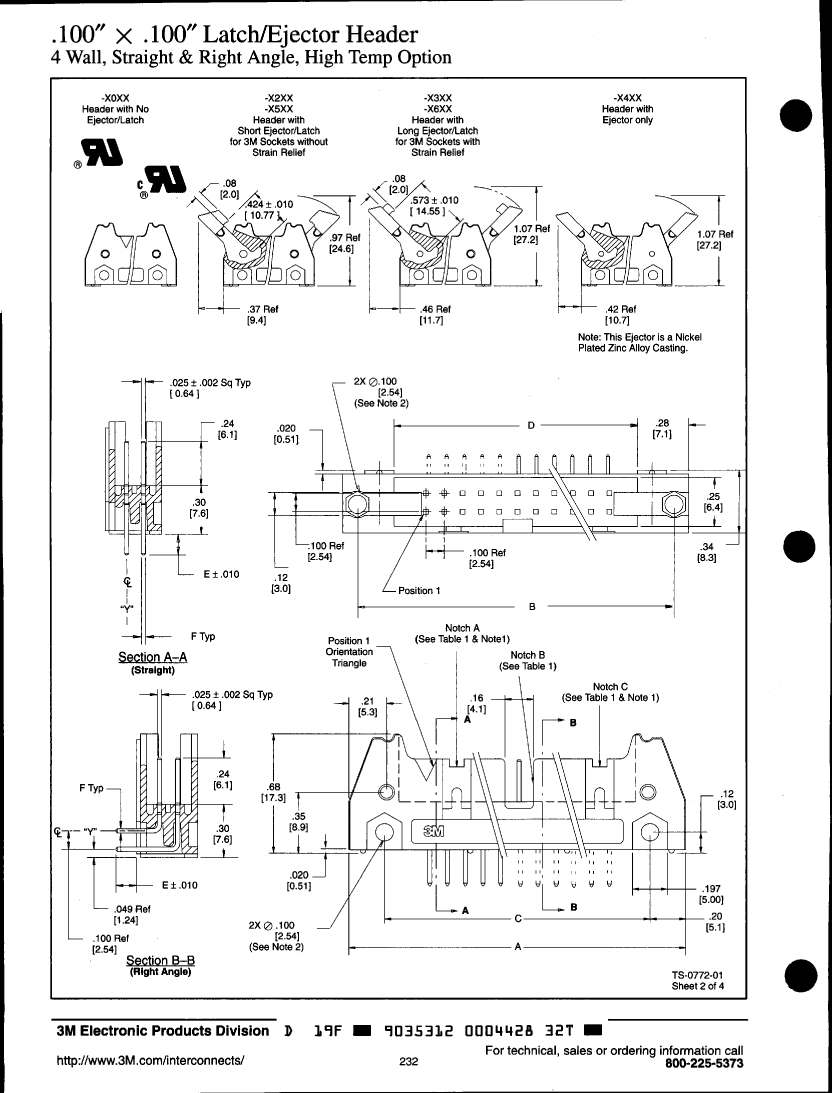

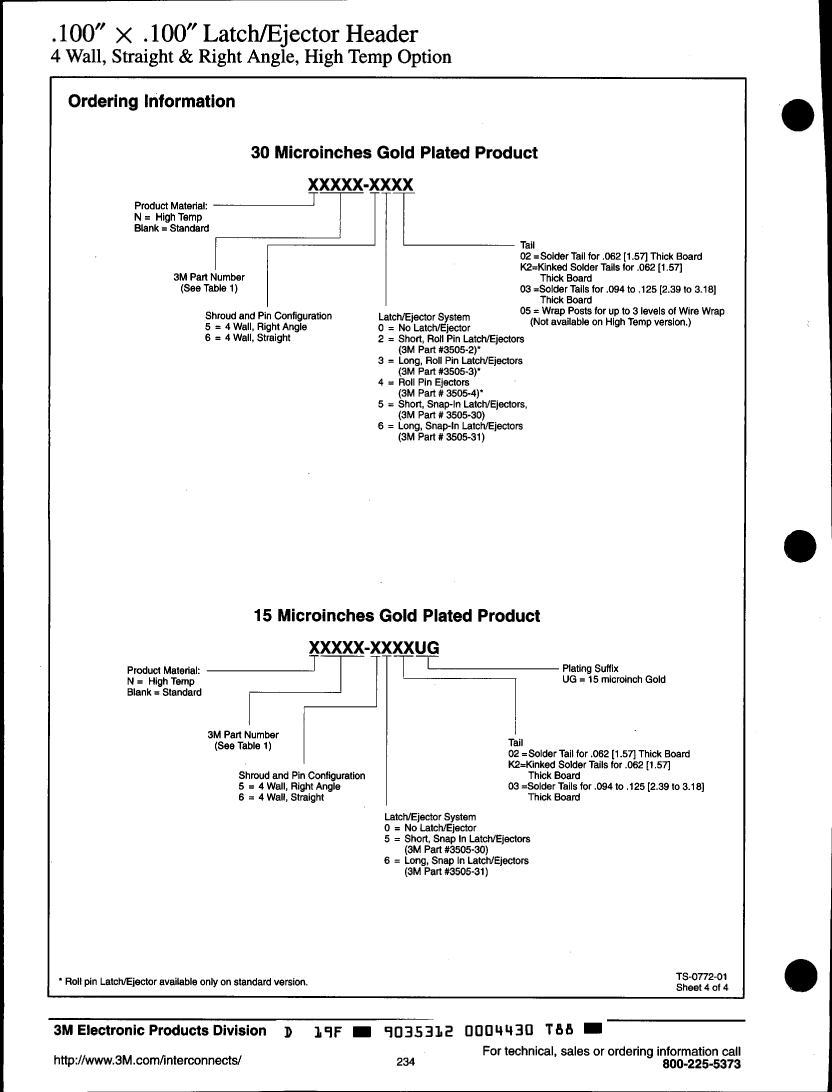

3764-65K2UG Overview

HEADER CON,PCB MNT,RECEPT,64 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,LATCH & EJECT,GRAY

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	SHORT,SNAP-IN LATCH/EJECTORS

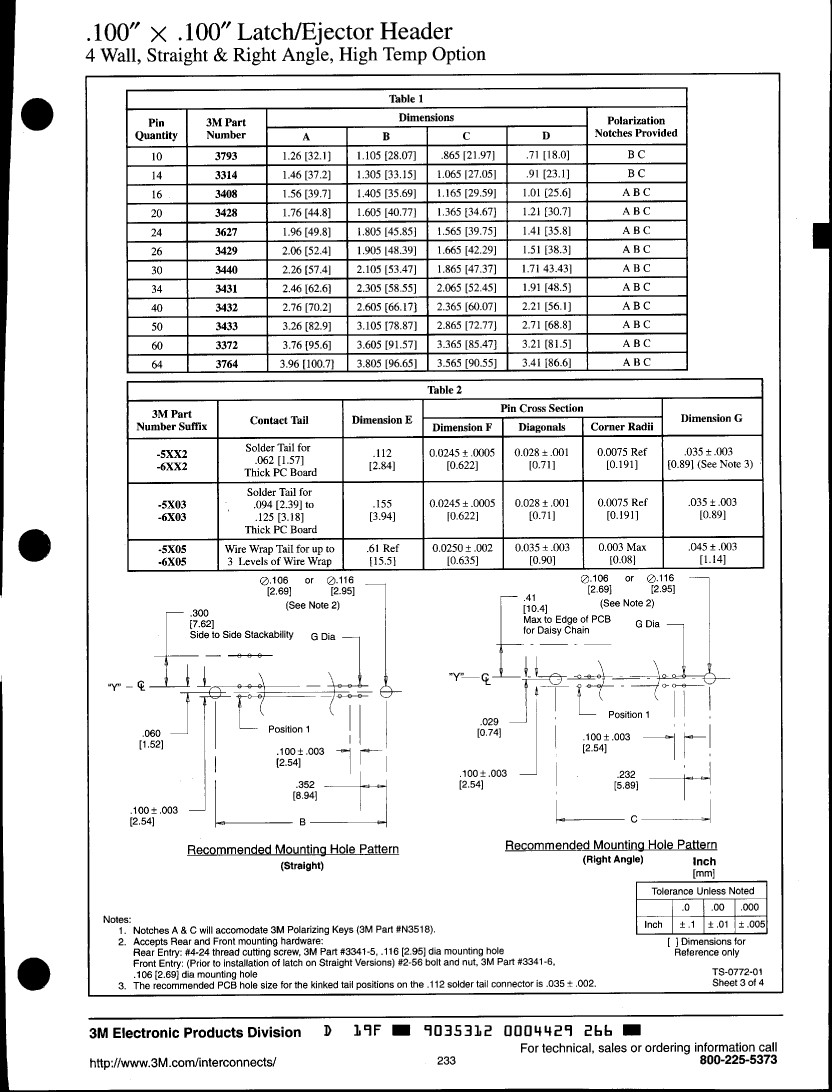

Board mount options	HOLE .099-.111
body width	0.327 inch
subject depth	0.681 inch
body length	3.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3764
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	64
Base Number Matches	1
