"High Frequency Ceramic Solutions"

3.7 GHz 1:1 RF Balun

Detail Specification: 10/13/11

P/N 3700BL15B050

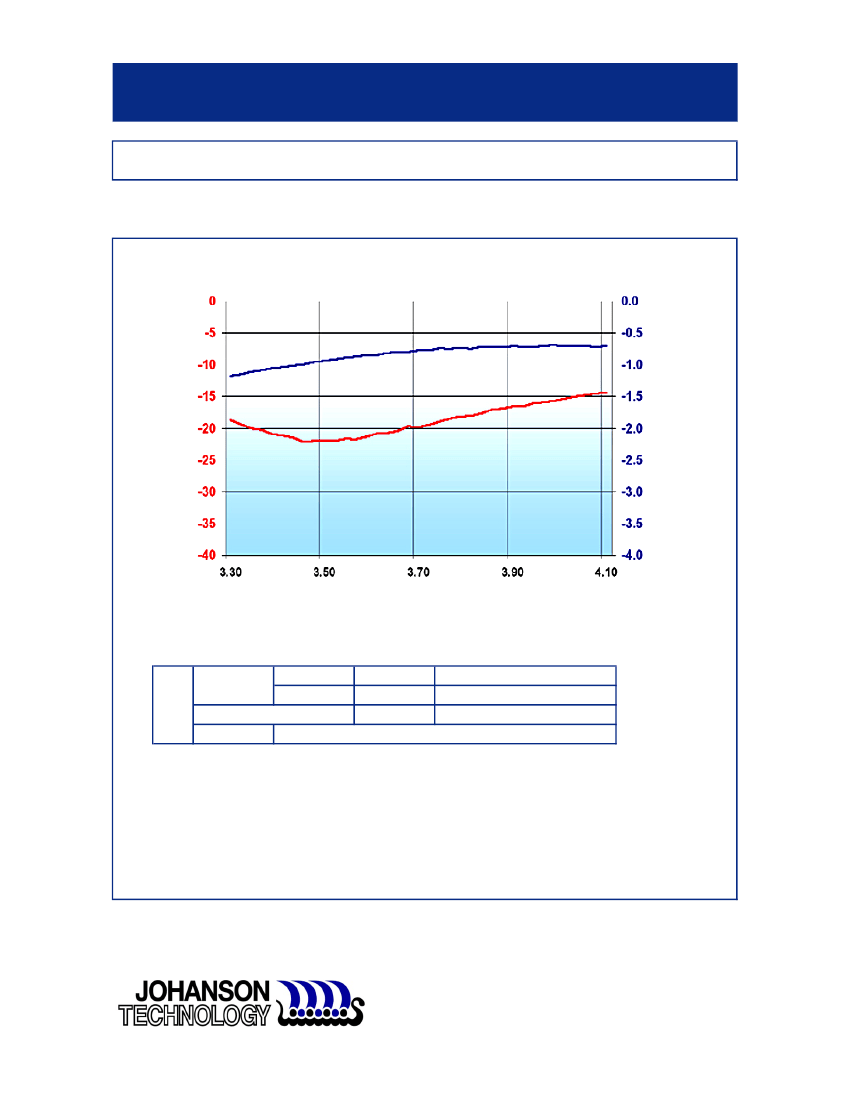

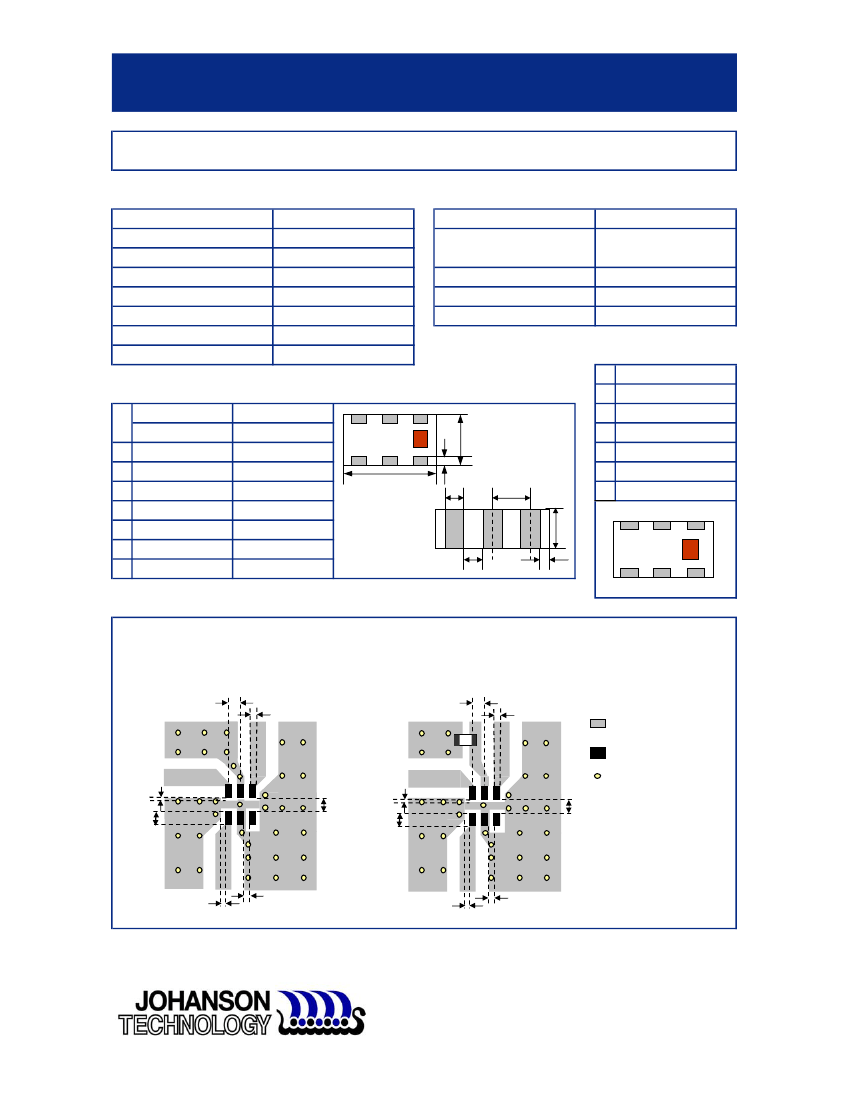

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Unbalanced Impedence

Differential Balanced Imp.

Insertion Loss

Return Loss

Phase Difference (degree)

Amplitude Difference

3700BL15B050

3400~4000

Ω

1.2 dB max.

9.5 dB min.

180 ± 25

2 dB max.

Terminal Configuration

No.

Operating Temperature

Storage Temperature

Range

-40 to +85°C

+5 to +35°C, 18 mos. max.

Humidity 45~75% RH

Reel Quanity

Power Capacity

Impedence

4,000

100 mWatts max.

50 / 50

Ω

Function

Unbalanced Port

GND or DC Feed

Balanced Port

GND

Mechanical Dimensions

0.079 ± 0.004

0.049 ± 0.004

0.033 ± 0.004

0.012 ± 0.004

0.008 ± 0.004

0.012

+.004/-.006

0.014 ± 0.004

0.026 ± 0.002

2.00 ± 0.10

1.25 ± 0.10

0.85 ± 0.10

0.30 ± 0.10

0.20 ± 0.10

0.30

+0.1/-0.2

0.35 ± 0.10

0.65 ± 0.05

Mounting Considerations

Mount these devices with colored mark facing up.

Line width should be designed to provide proper impedance matching characteristics.

Units: mm

Without DC Feed

0.65

0.35

With DC Feed

0.65

0.35

0.2

1.0

0.2

0.8

1.0

Solder Resist

Land

Through-hole (φ0.3)

0.8

RF Bypass (DC block)

cap recommended value:

2.4-4.7pF when DC-Feed

feature used

0.25

0.3

0.25

0.3

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
