3-530655-4 datasheet, PDF - EEWORLD Datasheet

3-530655-4: Description18 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size240KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

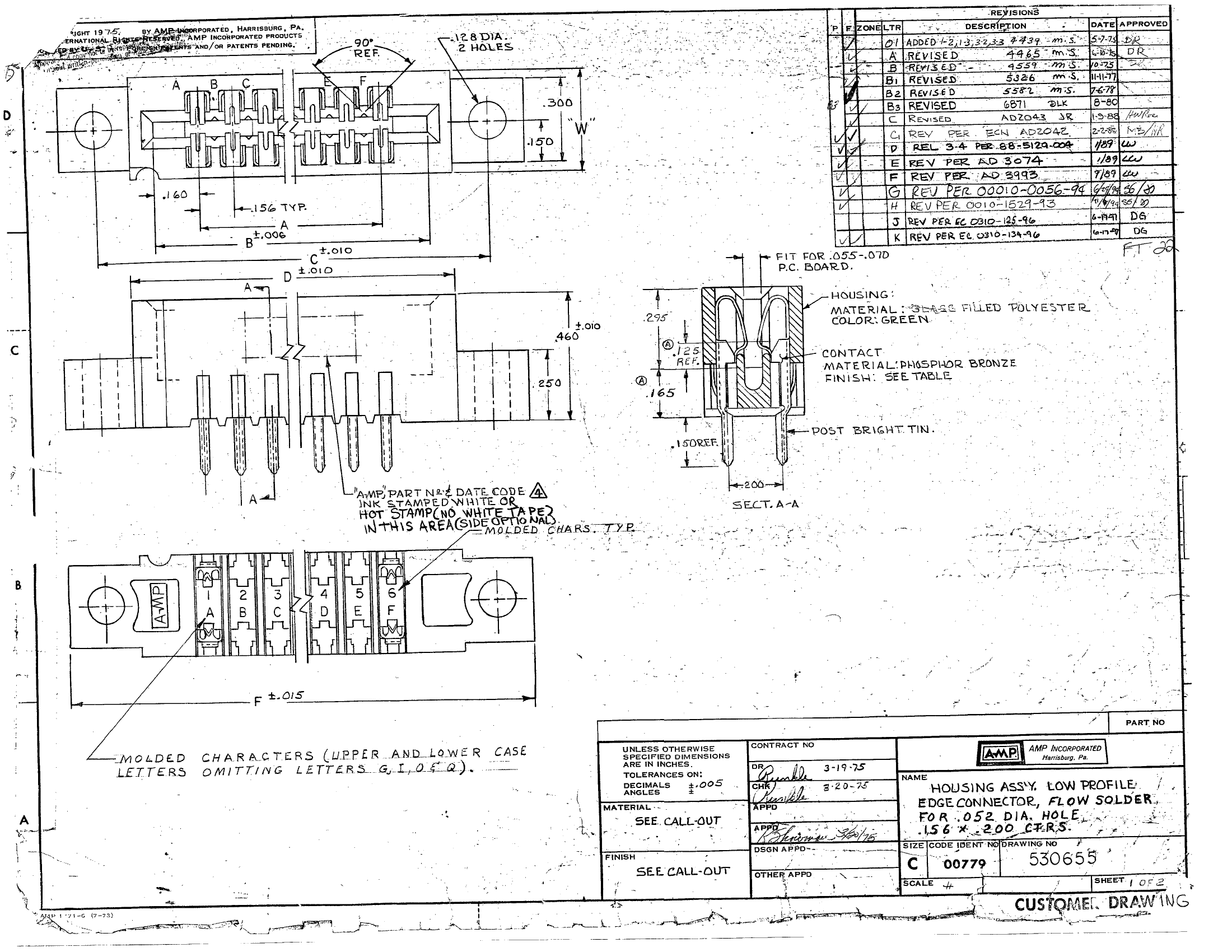

3-530655-4 Overview

18 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	530655
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

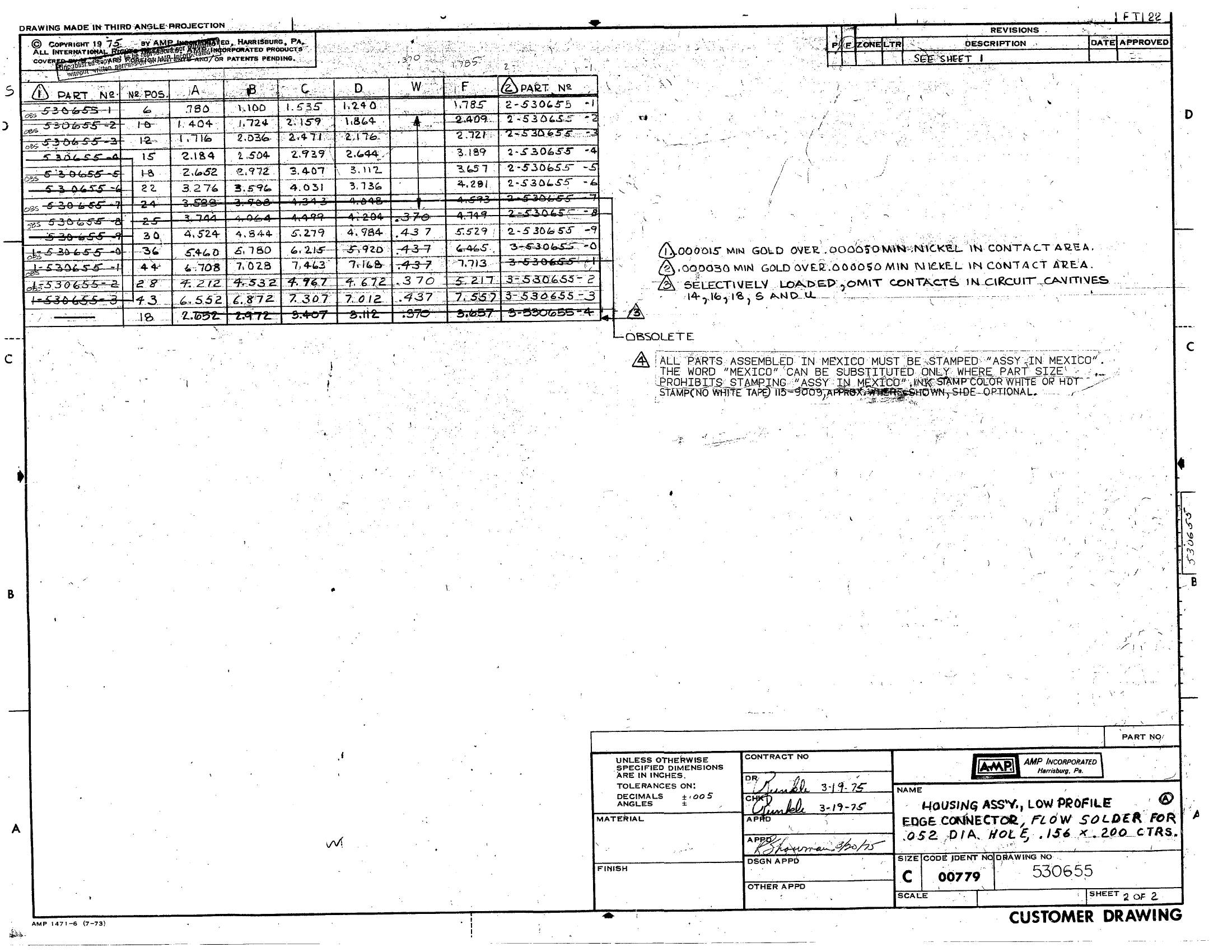

	3-530655-4	530655-8	530655-4
Description	18 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	25 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	15 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
Reach Compliance Code	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	530655	530655	530655
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	18	25	15
Base Number Matches	1	1	-
