2207-10-A-01 datasheet, PDF - EEWORLD Datasheet

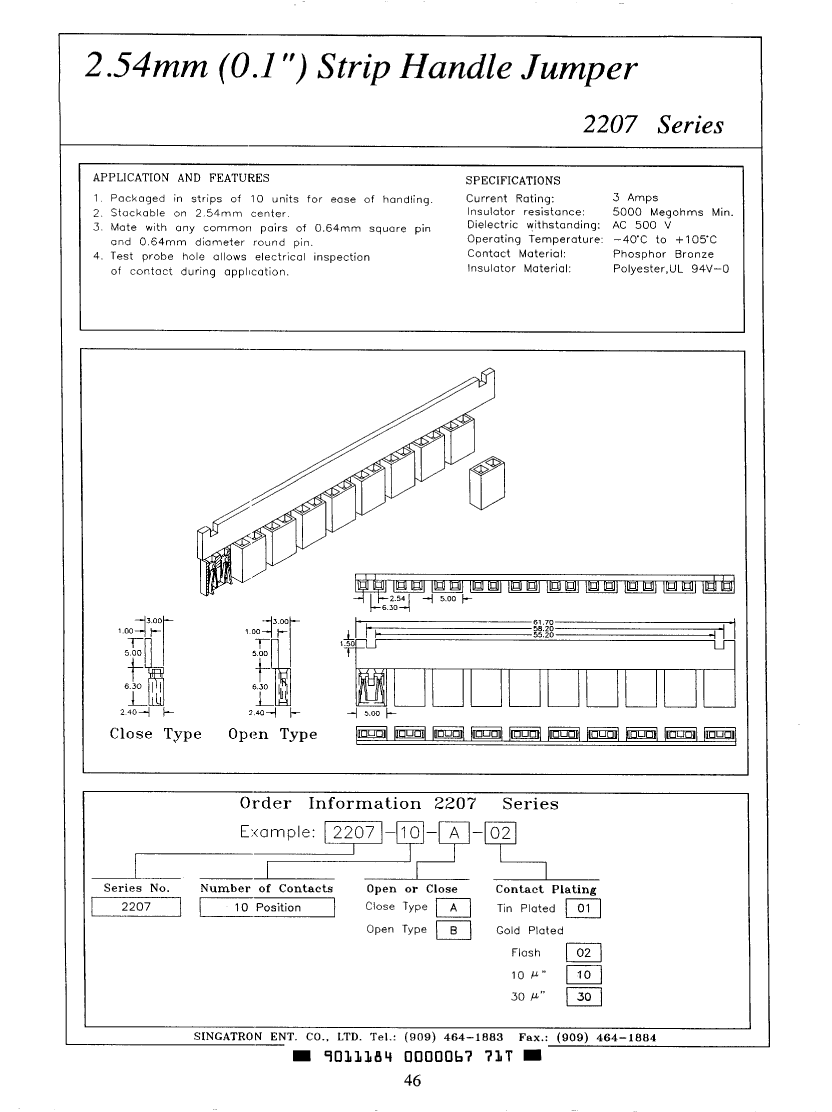

2207-10-A-01: DescriptionShunts/Jumper Connector; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

2207-10-A-01 Overview

Shunts/Jumper Connector

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
Other features	CLOSED TOP, 10-UNIT STRIP
body width	0.094 inch
subject depth	0.248 inch
body length	0.197 inch
Body/casing type	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	2207
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2
Base Number Matches	1

	2207-10-A-01	2207-10-A-10	2207-10-A-30
Description	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector
Maker	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co
Reach Compliance Code	compliant	compliant	compliant
Other features	CLOSED TOP, 10-UNIT STRIP	CLOSED TOP, 10-UNIT STRIP	CLOSED TOP, 10-UNIT STRIP
body width	0.094 inch	0.094 inch	0.094 inch
subject depth	0.248 inch	0.248 inch	0.248 inch
body length	0.197 inch	0.197 inch	0.197 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	SN	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	2207	2207	2207
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE
Number of rows loaded	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2	2
Base Number Matches	1	1	1
Plating thickness	-	10u inch	30u inch
