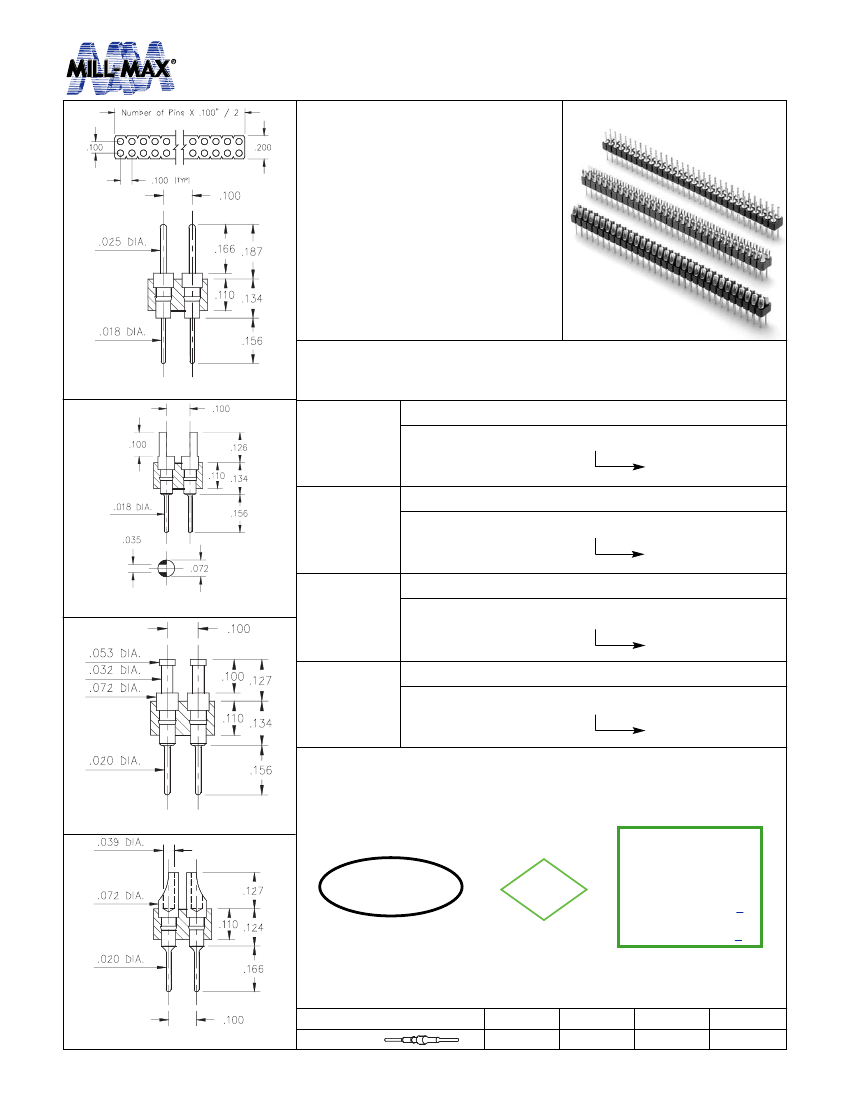

HEADER STRIPS
Solder Tail
Double Row
Series 450, 460
470, 480
•
Series 450, 460, 470, 480 double
row Header Strips come with
various contacts (pin, slotted
head, turret and solder cup) with
pluggable solder tails.
(M-M# 0290, 0282, 0700, or 8000
see pages 173 & 174 for details).
Ordering Information
Fig. 1
Fig. 1
Series 450...001
Pin / Solder Tail
450-XX-2_ _-00-001000
Specify # of pins
02-64
Fig. 2
Series 460...001
Slotted Head / Solder Tail
460-XX-2_ _-00-001000
Specify # of pins
02-64
Fig. 2
Fig. 3
Series 470...001
Turret / Solder Tail
470-XX-2_ _-00-001000
Specify # of pins
02-64
Fig. 4
Series 480...001
Solder Cup / Solder Tail
480-XX-2_ _-00-001000
Specify # of pins
02-64
Fig. 3
For RoHS compliance,
select plating code.
For the gold option
(XX=10) also change
part number from
4X0-XX-2XX-00-001000
to
4X0-10-2XX-00-001100
XX=Plating Code
See Below
SPECIFY PLATING CODE XX=
10
10μ” Au
90
200μ” Sn/Pb
40
200μ” Sn
Fig. 4
Pin Plating
w w w. m i l l - m a x . c o m
64
516-922-6000
