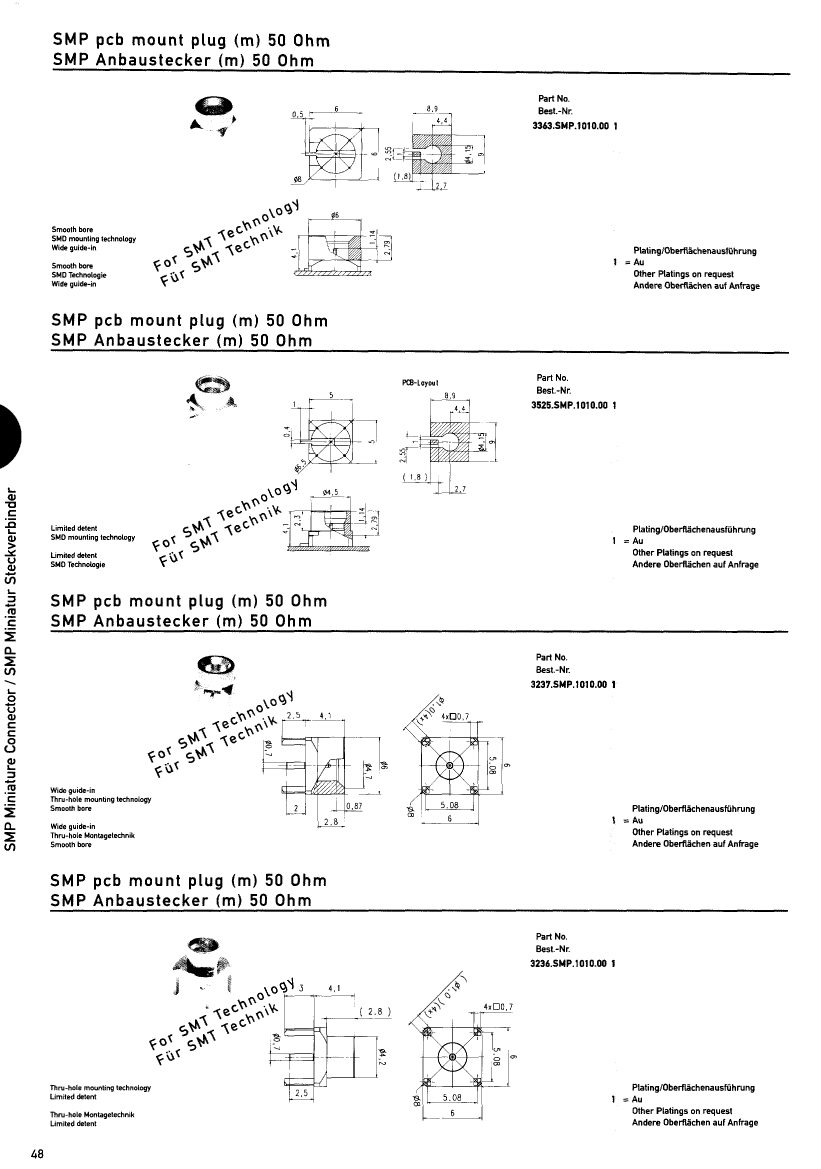

RF SMP Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.236 inch |
| subject depth | 0.161 inch |
| body length | 0.236 inch |
| Body/casing type | PLUG |
| Characteristic impedance | 50 Ω |
| Connector type | RF SMP CONNECTOR |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact resistance | 6 mΩ |
| Contact style | COAX |
| Coupling type | SNAP |
| DIN compliance | NO |
| Dielectric withstand voltage | 700VAC V |
| Durability | 1000 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | SMP |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating frequency | 12 GHz |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Rated current (signal) | 1.2 A |
| Terminal length | 0.098 inch |
| Termination type | SOLDER |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.03 |
| Base Number Matches | 1 |
| 3237.SMP.1010.001 | 3525.SMP.1010.001 | 3363.SMP.1010.001 | |
|---|---|---|---|
| Description | RF SMP Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug | RF SMP Connector, Male, Board Mount, Surface Mount Terminal, Plug | RF SMP Connector, Male, Board Mount, Surface Mount Terminal, Plug |
| Reach Compliance Code | compliant | unknow | unknown |
| Body/casing type | PLUG | PLUG | PLUG |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SMP CONNECTOR | RF SMP CONNECTOR | RF SMP CONNECTOR |
| Contact completed and terminated | GOLD | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE |
| Coupling type | SNAP | SNAP | SNAP |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | SMP | SMP | SMP |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Maximum operating frequency | 12 GHz | 12 GHz | 12 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | NO | NO | NO |
| Termination type | SOLDER | SURFACE MOUNT | SURFACE MOUNT |
| Base Number Matches | 1 | 1 | 1 |
