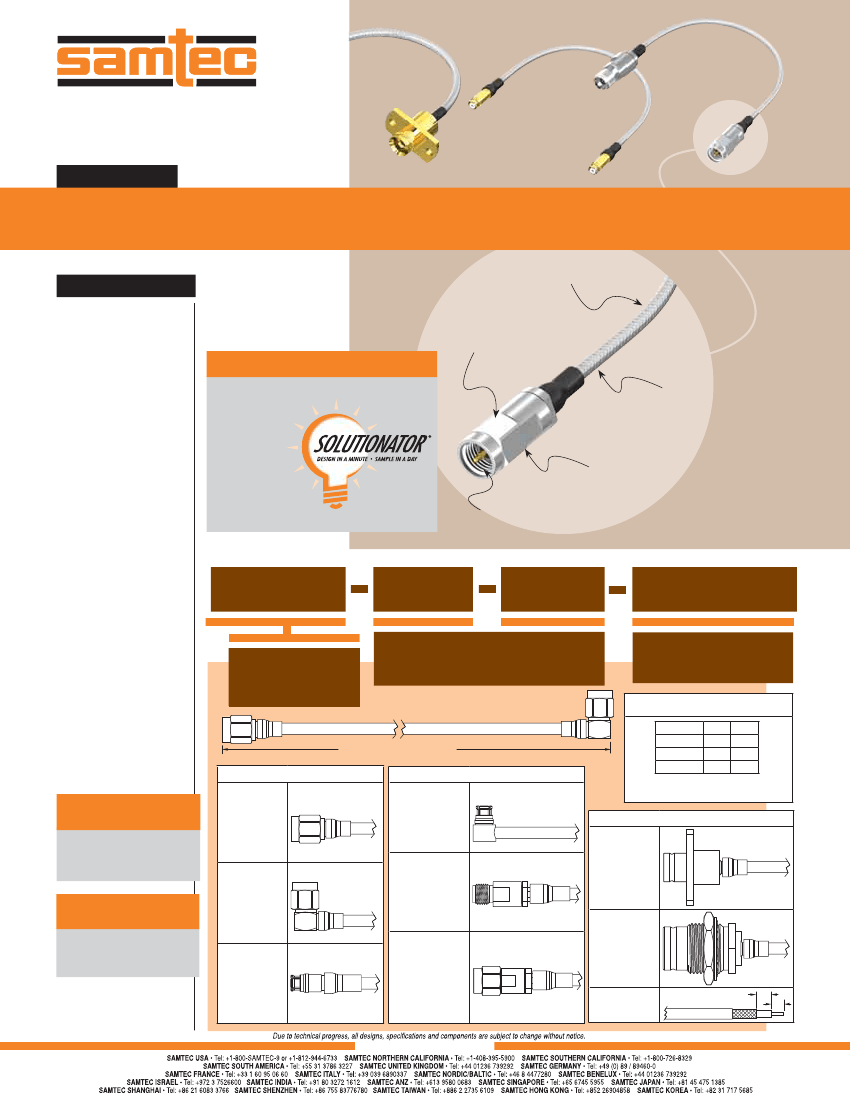

RF-13
RF405–00SJ7–00SJ7–0500
RF405 SERIES
RF405–01SP1–10PN1–0500
RF405–92SJP–92SPP–0500
50Ω .086" DIA SEMI-FLEXIBLE CABLE
SPECIFICATIONS
For complete specifications
see www.samtec.com?RF405
Mates with:
SMA, SMP,
AFI, 292PS
Hand-formable
semi-flexible cable
RF Connector:
Shell Material:
Brass (SMA, AFI-J),
Au plated BeCu (SMP),
BeCu (AFI-P),
Stainless Steel (SMA 2.92)
Contact Material:
Brass (SMA, AFI-J),
Au plated BeCu (SMP),
BeCu (AFI-P)
Insulator Material:
PTFE, PCTFE (SMA 2.92 only)
Impedance:
50Ω
Frequency Range:
0~20 GHz (SMA),
DC to 20 GHz (SMP)
V.S.W.R:
1.4 max (SMA, SMP)
Dielectric Withstanding:
1,000 Vrms (SMA),
500 Vrms min (SMP)
Contact Resistance
(SMA & SMP):
Center Contact: 6mΩ max
Outer Contact: 2mΩ max
Insulator Resistance
(SMA & SMP):
5,000 MΩ min
SMA 2.92 performance
up to 40 GHz
THINK OUTSIDE THE CATALOG
• Create a full system:
cable assembly
and board
level mates,
50Ω and
75Ω
solutions
• 24-hour
samples
on standard
products
• Visit: rf.samtec.com
(2,18 mm)
.086" DIA cable
Passivated Stainless Steel
outer contact and shell
for SMA 2.92
Choice of SMA, SMA 2.92,
SMP or AFI terminations
CABLE TYPE
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL LENGTH
RG 405 (.086")
Cable:
Impedance:
50Ω microwave
Capacitance:
96.79 pF/meter
Max Attenuation (cable only):
1.20 @ 1 GHz for 1 meter
Conductor Size:
24 AWG (0,56 mm) .022" dia.
Conductor Material:
Silver plated copper clad steel
Insulator Material:
PTFE
Shield Material:
Tinned Copper
RoHS Compliant:
Yes
RF405
= (2,18 mm) .086" DIA
24 AWG Semi-flexible
coax cable
Specify
END OPTIONS
from chart
–01SP1–01RP1 SHOWN
–“XXXX”
= Overall Length in millimeters
–0100 (100 mm) 3.94" minimum
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT A
–3030
3.0
–4030
4.0
–4040
4.0
B
3.0
3.0
4.0
XXXX = OAL (millimeters)
END OPTIONS
–01SP1 = SMA
Straight Plug
(30µ" (0,76 µm)
Gold on Center
Contact,
Gold Flash
on Shell)
–01RP1 = SMA
Right Angle Plug
(30µ" (0,76 µm)
Gold on Center
Contact,
Gold Flash
on Shell)
–00SJ7 = SMP
Straight Jack
(10µ" (0,25 µm)
Gold on Center
Contact,
Gold Flash
on Shell)
END OPTIONS
–00RJ7 = SMP
Right Angle Jack
(10µ" (0,25 µm)
Gold on Center
Contact,
Gold Flash
on Shell)
–92SJP = SMA 2.92
Straight Jack
(30µ" (0,76 µm)
Gold on
Center Contact,
Passivated
Stainless
Steel on Shell)
–92SPP = SMA 2.92
Straight Plug
(30µ" (0,76 µm)
Gold on
Center Contact,
Passivated
Stainless
Steel on Shell)
Both center conductor and braid shield are
stripped, only the center conductor is tinned.
ALSO AVAILABLE
(MOQ Required)
• Additional stripping
and tinning options
Contact Samtec.
END OPTIONS
–10PN1 = AFI
Straight
Panel
Mount Jack
(10µ" (0,25 µm)
Gold on Center
Contact, Gold
Flash on Shell)
–10BH4 = AFI
Straight
Bulkhead Plug
(10µ" (0,25 µm)
Gold on
Center Contact,
Gold Flash
on Shell)
XXXX =
Stripped & Tinned
(End 2 callout)
B
A
OTHER
SOLUTIONS
• Cable connector kits
(see cable components
catalog pages)
Note:
Cable lengths longer
than (1000 mm) 39.40" are not
supported with S.I. test data.
WWW.SAMTEC.COM
