BF-5020622

Description
Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
CategoryThe connector    The connector
File Size80KB，2 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

BF-5020622 Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

BF-5020622 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTIN LEAD (100)
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberBF-50
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded5
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts30
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

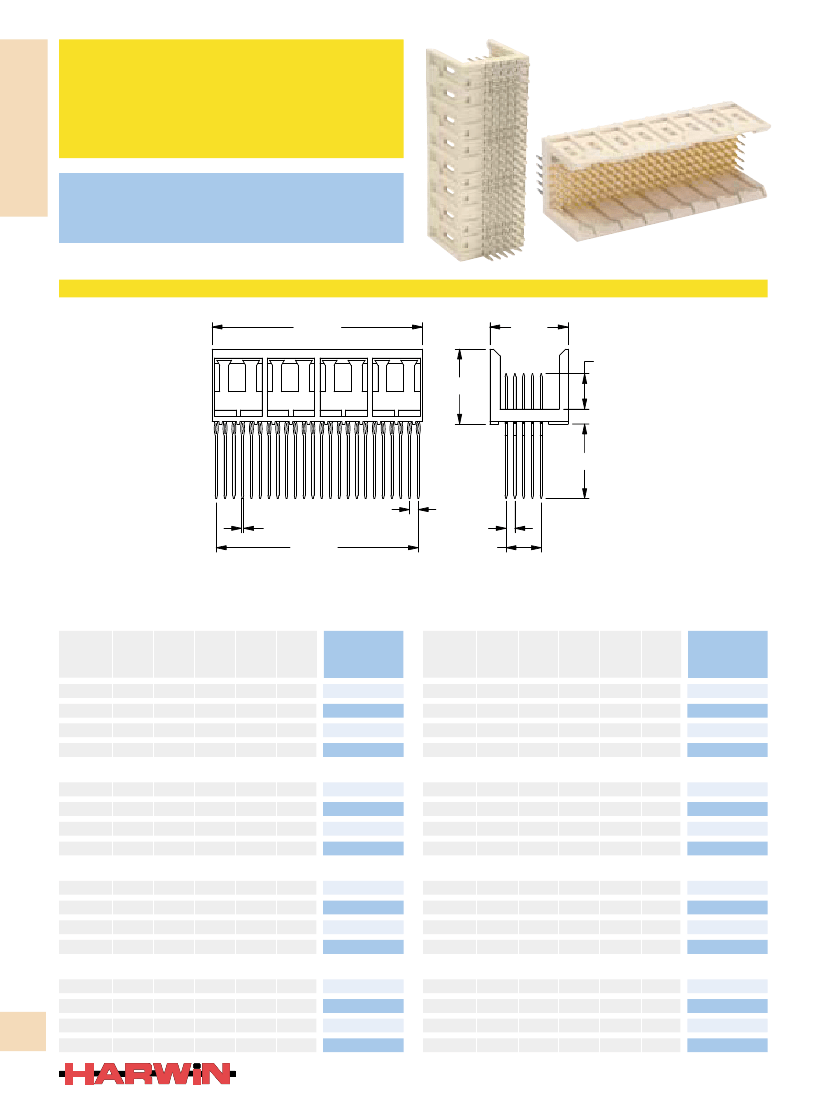

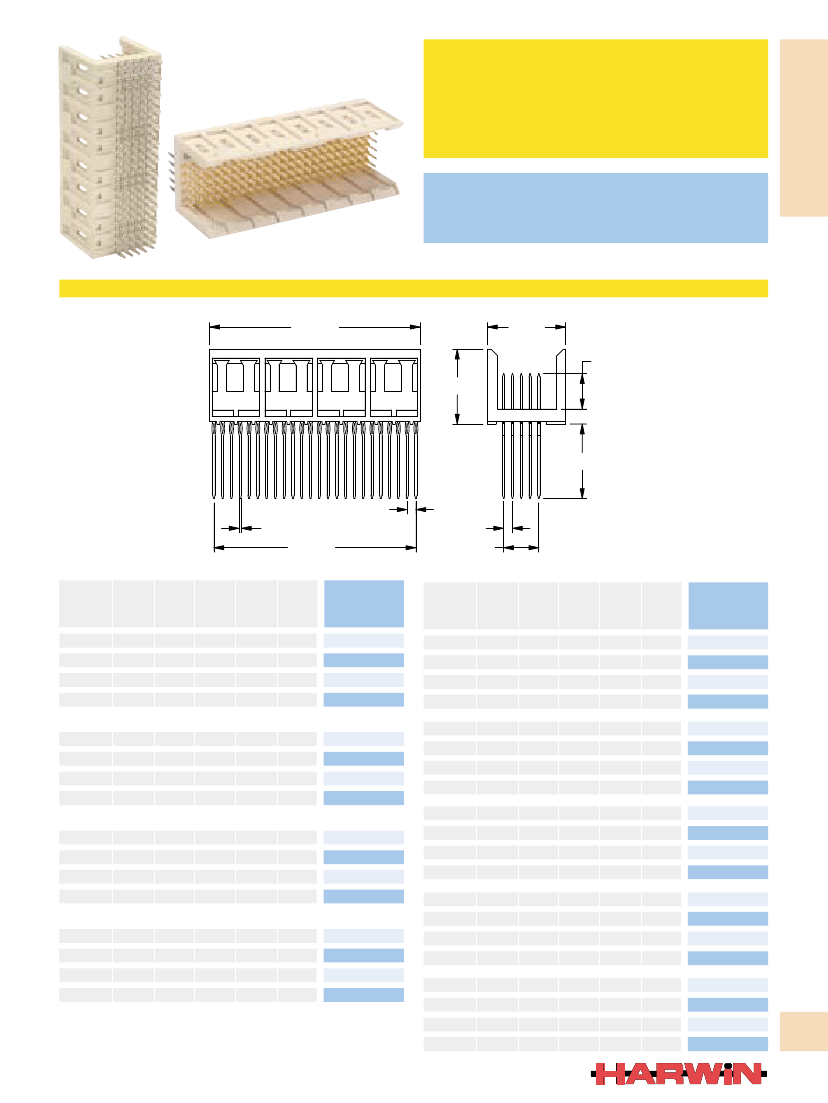

F
UTUREBUS
C
ONNECTORS
M a l e Ve r t i c a l P r e s s F i t 5 - R o w
q
q
q
q
5-Row. 2mm pitch permit high signal density
Modular design guarantees flexibility
Stackable end to end without loss of position
Insertion tooling available. Contact Technical Sales
FUTUREBUS
9
MATING PIN LENGTH 5.00MM - 5.75MM
DIM A
17.80
DIM C
17.05
HARWIN
DIM D
2.00
0.50 SQUARE
DIM B
2.00
8.00
For specific pin type,
see tables below.
Recommended plated through
hole diameter: Ø0.55/0.65mm
No. of No. of
Modules Ways
1
2
4
8
1
2
4
8
1
2
4
8
1
2
4
8
6
12
24
48
6
12
24
48
6
12
24
48
6
12
24
48
A
B
C
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.75
5.75
5.75
5.75
D
4.25
4.25
4.25
4.25
11.80
11.80
11.80
11.80
14.90
14.90
14.90
14.90
4.25
4.25
4.25
4.25
Order
Code
BF-5000622
BF-5001222
BF-5002422
BF-5004822
BF-5010622
BF-5011222
BF-5012422
BF-5014822
BF-5020622
BF-5021222
BF-5022422
BF-5024822
BF-5100622
BF-5101222
BF-5102422
BF-5104822
No. of No. of
Modules Ways
1
2
4
8
1
2
4
8
1
2
4
8
1
2
4
8
6
12
24
48
6
12
24
48
6
12
24
48
6
12
24
48
A
B
C
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
5.75
D
13.60
13.60
13.60
13.60
14.90
14.90
14.90
14.90
15.60
15.60
15.60
15.60
17.00
17.00
17.00
17.00
Order
Code
BF-5110622
BF-5111222
BF-5112422
BF-5114822
BF-5120622
BF-5121222
BF-5122422
BF-5124822
BF-5130622
BF-5131222
BF-5132422
BF-5134822
BF-5140622
BF-5141222
BF-5142422
BF-5144822
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
11.88 10.00
23.88 22.00
47.88 46.00
95.88 94.00
North/South America
Tel: +1 812 542 2540
E-mail: mis@harwin.com
Europe/Middle East
Tel: +44 (0) 23 9237 0451
E-mail: mis@harwin.co.uk
Asia/Pacific
Tel: +65 6779 4909
E-mail: mis@harwin.com.sg

BF-5020622 Related Products

BF-5020622 BF-5021222 BF-5010622 BF-5004822 BF-5011222 BF-5014822 BF-5001222 BF-5002422 BF-5000622
Description Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 60 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 240 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 60 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 240 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 60 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30)
Contact completed and terminated TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100) TIN LEAD (100)
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE
DIN compliance NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0
MIL compliance NO NO NO NO NO NO NO NO NO
Manufacturer's serial number BF-50 BF-50 BF-50 BF-50 BF-50 BF-50 BF-50 BF-50 BF-50
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 5 5 5 5 5 5 5 5 5
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 30 60 30 240 60 240 60 120 30
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
