3090R-560GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3090R-560GS

3090R-560GS: DescriptionGeneral Purpose Inductor, 0.056uH, 2%, 1 Element, Iron-Core, SMD, 1010, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size48KB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

3090R-560GS Overview

General Purpose Inductor, 0.056uH, 2%, 1 Element, Iron-Core, SMD, 1010, CHIP, ROHS COMPLIANT

3090R-560GS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1010
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1010
structure	Epoxy Encapsulated
core material	IRON
DC Resistance	0.135 Ω
Nominal inductance(L)	0.056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	3090R
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.524 mm
Package length	2.54 mm
Package form	SMT
Package width	2.54 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.75 A
self resonant frequency	800 MHz
series	3090
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	50 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

Micro i

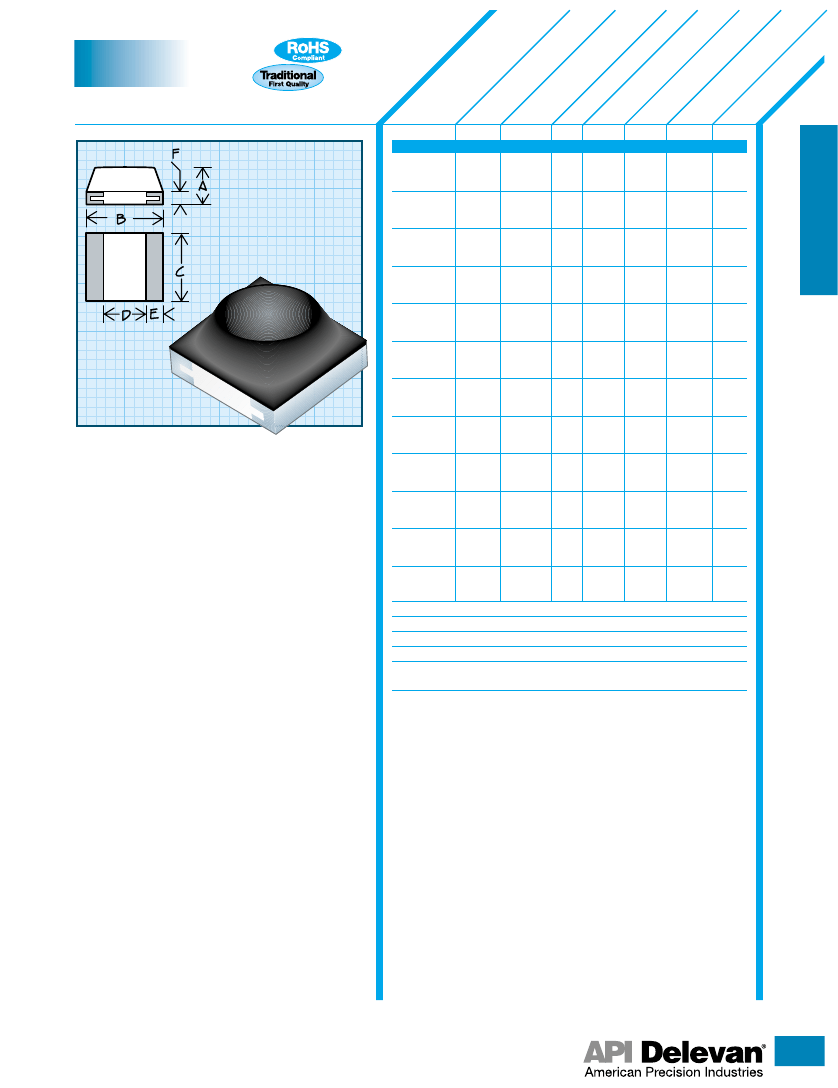

Low Proﬁle Chip Inductors

-100M

-150M

-220M

-330K

-390K

-470K

-560K

-680K

-820K

-101K

-121K

-151K

-181K

-221K

-271K

-331K

-391K

-471K

-561K

-681K

-821K

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

Series

3090R

3090

Physical Parameters

Inches

0.050 Max.

0.100±0.010

0.050 Min.

0.015 Min. (Typ)

0.020 Max. (Typ)

Millimeters

1.27 Max.

2.54±.254

1.27 Min.

0.38 Min. (Typ)

0.51 Max. (Typ)

0.010

0.015

0.022

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.00

1.20

1.50

1.80

2.20

2.70

3.30

3.90

4.70

5.60

6.80

8.20

10.0

(µ

)

MA S

)

XI IST

MU A

RR (OH E

MA E

X. NT

(m RA )

A) TI

SERIES 3090 IRON CORE

± 20%

± 10%

50.0

25.0

7.9

1000

900

800

700

650

510

410

370

330

300

250

220

200

180

160

140

120

100

0.095

0.115

0.140

0.185

0.100

0.110

0.135

0.16

0.19

0.08

0.10

0.12

0.14

0.16

0.20

0.25

0.30

0.36

0.45

0.50

0.60

0.70

1.10

1.20

1.25

1.30

1.50

1.90

2.30

3.00

3.50

4.00

4.50

5.00

890

810

765

640

870

830

750

690

630

970

870

795

765

690

615

550

500

460

410

390

355

330

265

250

245

240

225

200

180

160

145

135

130

120

RF INDUCTORS

Current Rating at 90°C Ambient

35°C Rise

Operating Temperature Range

–55°C to +125°C

Maximum Power Dissipation at 90°C

0.105 W

Core Material

Powdered iron core for improved

temperature stability.

Mechanical Conﬁguration

Units are epoxy

encapsulated. Contact area for reﬂow soldering are

gold plated per MIL-G-45204 Type 1 Grade A.

Internal connections are thermal compression

bonded.

Termination Finish Options

Standard: Gold over Nickel.

For Tin/Lead over Nickel: Add suffix “S” to part

number and allow an additional .010 inch for

maximum height. For RoHS, order 3090R - XXXKS.

Packaging

Tape & reel (8mm): 7" reel, 2000 pieces

max.; 13" reel, 8000 pieces max.

MIL-PRF-83446 (Reference)

for testing methods

only.

Made in the U.S.A.

Optional Tolerances:

J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For further surface ﬁnish information,

refer to TECHNICAL section of this catalog.

Notes 1)

Designed speciﬁcally for reﬂow soldering and other

high temperature processes with metalized edges to exhibit

solder ﬁllet.

Self Resonant Frequency (SRF) values 250 MHz

and above are calculated and for reference only.

4/2005

www

delevan

com

E-mail: apisales@delevan.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814

PAGE

Recommended Resources

Flexible cable or non-flexible overview

Increase gain 20dB preamplifier

can FM radio

Luminous doorbell circuit

Buzzer replacement circuit for low light lamp

Subsonic fan speed control remote control circuit

DIY single chip water lamp: [media=x,500,375]http://v.youku.com/v_show/id_XNTYyMjQ0ODcy.html[/media] I made a few sets myself, does anyone need them? qq55900352 [[i] This post was last edited by sisi on 2013-6-5 18:47[/i]]...; sisi 51mcu

The new Keysight DSOX1102G oscilloscope is upgraded to 200M: Bought this brand new, unpacked it just a week ago, powered it up just a few times, upgraded it to 200M, turned on all options, installed a better one, and now I'm selling this one as it's idle. I'm p...; ylyfxzsx Buy&Sell

Where can I find ready-made GPRS terminal processor products?: I want to make a wireless distributed communication device. I have a wireless DTU, but I don't want to develop the terminal processor, that is, the modular computer, by myself. I want to buy a ready-m...; 张皓翔 Embedded System

How to make a TV antenna amplifier: [i=s]This post was last edited by fish001 on 2017-8-27 22:12[/i] [font=宋体][size=3][color=#000] [/color][/size][size=4][color=#000000] [/color][/size][/font][size=4][color=#000000][font=宋体]Here is an a...; fish001 Analogue and Mixed Signal

Altera Reference Design -1536-Point FFT for 3GPP Long Term Evolution: 3GPP Long Term Evolution (LTE) is an ongoing project to improve the universal mobile telecommunication system (UMTS) standard to handle future requirements of mobile phones. The main targets include h...; xiaoxin1 FPGA/CPLD

Operations on different variable types: [i=s] This post was last edited by ljj3166 on 2015-11-17 13:08 [/i] I was DIYing a DDS here a few days ago and encountered a very interesting problem. I wrote it here for everyone to see [code] unsign...; ljj3166 Programming Basics
