TECHNICAL DATA SHEET
ADAPTOR

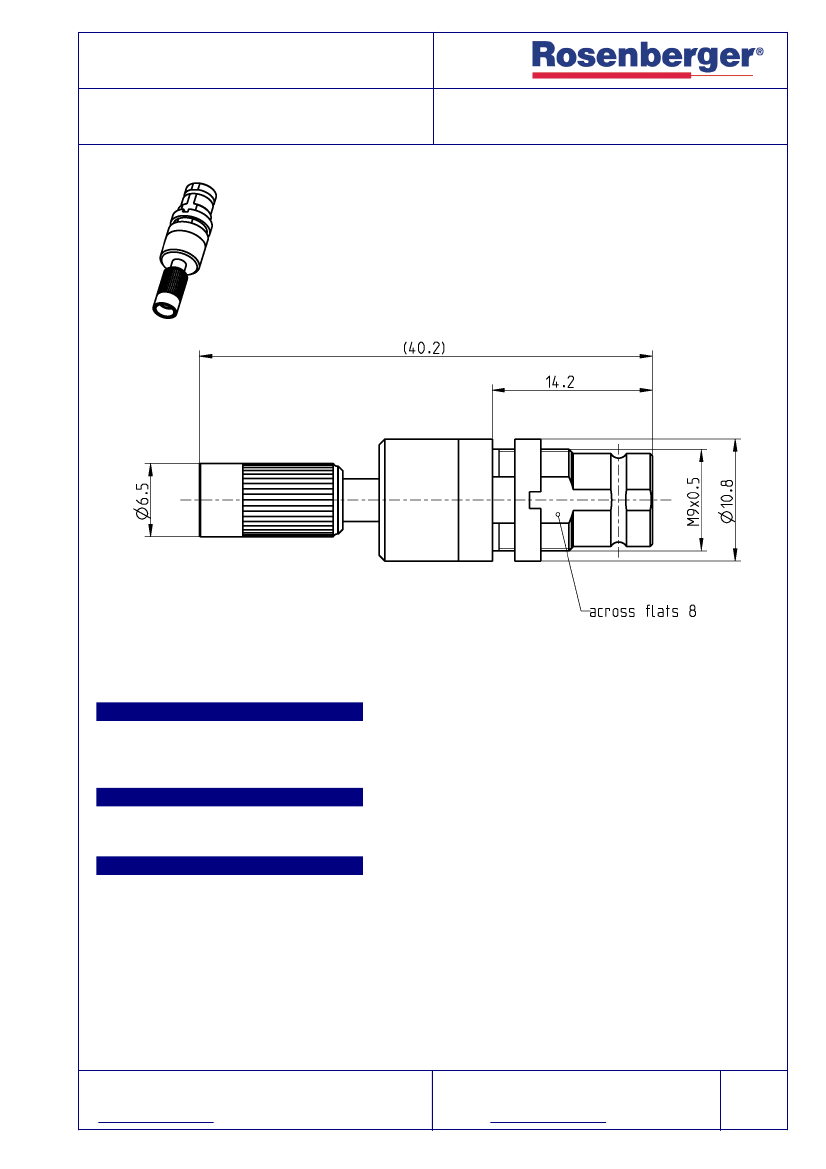

1.0/2.3 PLUG SCREW ON – 1.6/5.6 III JACK
34S188-K00L3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
1.0/2.3 side:
1.6/5.6 III side:
CECC 22 230, DIN 47297
CECC 22 240
Documents
Panel piercing
B 27
Material and plating
Connector parts
Center contact 1.0/2.3 side
Center contact 1.6/5.6 III side
Outer contact 1.0/2.3 side
Outer contact 1.6/5.6 III side
Body
Coupling nut 1.0/2.3 side
Dielectric
RF_35/12.04/3.0
Material
Beryllium copper
Beryllium copper
Beryllium copper
Brass
Brass
Brass
PTFE
Plating
Gold, min. 1.27
Gold, min. 1.27
Gold, min. 1.27
Gold, min. 0.15
Nickel, 2.5-5 m
Nickel, 2.5-5 m
m,
m,
m,
m,
over
over
over
over
chemical nickel
chemical nickel
nickel
chemical nickel
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
1.0/2.3 PLUG SCREW ON – 1.6/5.6 III JACK
Electrical data
Impedance
Frequency
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
50
Ω,
1.0/2.3 side;
DC to 500 MHz
75
Ω,
1.6/5.6 III side
34S188-K00L3
≥
1x10
3
MΩ
≤
4 mΩ, 1.0/2.3 side;
≤
4 mΩ, 1.6/5.6 III side
≤
2.5 mΩ, 1.0/2.3 side;
≤
2 mΩ, 1.6/5.6 III side
750 V rms
250 V rms
≥
90 dB up to 1 GHz
Mechanical data
Mating cycles
Center contact captivation: axial
Engaging and disengaging force
Coupling mechanism retention force
1.0/2.3 side
≥
500
≥
10 N
0.9 N to 10 N
≥
200 N
1.6/5.6 III side
≥
500
≥
30 N
2.2 N to 12 N (screw-on, slide-on)
18 N to 50 N (quick-lock)
N/A
Environmental data
Temperature range
Climatic class
-40°C to +85°C
IEC 60068-2-1 40/85/21
IEC 60068-2-2
IEC 60068-2-3
IEC 60068-2-6
10 Hz to 2000 Hz, 100m/s²
Vibration
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
9.7 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
19/04/05
Approved
Chr. Entsfellner
Date
22/04/05
Rev.
a00
Engineering change number
04-0130
Name
Rong Fang
Date
19/04/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
