KS9210 datasheet, PDF - EEWORLD Datasheet

KS9210: DescriptionCMOS INTEGRATED CIRCUIT; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，28 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

KS9210 Overview

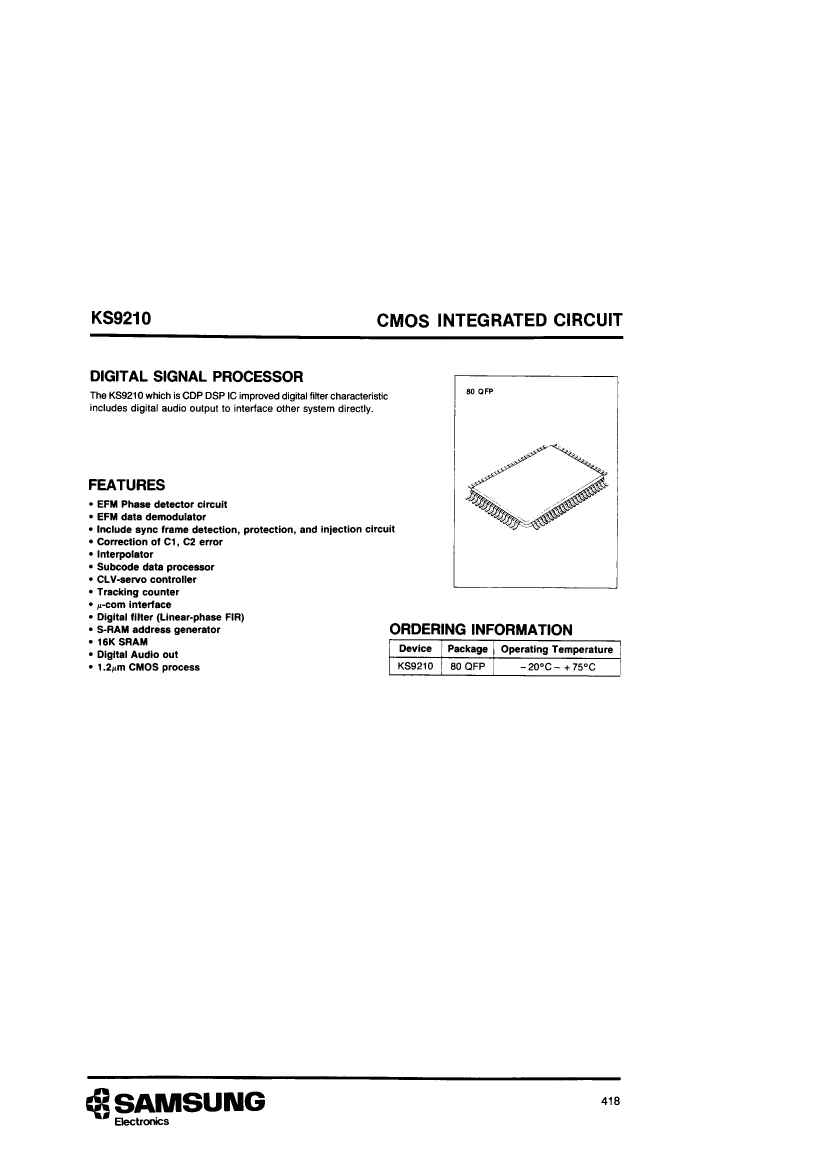

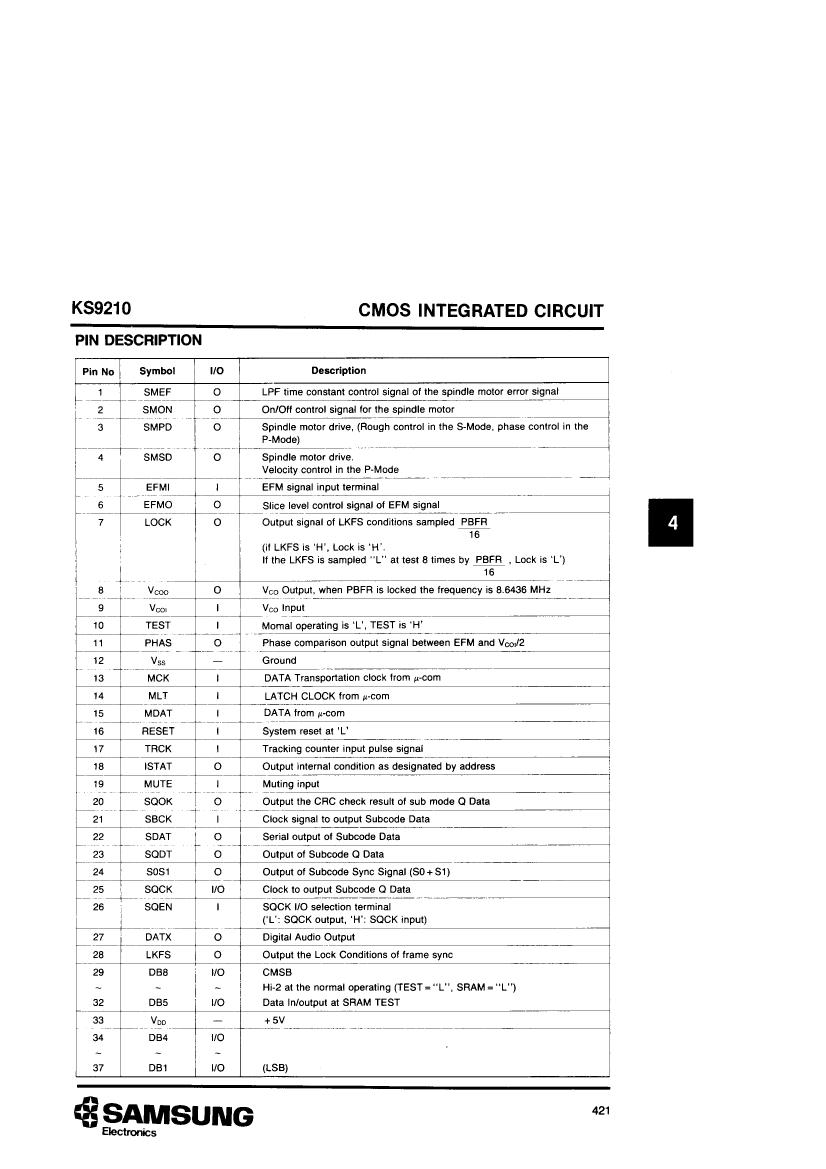

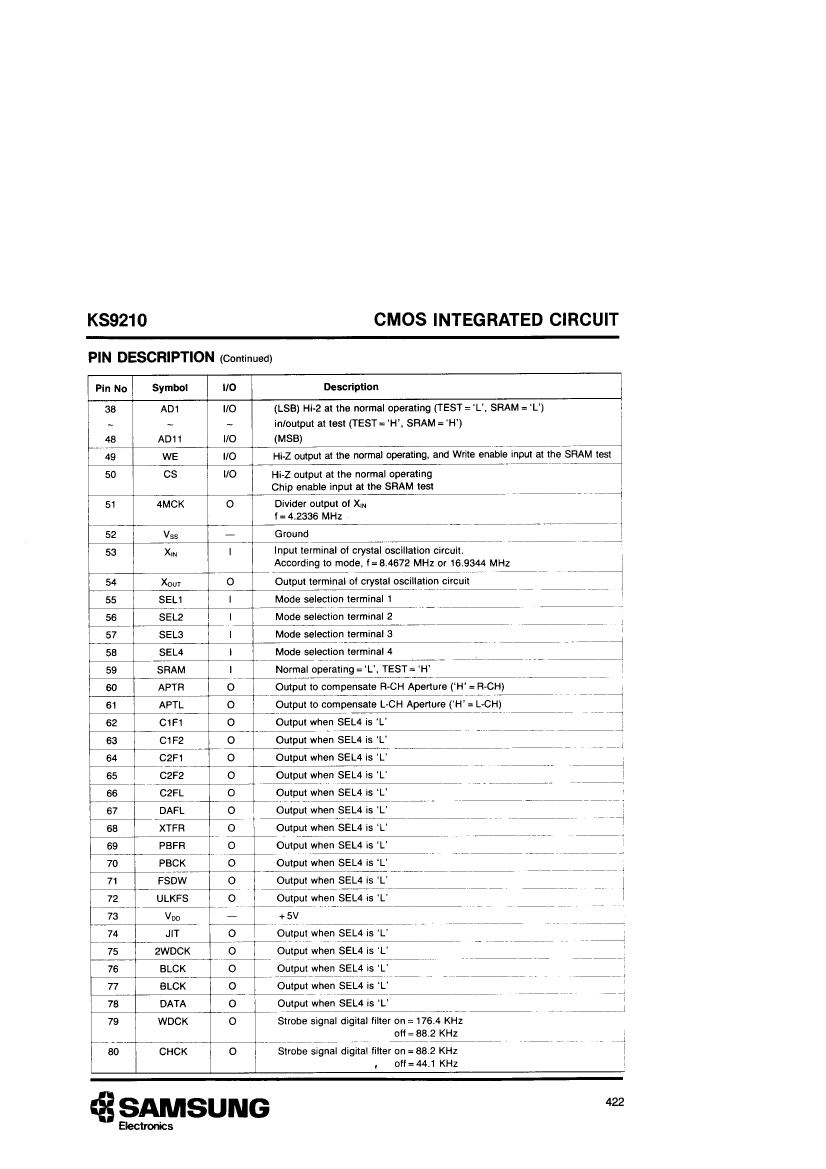

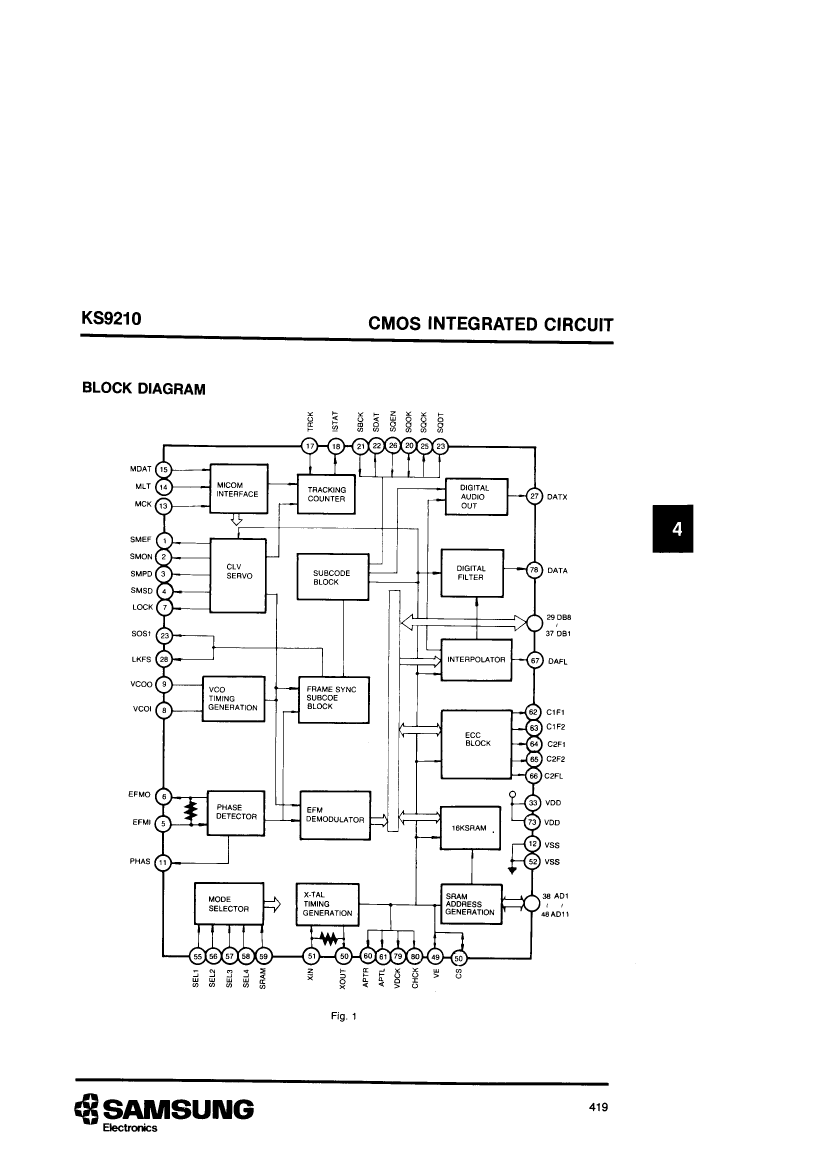

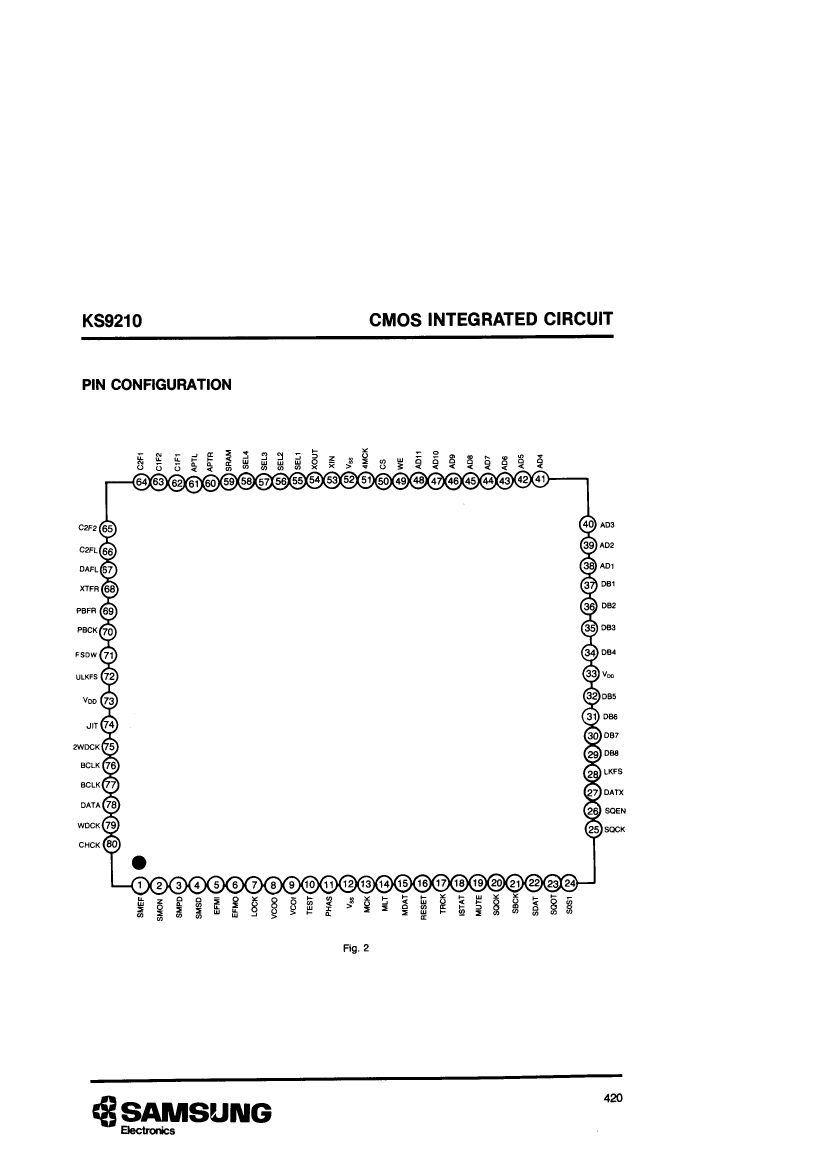

CMOS INTEGRATED CIRCUIT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	QFP, QFP80,.7X.9,32
Contacts	80
Reach Compliance Code	compli
Address bus width	11
barrel shifter	NO
bit size	16
boundary scan	NO
maximum clock frequency	16.9344 MHz
External data bus width	8
Format	FIXED POINT
JESD-30 code	R-PQFP-G80
JESD-609 code	e0
low power mode	NO
Number of terminals	80
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	16384
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
