Part Numbers
520-210-002
520-210-003
520-220-001
516-290-500
516-290-542
516-290-520
516-290-590
516-290-591
2 circuit housing
3 circuit housing
Retention clip
Wire hole
Wire wrap
(0.61x1.27x14.4mm)
PCB tail
Loose crimp contacts
Crimp contacts on reel (1,800)
Contact code (order separately):
Prices on request for:
1.
Housings supplied with contacts assembled
2.
Housings with cable tails crimped & assembled

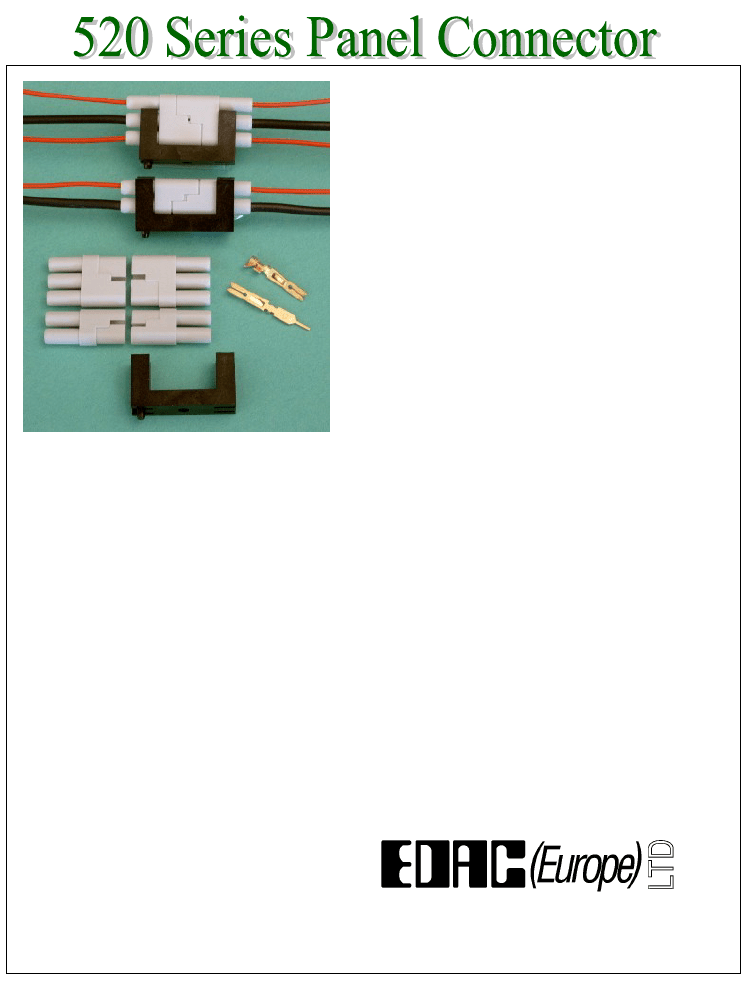

FEATURES
Utilises EDAC gold-plated, hermaphroditic, contacts producing ultra-reliable connection with four gas-tight
mating surfaces: A top quality, yet highly cost-effective, interconnect product.
Board mount or in-line contact tail options.
Identical insulator for plug and receptacle enabling one part number to be ordered/stocked
2 or 3 way options.
Clip available to neatly secure mated connector to panel when used in-line.

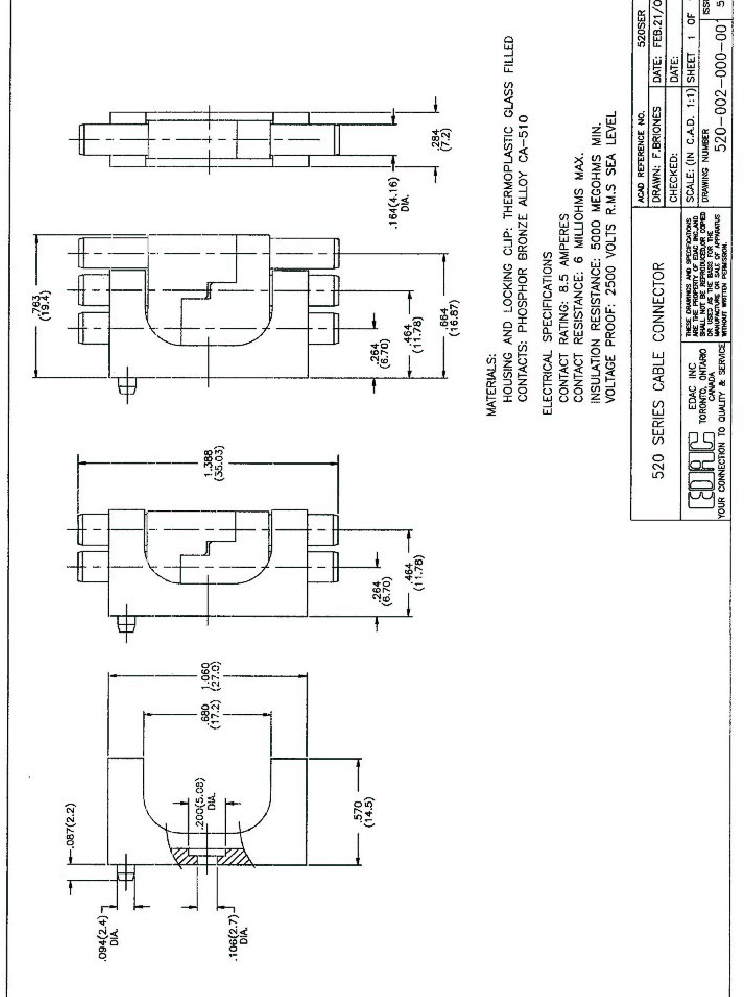

SPECIFICATIONS
Materials:
Housing and locking clip – Glass-filled thermoplastic
Contacts – Phosphor bronze alloy, all-over gold plate to 10u”
Electrical
Contact rating – 8.5 amperes
Contact resistance – 6 milliohms max.
Insulation resistance – 5,000 megohms min.
Voltage proof – 2,500 volts R.M.S. sea level
EDAC (Europe) Ltd., Brick Close, Kiln Farm,
Milton Keynes, MK11 3JB, United Kingdom
Tel: +44 (0) 1908 569333
Fax: +44 (0) 1908 569444
sales@edac.co.uk
www.edac.net
