DCR1003SF14 datasheet, PDF - EEWORLD Datasheet

DCR1003SF14: DescriptionSilicon Controlled Rectifier, 1200000mA I(T), 1400V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size346KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

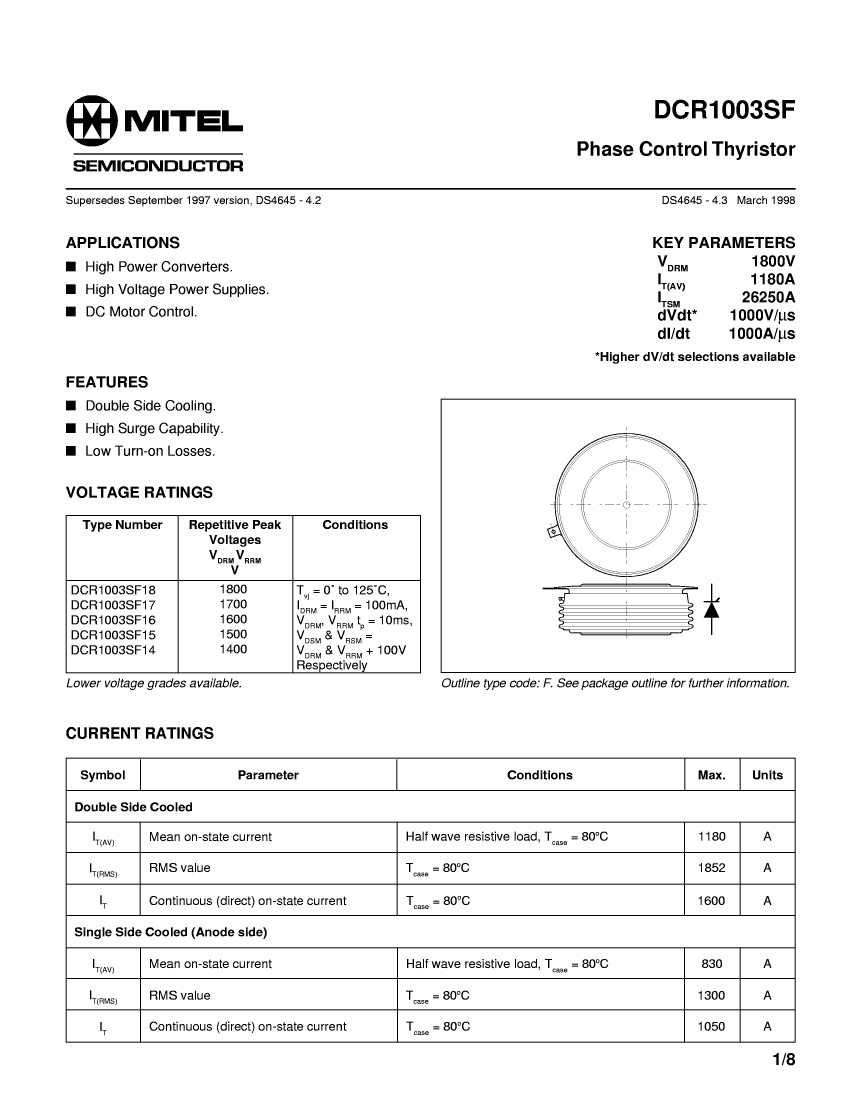

DCR1003SF14 Overview

Silicon Controlled Rectifier, 1200000mA I(T), 1400V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99

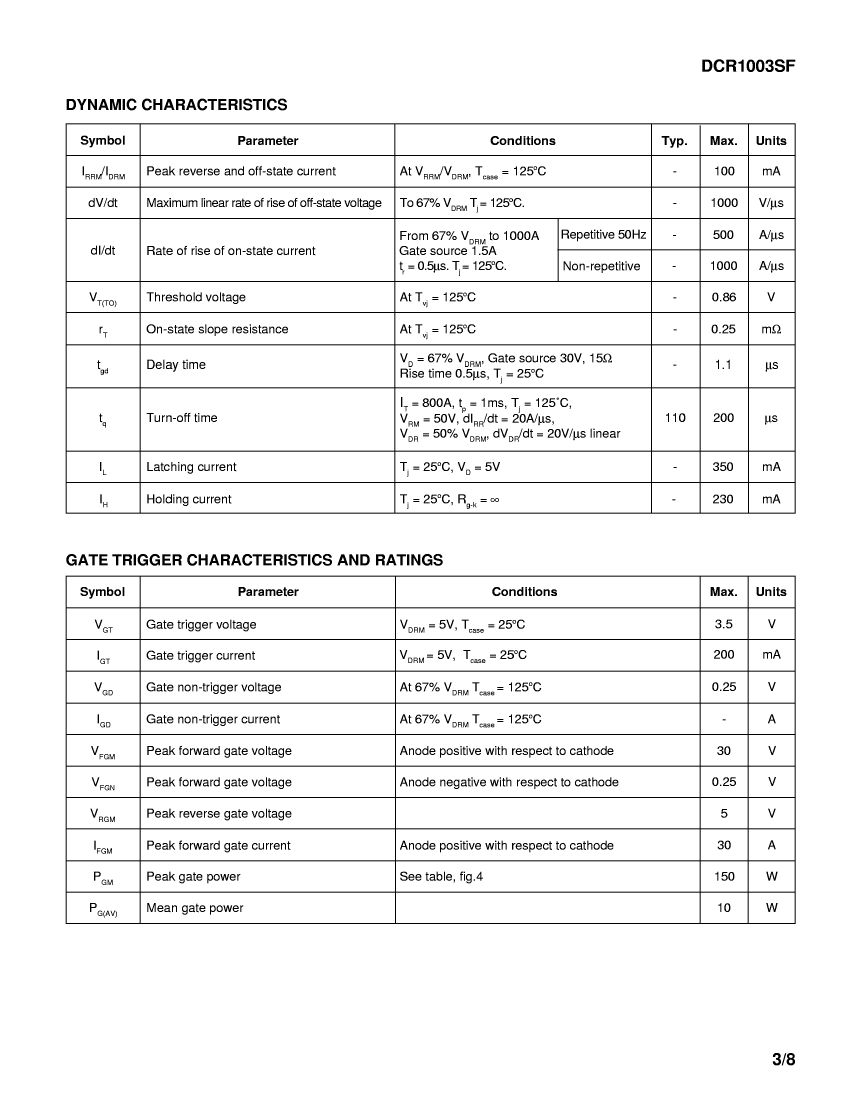

Nominal circuit commutation break time	110 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3.5 V
Maximum holding current	230 mA
Maximum leakage current	100 mA

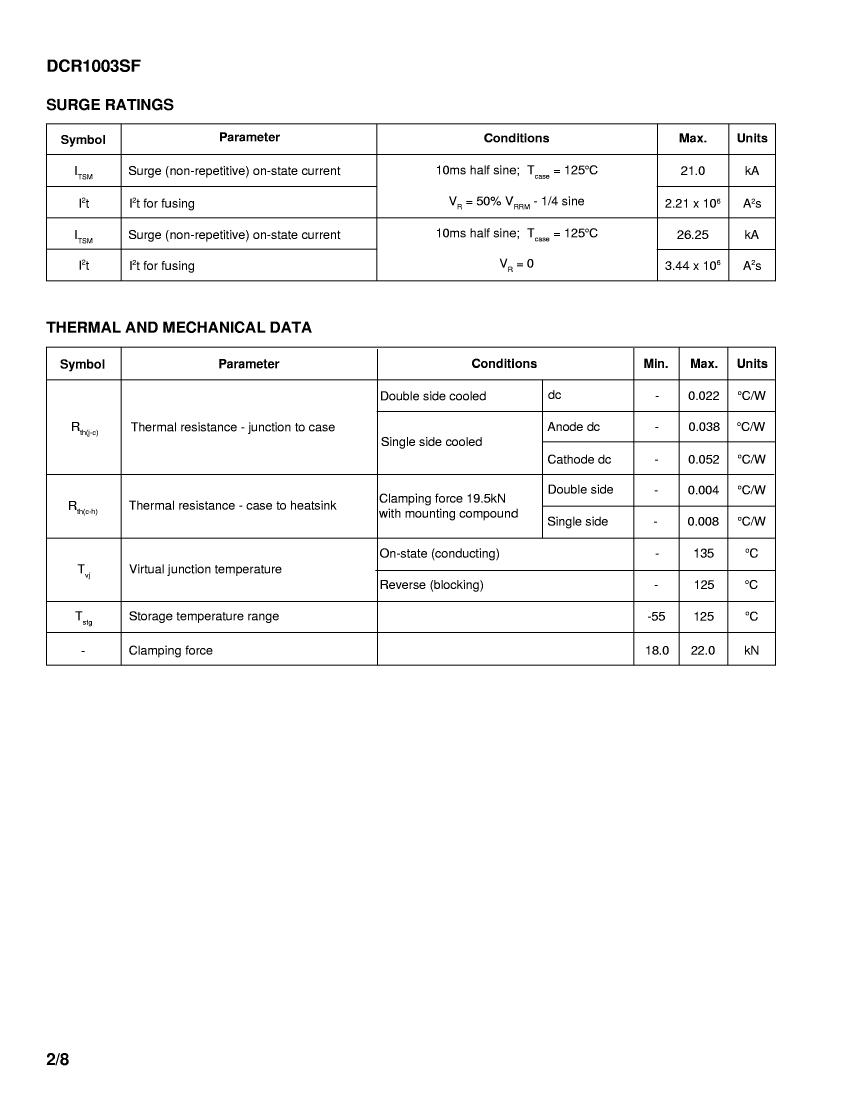

On-state non-repetitive peak current	21000 A

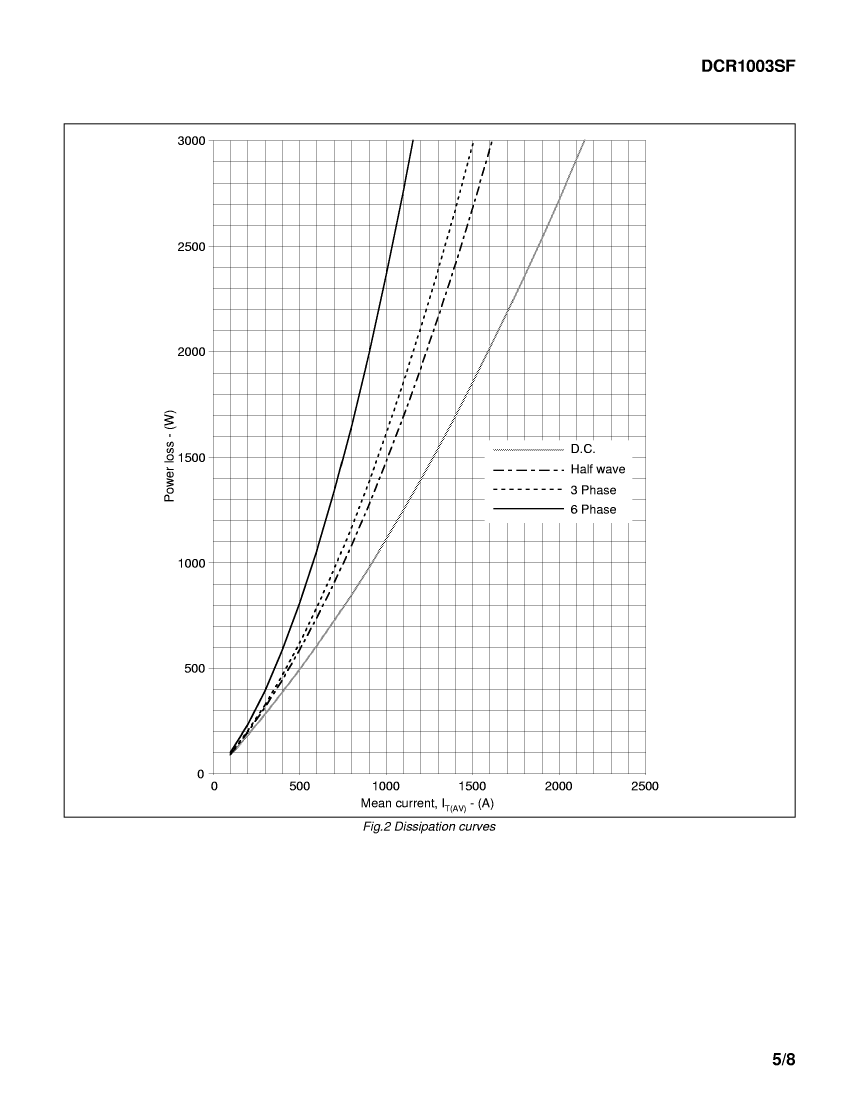

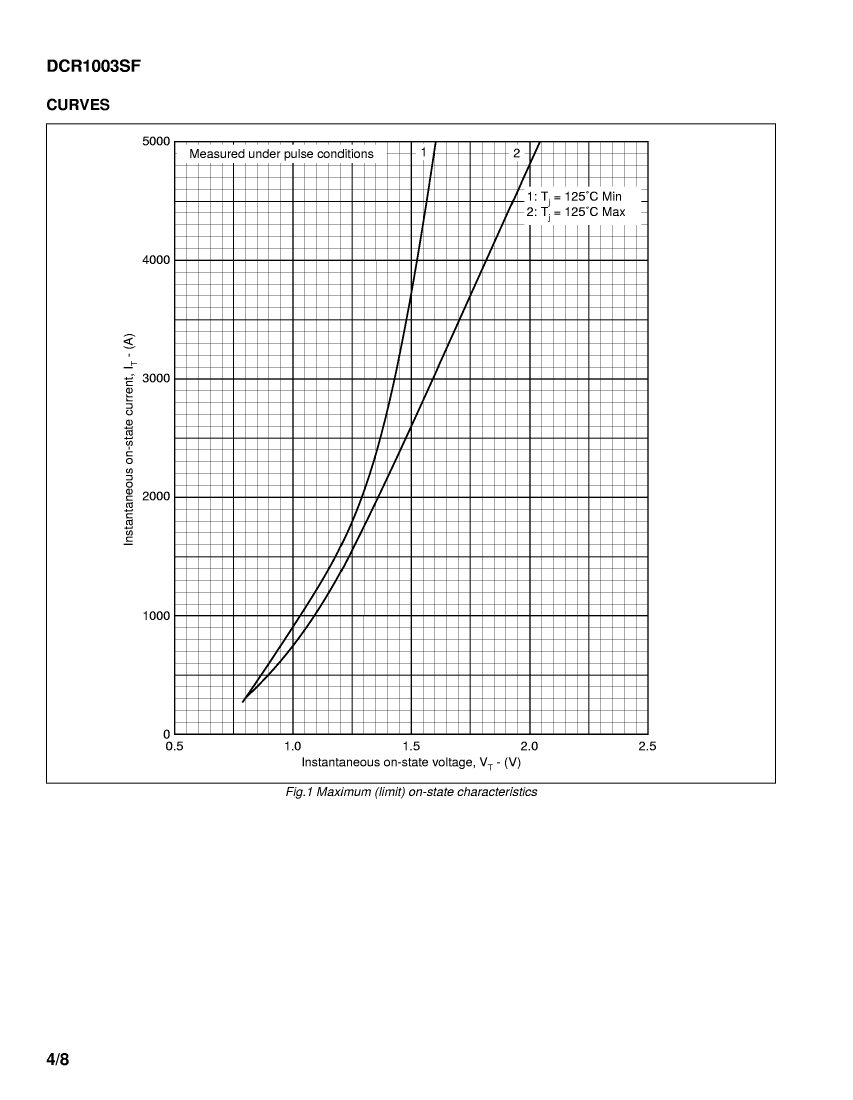

Maximum on-state current	1200000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	1400 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	DCR1003SF14	DCR1003SF18	DCR1003SF15	DCR1003SF17	DCR1003SF16
Description	Silicon Controlled Rectifier, 1200000mA I(T), 1400V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 1800V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 1500V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 1700V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 1600V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	110 µs	110 µs	110 µs	110 µs	110 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Maximum holding current	230 mA	230 mA	230 mA	230 mA	230 mA
Maximum leakage current	100 mA	100 mA	100 mA	100 mA	100 mA
On-state non-repetitive peak current	21000 A	21000 A	21000 A	21000 A	21000 A
Maximum on-state current	1200000 A	1200000 A	1200000 A	1200000 A	1200000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	1400 V	1800 V	1500 V	1700 V	1600 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1
