CR400EL24 datasheet, PDF - EEWORLD Datasheet

CR400EL24: DescriptionSilicon Controlled Rectifier, 400000mA I(T), 1200V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size170KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

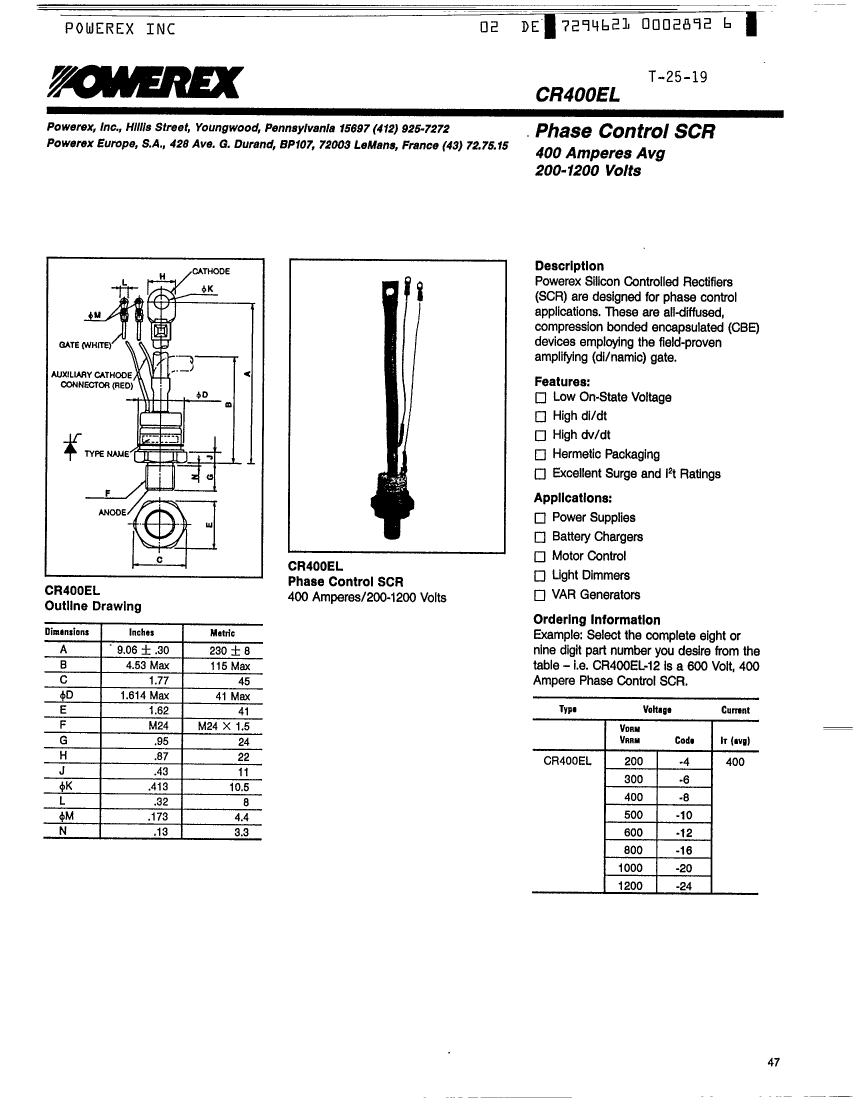

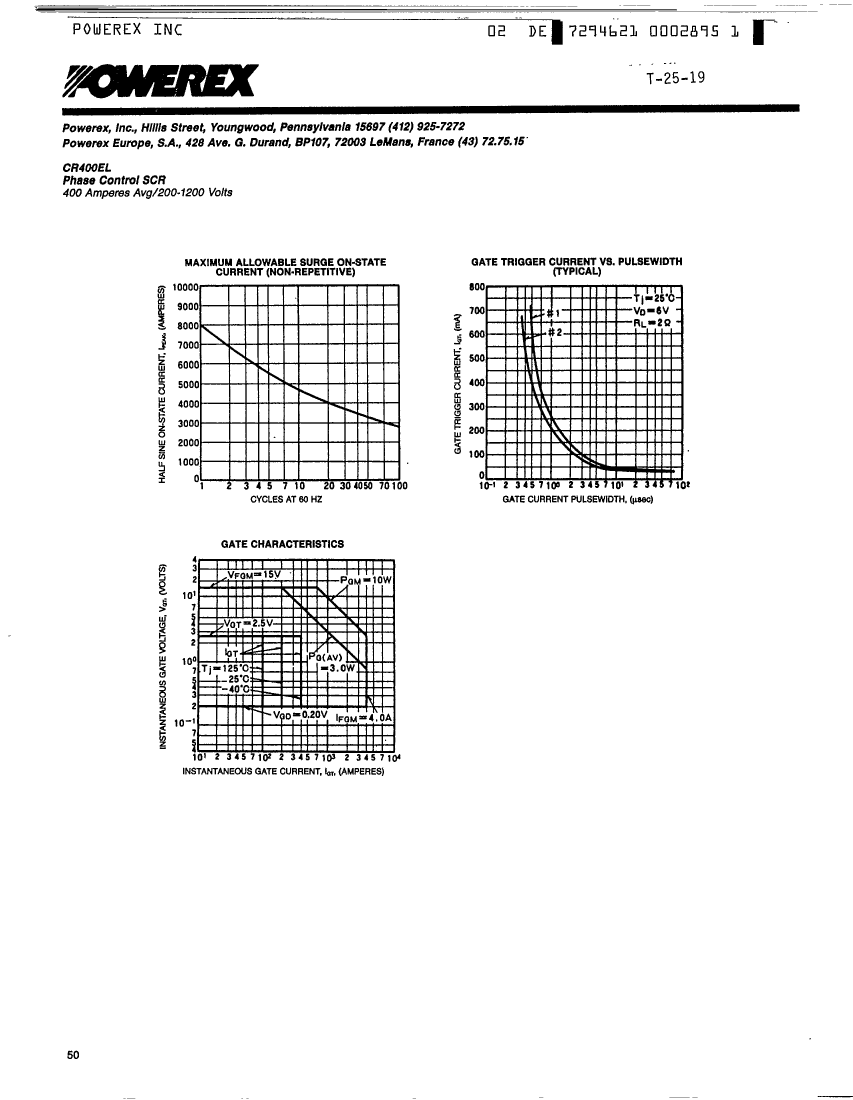

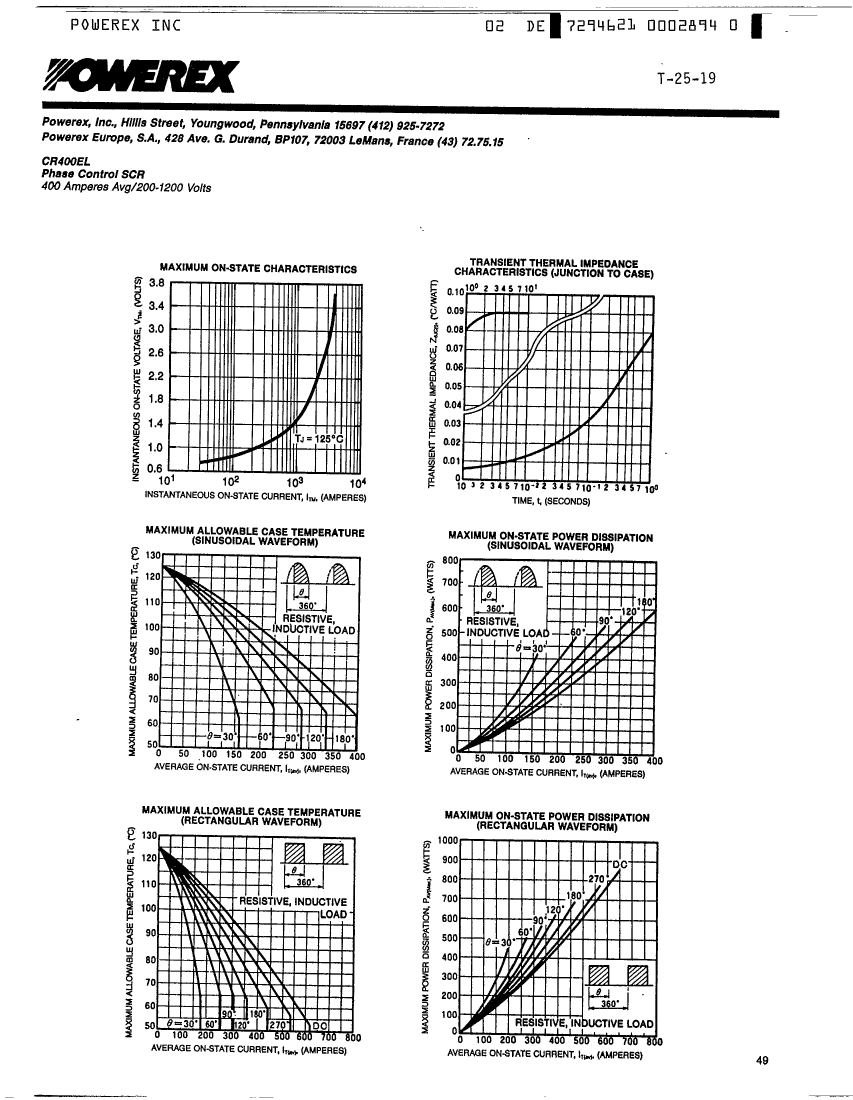

CR400EL24 Overview

Silicon Controlled Rectifier, 400000mA I(T), 1200V V(DRM)

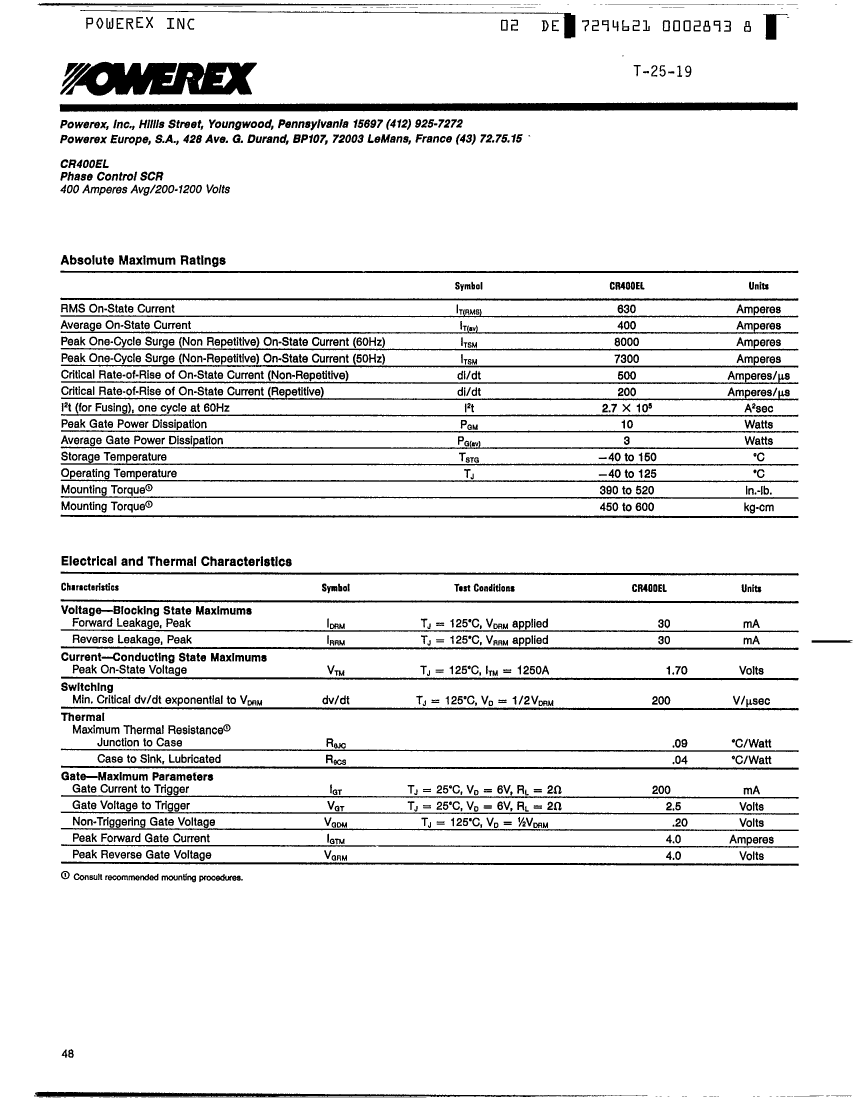

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	2.5 V
Maximum leakage current	30 mA
On-state non-repetitive peak current	8000 A
Maximum on-state current	400000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	1200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	CR400EL24	CR400EL6	CR400EL8	CR400EL4	CR400EL20	CR400EL12	CR400EL16	AC0201FK-1097R6L
Description	Silicon Controlled Rectifier, 400000mA I(T), 1200V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 300V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 400V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 200V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 1000V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 400000mA I(T), 800V V(DRM)	THICK FILM CHIP RESISTORS AUTOMOTIVE GRADE
Maker	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	-
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	-
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	-
Maximum leakage current	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	-
On-state non-repetitive peak current	8000 A	8000 A	8000 A	8000 A	8000 A	8000 A	8000 A	-
Maximum on-state current	400000 A	400000 A	400000 A	400000 A	400000 A	400000 A	400000 A	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-40 °C	-
Off-state repetitive peak voltage	1200 V	300 V	400 V	200 V	1000 V	600 V	800 V	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	-
