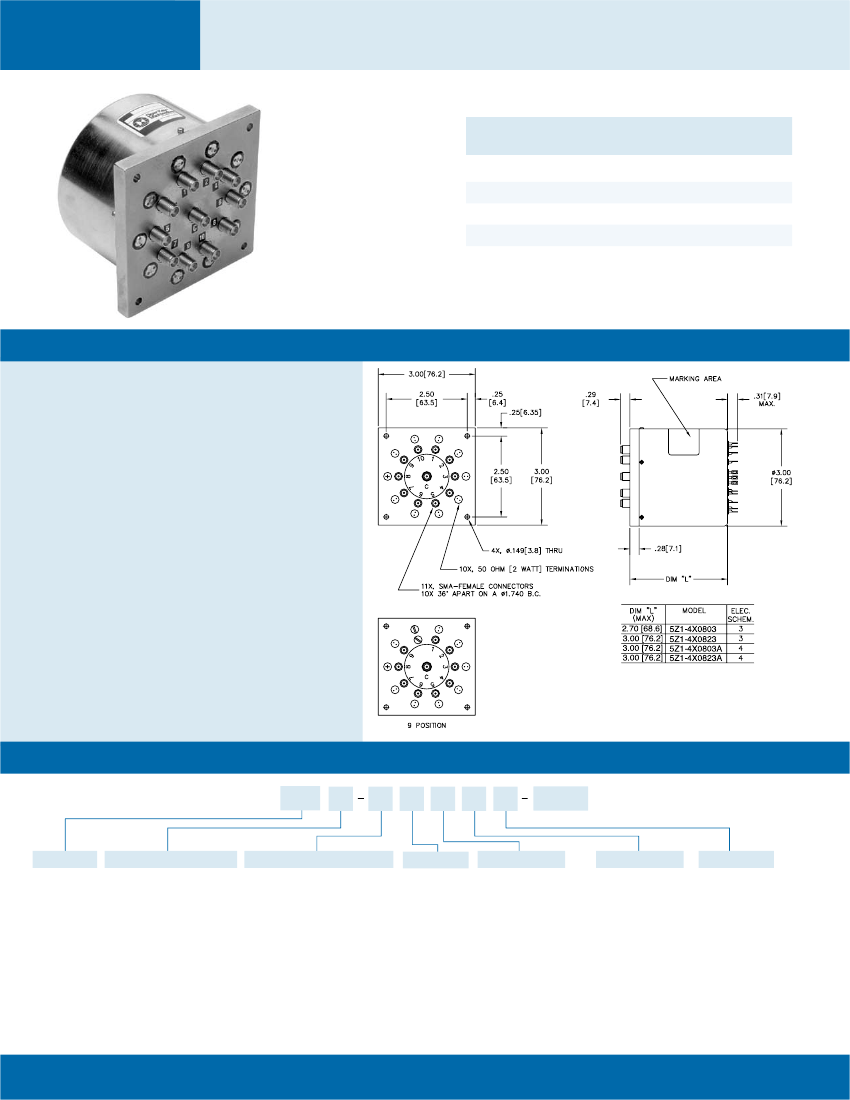

SP9T-SP10T
591-5A1 Latching Terminated | SMA
RF Characteristics
DC-18 GHz
Low/Medium Power
1M Life Cycles
Frequency
GHz
DC-4
4-8
8-12.4
12.4-18
VSWR
(max)
1.20
1.30
1.40
1.60
Isolation
dB (min)
70
65
60
55
Ins. Loss
dB (max)
0.20
0.30
0.40
0.60
Note: Performance may vary depending on selected options
Specifications
Operating Voltage
:
12 Vdc (11-14 Vdc)
24 Vdc (20-28 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max. @ nom. Vdc & 25°C)*:
12 Vdc
440 mA
24 Vdc
225 mA
28 Vdc
190 mA
Switching Time:
20 ms maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended “T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50G, 1/2 Sine, 11 ms
Nominal Weight*:
15 oz. (425 g.)
* Performance and weight varies depending on selected options.
Mechanical
5A1-430823 Shown
For Electrical Schematic, see page # 3-21
Part Number Selector
591
J
4
2
08
03
A
ROHS
Family
591 = SP9T
5A1 = SP10T
Special Options
J = 15 or 25 Pin ‘D’ Connector
P = Power Plug
R = (-) Com
S = Epoxy Seal
T = -55º to +85º C
Actuator
4 = Latching Self Cutoff
Coil Voltage
2 = 12 Vdc
3 = 28 Vdc
8 = 24 Vdc
9 = 15 Vdc
Connectors
08 = SMA Female
Indicators
03 = No Indicators
2W Terminations
23 = SPST Indicators
2W Terminations
Circuit Options
A = TTL High
E = BCD Decoding
Note: TTL option includes suppression diode. Other options may be available
and all combinations may not be possible. Please consult with factory.
3-16
Dow-Key Microwave
www.dowkey.com
800.266.3695
AS9100/ISO-9001: 2000 Certified
