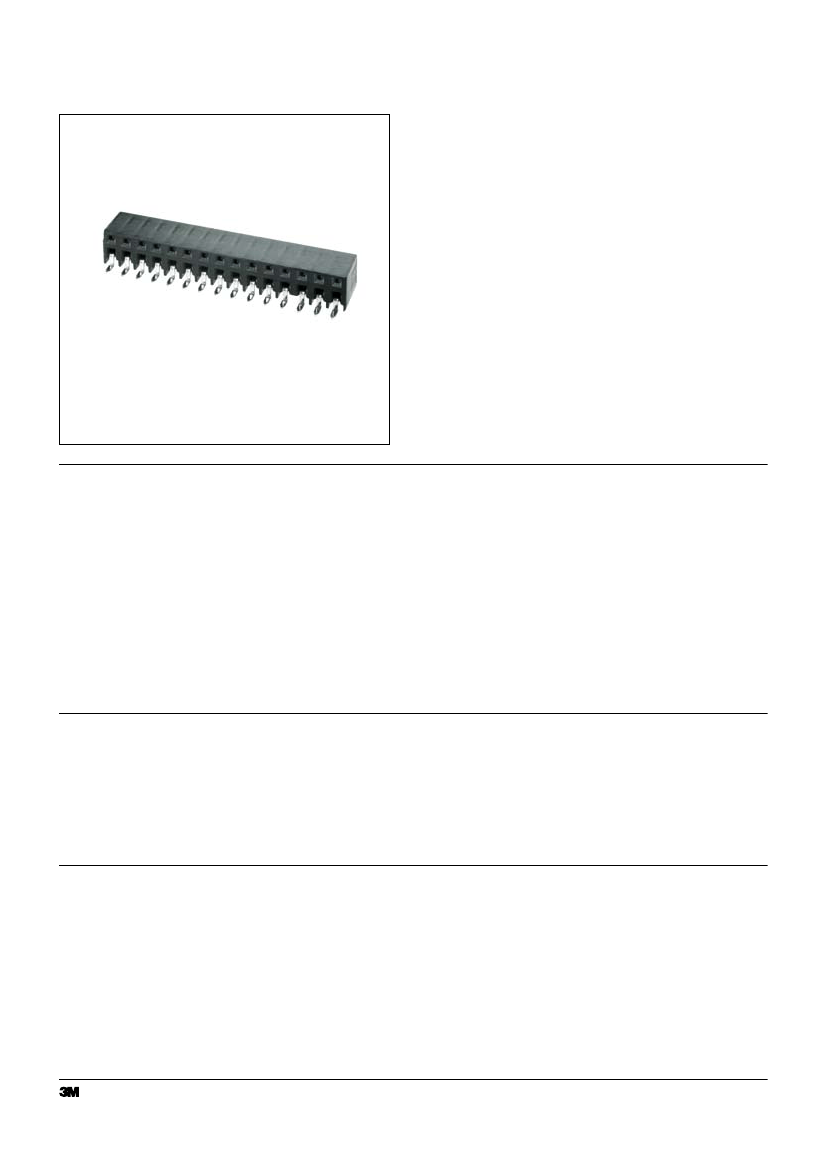

3M
™
Boardmount Socket
2 mm x 2 mm Right Angle, Surface Mount
950 Series
•
Maximizes use of PC board space
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
Dual row design, 6–50 pins
•
Mates with pin-strip header products
•
See Regulatory Information Appendix for chemical
compliance information
Date Modified: April 24, 2009
TS-2167-D
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [100 µ"] Nickel
0.25 µm [10 µ"] Gold
1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤
20 mOhm
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Boardmount Socket
2 mm x 2 mm Right Angle, Surface Mount
950 Series

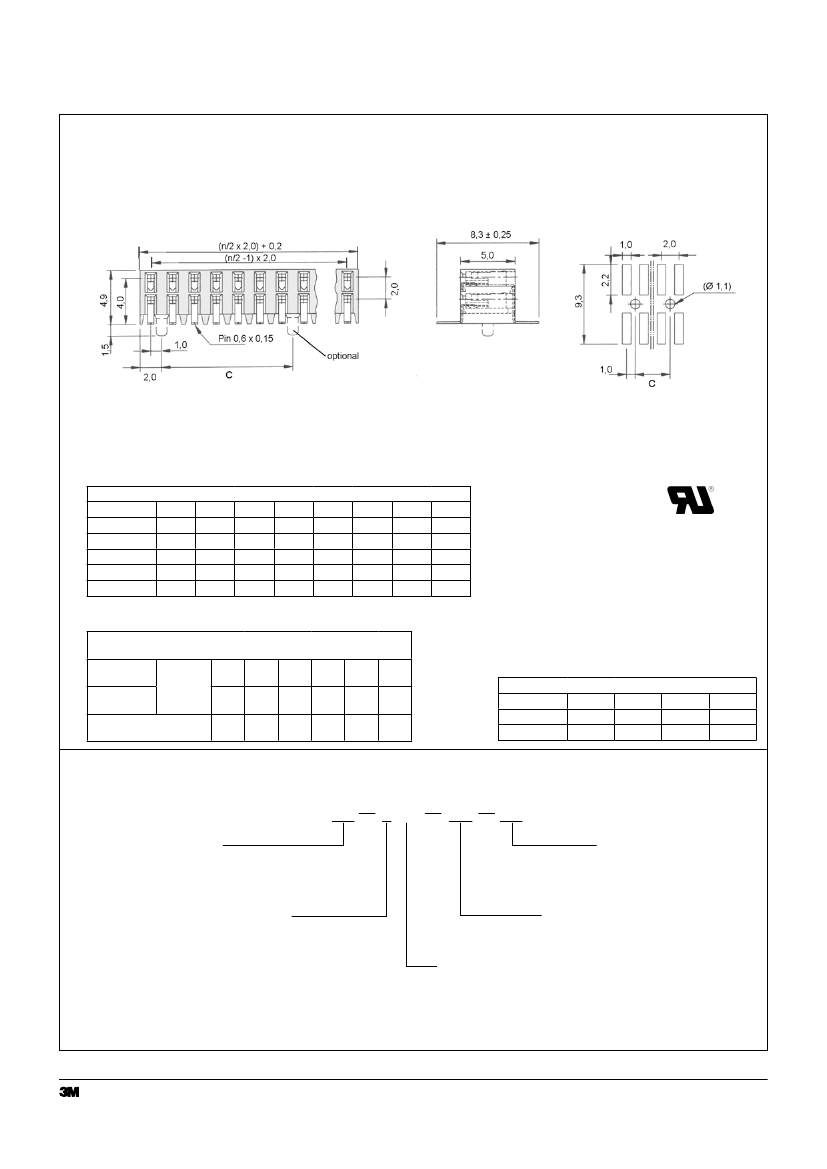

PCB-Layout
Contacts
C
Contacts
C
Contacts
C
22
14.0
38
30.0
24
16.0
40
32.0
Dimensions (mm)
10
12
14
4.0
4.0
6.0
26
28
30
18.0
20.0
22.0
42
44
46
34.0
36.0
38.0
16
8.0
32
24.0
48
40.0
18
10.0
34
26.0
50
42.0
20
12.0
36
28.0
Tape & Reel Option
9504xx-8200
9504xx-8220
Contact
Quantity
6
–
16
8–14 16–20 22–30 32–44 46–50
10–14
24
16
32
–
44
–
56
–
72
n = No. of Contacts
Tape Width
[mm]
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9504XX
Contact Quantity:
06–50 Pins
82X0
AR
XX
Packaging:
TP = Tube
TR = Tape & Reel
Tail Style:
8 = Right Angle,
Surface Mount
Plating:
AR = Selective Au 0.25 µm / Sn
Ref Appendix E1 & C1
Board Location Features:
0 = None
2 = with Board Loc. Posts
(6–16 Contacts / others on Request)
TS-2167-D
Sheet 2 of 2
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Through-Board Socket
2 mm Single Row, Straight, Dual Entry, Surface Mount
•
Maximizes use of PC board space
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
Single row design, 4–40 pins
•
Minimized PC Board stacking heights
•
Mates with pin headers for board stacking
953 Series
applications
•
See Regulatory Information Appendix for chemical
compliance information
Date Modified: April 24, 2009
TS-2166-C
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [100 µ"] Nickel
0.25 µm [10 µ"] Gold
1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤
20 mOhm
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Through-Board Socket
2 mm Single Row, Straight, Dual Entry, Surface Mount
953 Series

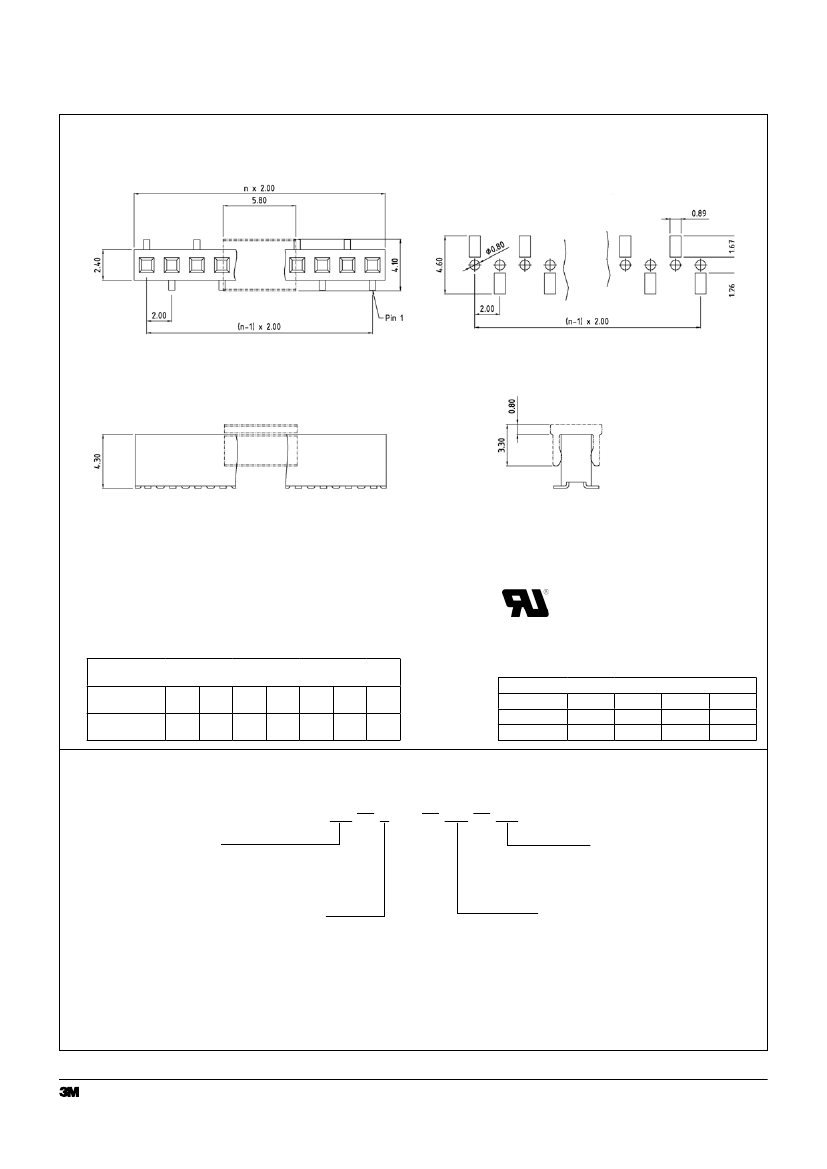

PCB-Layout
Tape & Reel Option
Contact
Quantity
Tape Width
[mm]
4–8
24
9–10 11–15 16–21 22–28 29–36 37–40
32
44
56
72
88
104
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9531XX
Contact Quantity:
04–40 Pins
2000
AR
XX
Packaging:
TP = Tube
PT = Tube with Pad
PR = Tape & Reel with Pad
Tail Style:
2 = Straight, Surface Mount
Plating:
AR = Selective Au 0.25 µm / Sn
Ref Appendix E1 & C1
TS-2166-C
Sheet 2 of 2
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
