SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1143, Rev. -
37SPA020/A
Green Products
Power Surface Mount Schottky Rectifier
(20V, 30Amp)
Applications:
●
Switching power supply
●
Redundant power subsystems
●
Reverse battery protection
●
Converters
●
Many other high current AC/DC power supplies
Features:
•
•
•
•
•
•
•
•
•
150℃ T
J
operation
Low reverse leakage current
High surge capacities
Low forward voltage drop
High frequency operation
Low profile surface mount package
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

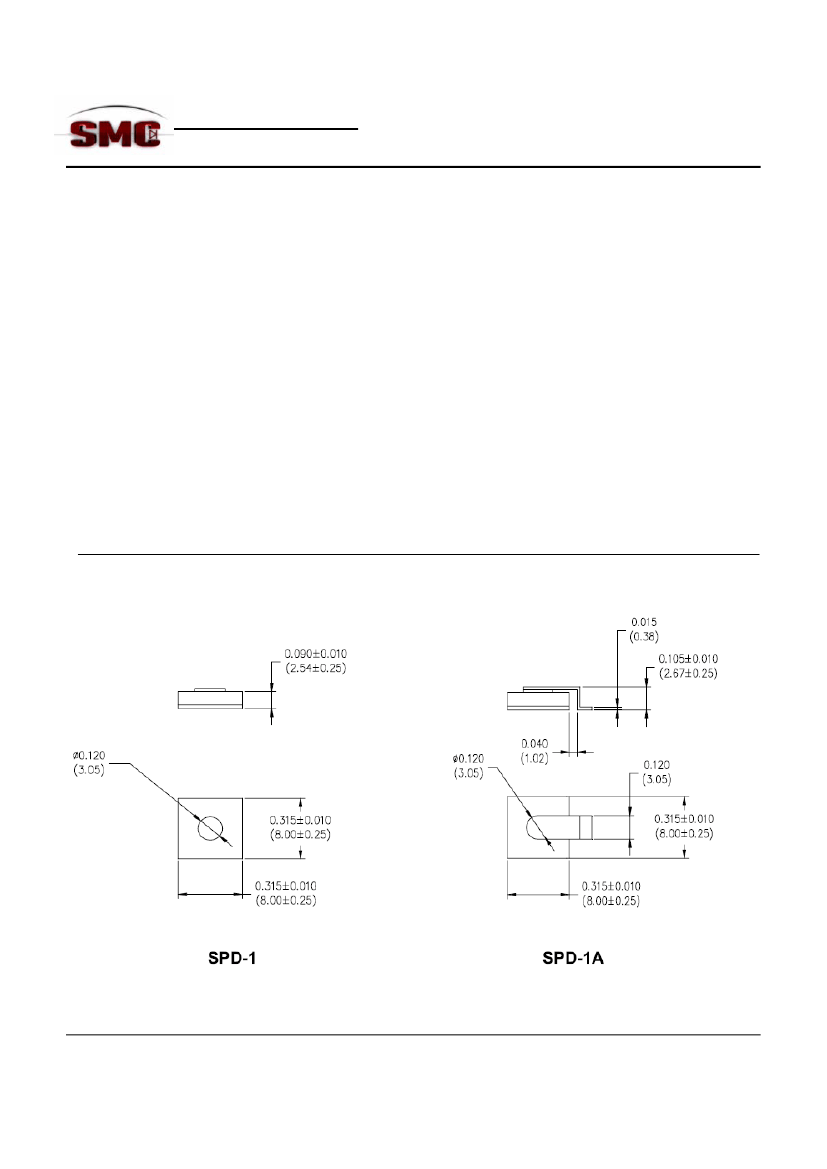

Mechanical Dimensions: In Inches / mm
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1143, Rev. -
37SPA020/A
Green Products
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max.
Average
Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Non-Repetitive
Avalanche
Energy
Repetitive Avalanche Current
Symbol
V
RWM
I
F(AV)
I
FSM
E
AS
I
AR
Condition
-
50% duty cycle, rectangular wave
form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=2.9A,L=6.5mH
Current decaying linearly to zero in
1
μsec
Frequency limited by T
J
max. V
A
=1.5×V
R
typical
Max.
20
30
570
27.3
2.9
Units
V
A
A
mJ
A

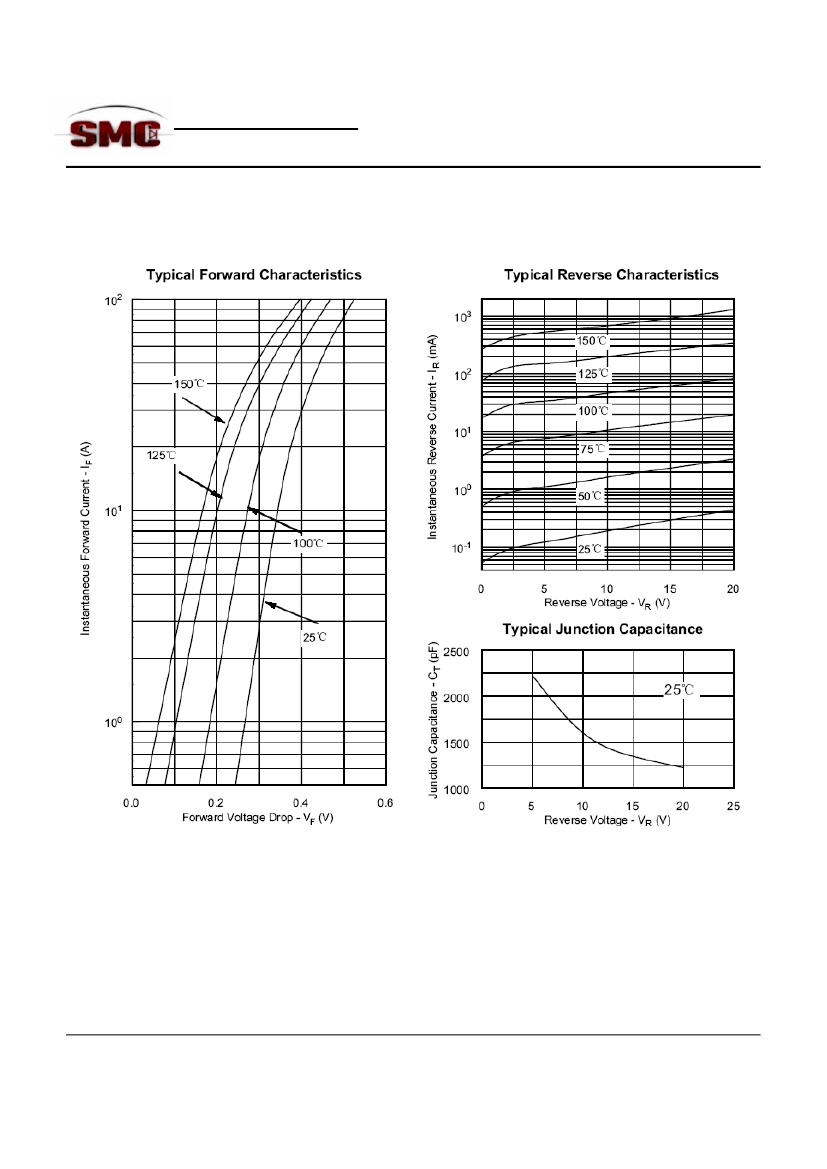

Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop*
Max. Reverse Current*
Symbol
V
F1
V
F2
I
R1
I
R2
Max. Junction Capacitance
C
T
*
Pulse Width < 300µs, Duty Cycle <2%
Condition
@ 30A, Pulse, T
J
= 25
°C
@ 30A, Pulse, T
J
= 125
°C
@V
R
= 20V, Pulse,
T
J
= 25
°C
@V
R
= 20V, Pulse,
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
=50mV(p-p)
Max.
0.45
0.32
4.0
440
2700
Units
V
V
mA
mA
pF
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
Case Style
Symbol
T
J
T
stg
R
θJC
Condition
-
-
DC operation
SPD-1/A
Specification
-55 to +150
-55 to +150
0.50
Units
°C
°C
°C/W
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
