315-13-120-41-003100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 315-13-120-41-003100

315-13-120-41-003100: DescriptionIC Socket, SIP20, 20 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size85KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

315-13-120-41-003100 Overview

IC Socket, SIP20, 20 Contact(s), ROHS COMPLIANT

315-13-120-41-003100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	SIP20
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4
Number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

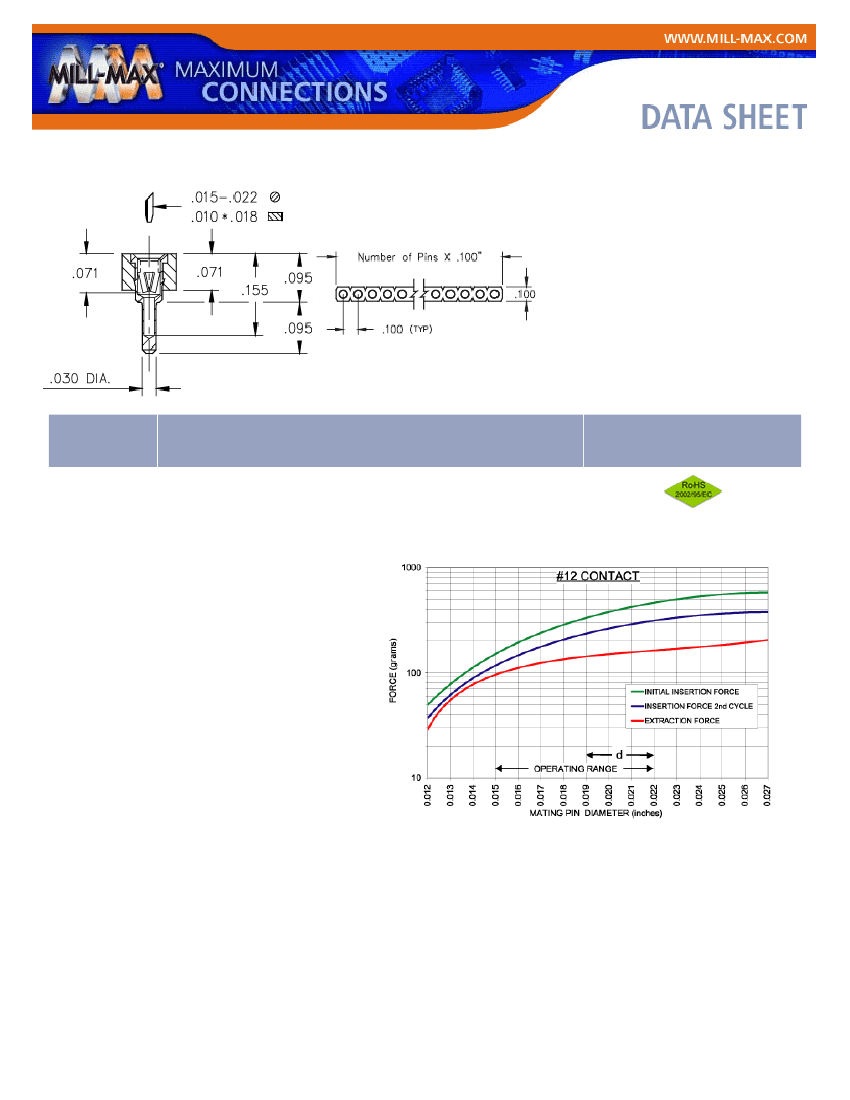

Product Number: 315-13-120-41-003100

Description:

Interconnect Socket

.100 Grid; Low Profile Socket

Ultra Low Profile

Single Row

Through Hole

Accepts .015-.022" Leads

Plating Code:

Shell Plating:

10 " Gold over 100 " Nickel

Inner Contact Plating:

30 " Gold over 50 " Nickel

Pins

Mill-Max

Part

Number

315-13-120-41-003100

RoHS

Compliant

CONTACT:

Contact Used: #12, Standard 4 Finger Contact

Current Rating =

3 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200

ºC

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet – Last Modified 6/19/2008
