78997-002HLF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 78997-002HLF

Preview

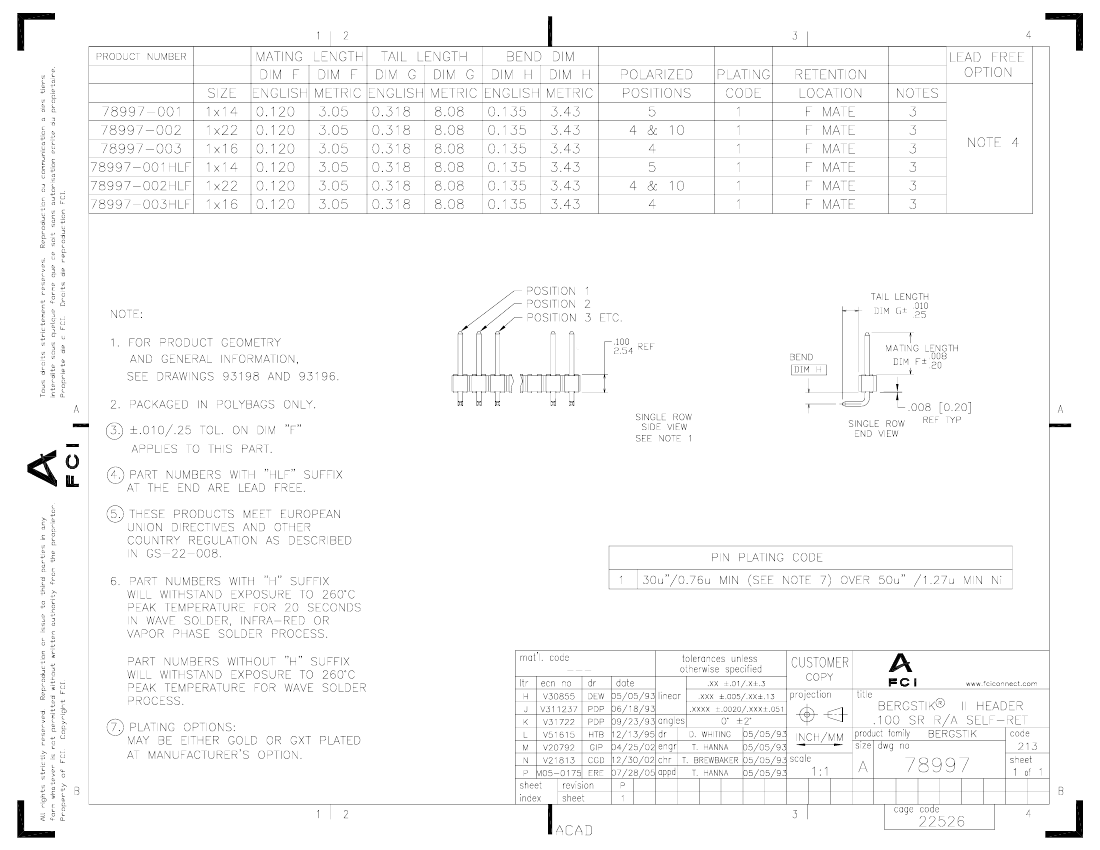

78997-002HLF: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

78997-002HLF Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

78997-002HLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact completed and terminated	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	78997
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

PDM: Rev:P

STATUS:

Released

Printed: Dec 01, 2010

.

78997-002HLF Related Products

	78997-002HLF	78997-001	78997-001HLF	78997-002	78997-003	78997-003HLF
Description	Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL	NICKEL PALLADIUM GOLD (30) OVER NICKEL/GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	78997	78997	78997	78997	78997	78997
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	14	14	22	16	16

Recommended Resources

Electromechanical control QX3-13 automatic Y-△ starter circuit

Simple absolute value operation circuit

Mobile phone charger power conversion circuit

3～120V regulated power supply circuit

Computer motherboard circuit diagram 815 3_32

Clever use of LM386 as sine wave oscillator
