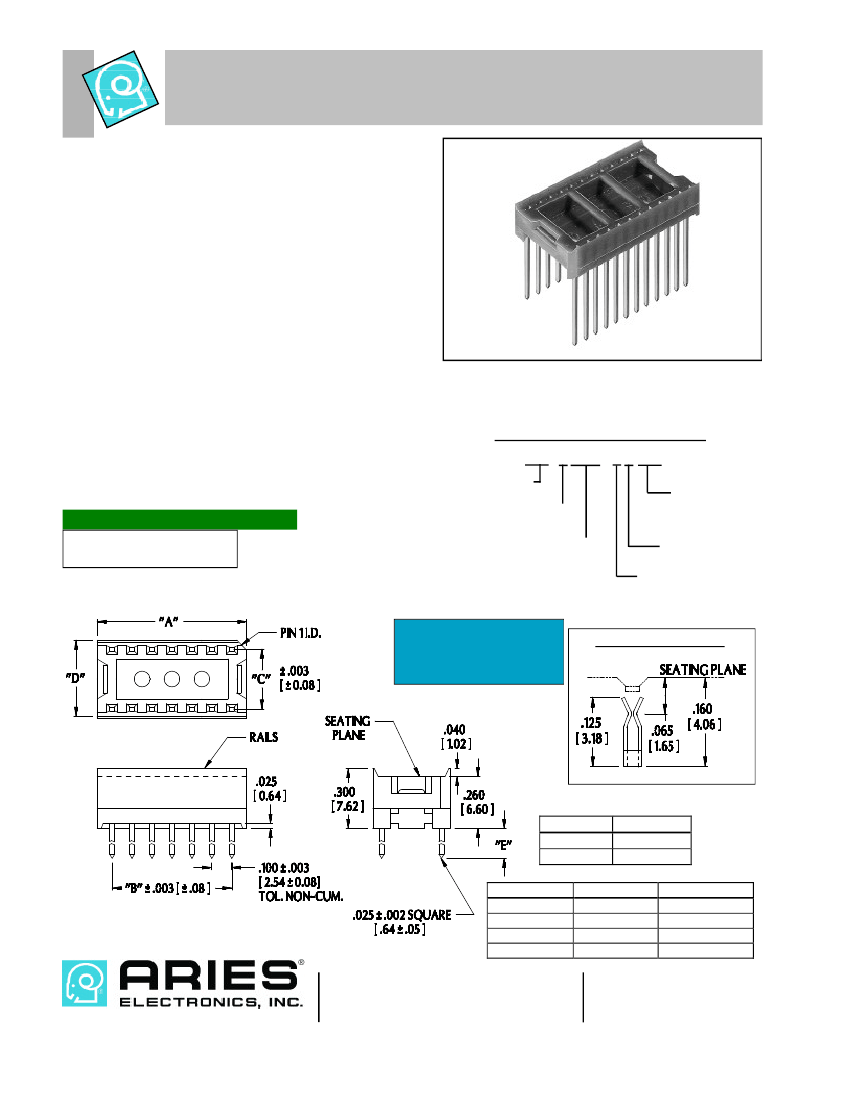

Series 501 Standard DIP Sockets
with Wire Wrap Bifurcated Contacts
FEATURES:
• Standard DIP Sockets are available with solder tail or wire
wrap pins, all with bifurcated contacts. Consult Data
Sheet No. 12004 for solder tail pins.
• Aries offers these standard DIP sockets in more sizes
than any other manufacturer.
SPECIFICATIONS:
• Standard body material is UL 94-HB Glass-filled Nylon.
•
High temperature body material is black UL 94V-0 4/6
Nylon
.
• Bifurcated contacts are Grade A spring-tempered
Phosphor Bronze per QQ-B-750.
• Contact plating is either 100µ [2.54µm] min. Tin per MIL-
T-10727 or 10µ [.25µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290.
• Contact current rating=1.5 Amps.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51],
round leads up to .020 [.51] in diameter.
• Socket accepts lead lengths from seating plane from
.075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.045 ± .002 [1.12 ± .05]. dia.
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - X 5 0 1 - X X X X
Optional Suffix:
No. of pins
(see table)
Row-to-row spacing:
2: ”C”=.200 [5.08]
3: “C”=.300 [7.62]
Series
4: “C”=.400 [10.16]
6: “C”=.600 [15.24]
WR=Without
rails
V0=UL 94V-0
plastic
Plating:
0=Tin
1=Gold
2=2 level wire wrap
3=3 level wire wrap
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Consult Data Sheet No.
12004 for standard DIP
sockets with solder tail
bifurcated contacts.
CONTACT DETAIL
Wire wrap
2 level
3 level
Centers “C”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Length “E”
.410 [10.41]
.690 [17.52]
Available Sizes
8, 10
8, 14-20
22
8-24, 28-40, 48
Width “D”
.290 [7.36]
.390 [9.90]
.490 [12.45]
.690 [17.54]
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
12005
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
