Datasheet> All Categories > The connector> socket> 822073-3

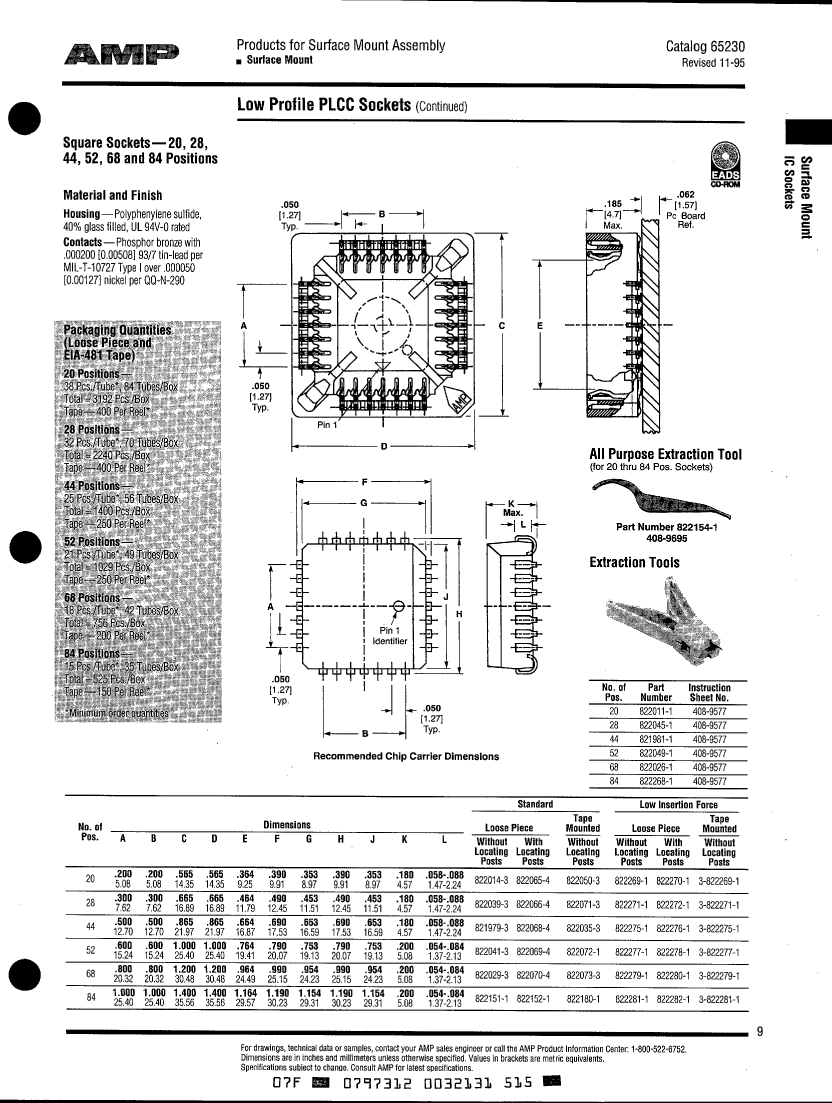

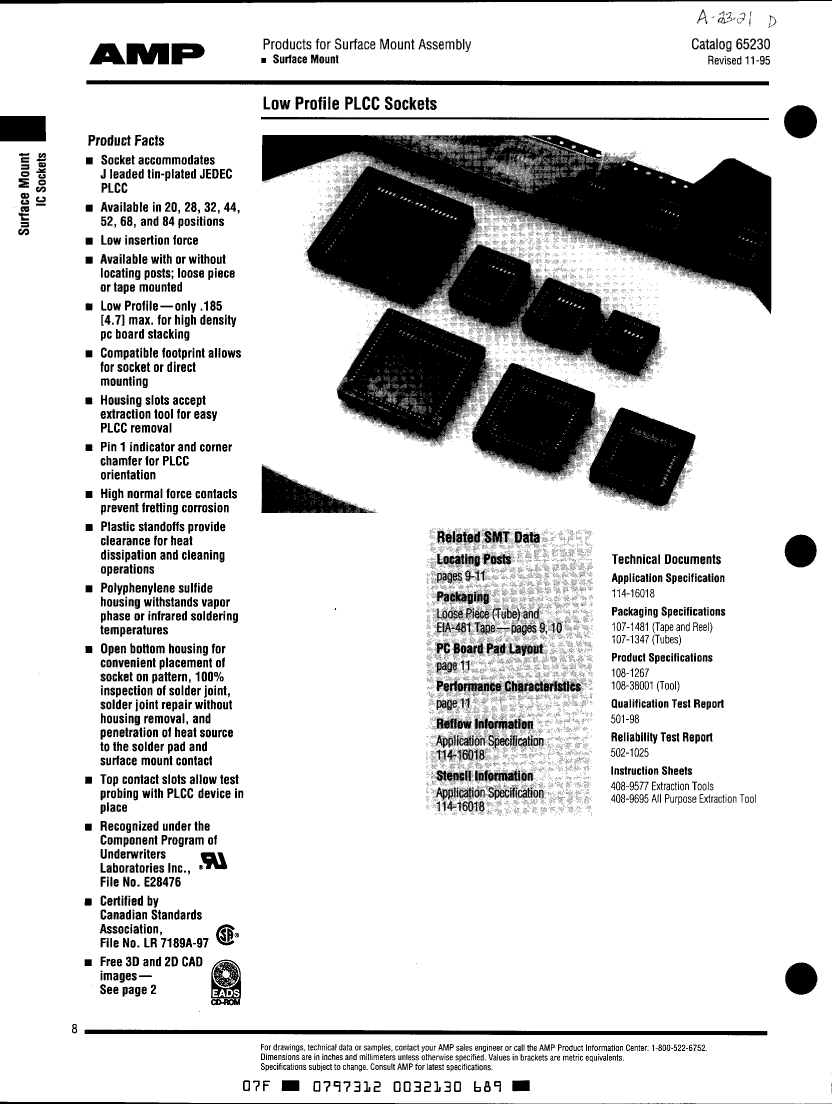

Preview

822073-3: DescriptionPLCC68, IC SOCKET; CategoryThe connector socket; File Size373KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

822073-3 Overview

PLCC68, IC SOCKET

822073-3 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	STANDARD: UL 94V-0, LOW PROFILE
body width	1.2 inch
subject depth	0.185 inch
body length	1.2 inch
Contact structure	17X17
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (50)
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC68
Dielectric withstand voltage	600VAC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Manufacturer's serial number	822073
Installation method	STRAIGHT
Number of contacts	68
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Base Number Matches	1

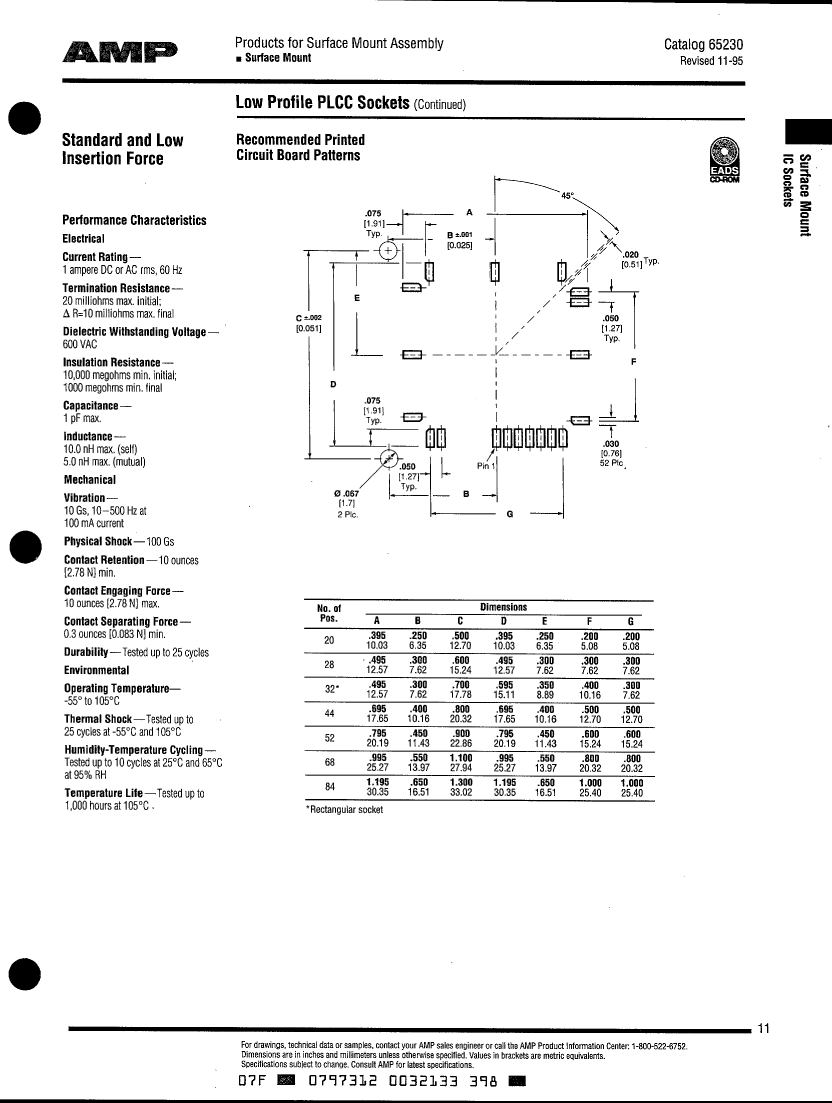

Preview

Download Datasheet

View All

822073-3 Related Products

	822073-3	M5264-12000W-200BC	822014-3	822029-3	822072-1	822180-1	822066-4	822069-4
Description	PLCC68, IC SOCKET	Pressure Sensor	PLCC20, IC SOCKET	PLCC68, IC SOCKET	PLCC SOCKET,52 CONTACTS,13X13	PLCC SOCKET,84 CONTACTS,21X21	PLCC SOCKET,28 CONTACTS,7X7	PLCC52, IC SOCKET
Reach Compliance Code	unknown	unknown	compliant	compli	unknown	compli	unknown	unknown
Other features	STANDARD: UL 94V-0, LOW PROFILE	IP 66, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	TAPE MOUNTED	TAPE MOUNTED	LOCATING POSTS	STANDARD: UL 94V-0, LOW PROFILE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-	-
body width	1.2 inch	-	0.565 inch	1.2 inch	1 inch	1.4 inch	0.665 inch	1 inch
subject depth	0.185 inch	-	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
body length	1.2 inch	-	0.565 inch	1.2 inch	1 inch	1.4 inch	0.665 inch	1 inch
Contact structure	17X17	-	5X5	17X17	13X13	21X21	7X7	13X13
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (50)	-	TIN LEAD (200) OVER NICKEL (50)	TIN LEAD (200) OVER NICKEL (50)	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	TIN LEAD (200) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (50)	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN LEAD (200) OVER NICKEL (50)	GOLD	GOLD	GOLD	TIN LEAD (200) OVER NICKEL (50)
Contact material	P-CUSN	-	NOT SPECIFIED	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	-	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	-	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC68	-	PLCC20	PLCC68	PLCC52	PLCC84	PLCC28	PLCC52
Dielectric withstand voltage	600VAC V	-	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Shell material	POLYPHENYLENE SULFIDE	-	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	822073	-	-	822029	822	822	822	822069
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	68	-	20	68	52	84	28	52
ECCN code	-	-	EAR99	-	EAR99	EAR99	EAR99	EAR99
