HW-06-16-G-D-288-SM-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> HW-06-16-G-D-288-SM-A

HW-06-16-G-D-288-SM-A: DescriptionBoard Stacking Connector, 12 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size883KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HW-06-16-G-D-288-SM-A Overview

Board Stacking Connector, 12 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

HW-06-16-G-D-288-SM-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1178675747
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
Factory Lead Time	2 weeks
YTEOL	8.58
Board mount options	POSITIONING PIN
subject depth	0.288 inch
body length	0.6 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

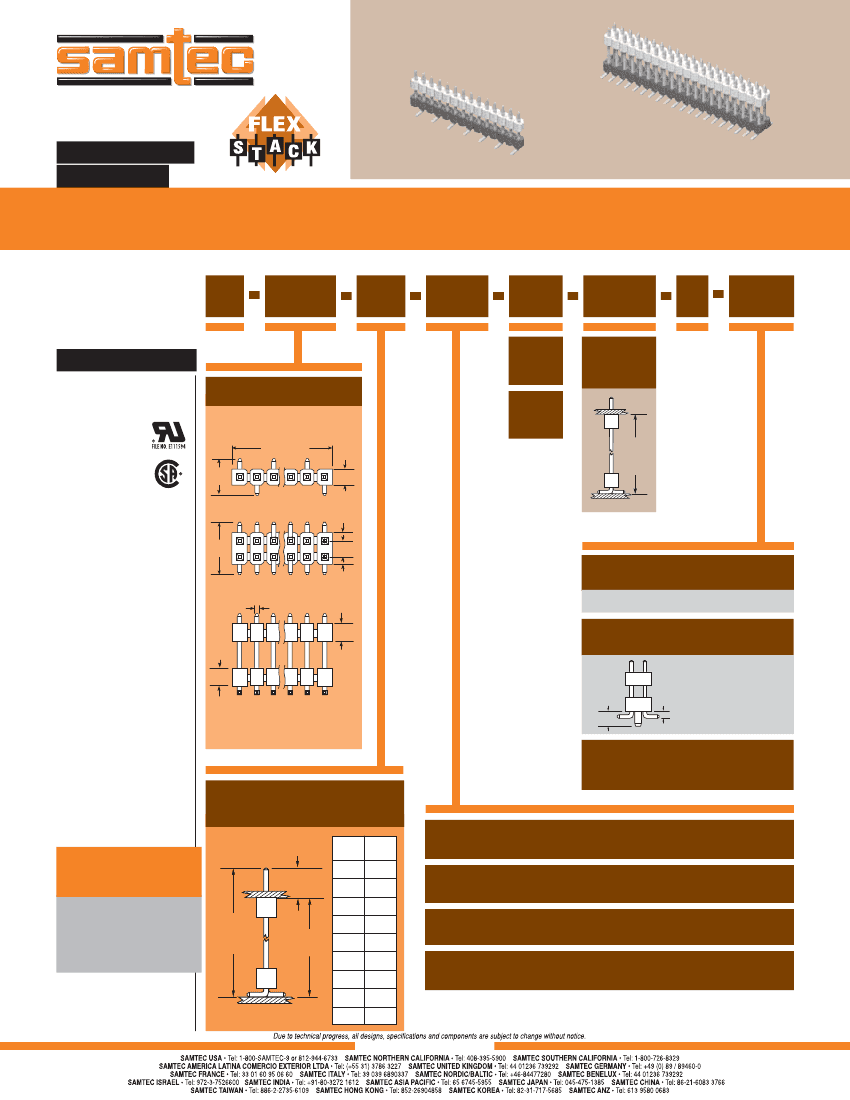

F-212

HW–14–08–G–S–350–SM

(2,54mm) .100"

HW SERIES

HW–20–15–G–D–475–SM

FLEXIBLE .025" SQ BOARD STACKERS

Mates with:

SSW, SSQ, ESW, ESQ,

CES, SLW, BSW, BCS,

SSM, IDSS, IDSD, HLE,

PHF, SMSD, SMSS

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

OTHER

OPTIONS

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?HW-SM

Insulator Material:

Top: Natural LCP

Bottom: Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15mm) .006" max

–S

= Single

Row

–“XXX”

= Stacker

Height

02 thru 36

(2,54) .100 x

No. of Positions

(2,54)

.100

–D

= Double

Row

STACKER

HEIGHT

(6,35)

.250

MIN

(4,70)

.185

(7,37)

.290

(2,54)

.100

(5,08)

.200

(0,64) .025 SQ TYP

(2,54)

.100

Processing:

–‘‘XX’’

= Polarized

Specify omitted pin position

–A

= Alignment Pin

Double row only

(1,27)

.050

(2,54)

.100

(2,54)

.100

(Metal or plastic at

Samtec discretion)

–TR

= Tape & Reel Packaging (27 positions Max.)

(Not Available on Lead Styles 10, 11, 12 & 20)

Specify LEAD STYLE

from chart

APPLICATION

SPECIFIC

OPTION

Locking Clip (Manual

placement required)

available with

double row -SM.

Call Samtec.

OVERALL

LENGTH

LEAD

OAL

STYLE

(SMT)

–F

= Gold ﬂash on contact, Matte Tin on tail

POST

(0,00).000

MIN

– 08

– 09

–10

–11

(11,81)

.465

(16,89)

.665

(19,43)

.765

(21,97)

.865

(24,51)

.965

(14,35)

.565

(9,65)

.380

(10,54)

.415

(27,05)

1.065

–L

= 10µ" (0,25µm) Gold on contact area of longer tail, Matte Tin on tail

–G

= 10µ" (0,25µm) Gold on contact area of longer tail, Gold ﬂash on balance

(OAL)

STACKER

HEIGHT

–12

–15

–16

–17

–T

= Matte Tin

Note:

Other Gold plating options available.

Contact Samtec.

Note:

These Series are

non-standard, non-returnable.

– 20
