BSP297E6327: DescriptionPower Field-Effect Transistor, 0.66A I(D), 200V, 1.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor The transistor; File Size284KB，8 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

BSP297E6327 Overview

Power Field-Effect Transistor, 0.66A I(D), 200V, 1.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4

BSP297E6327 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PLASTIC PACKAGE-4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	0.66 A
Maximum drain current (ID)	0.66 A
Maximum drain-source on-resistance	1.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	1.8 W
Maximum pulsed drain current (IDM)	2.64 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

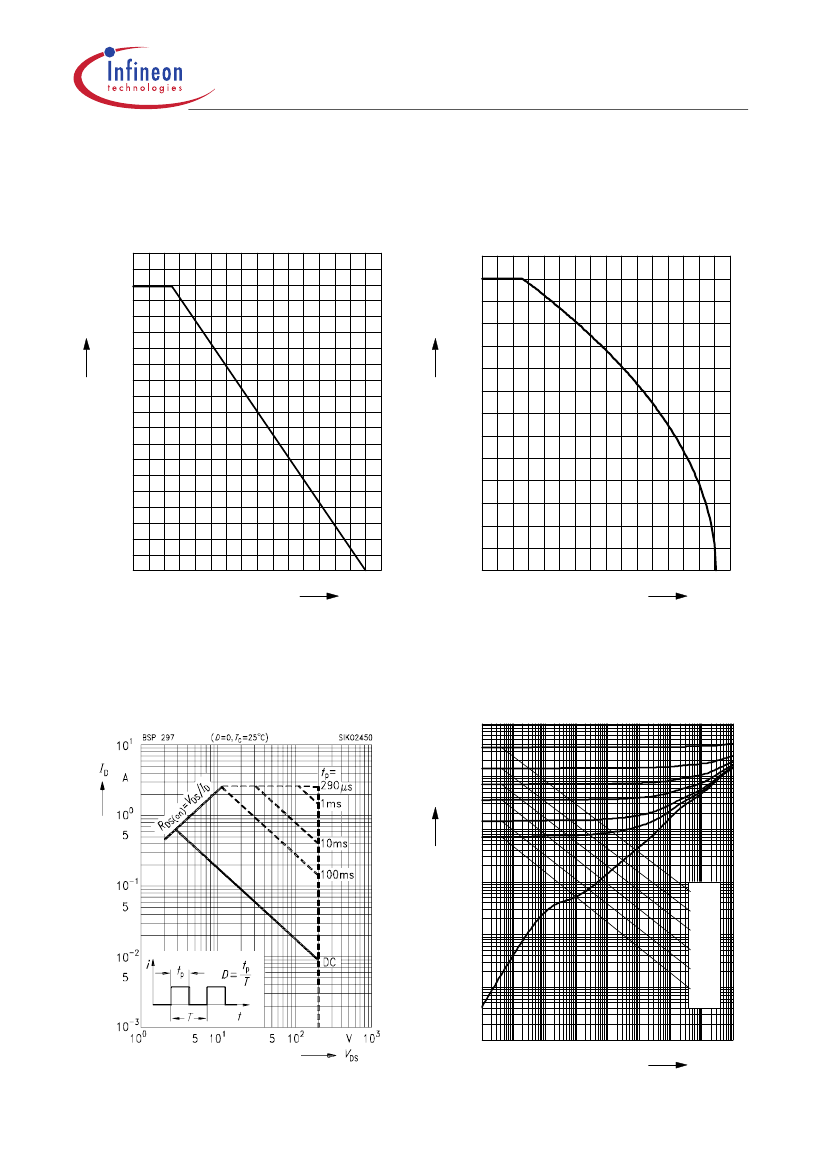

Preview

Download Datasheet

View All

BSP 297

SIPMOS

Small-Signal Transistor

• N channel

• Enhancement mode

• Logic Level

• V

GS(th)

= 0.8...2.0V

Pin 1

Type

Pin 2

Marking

Pin 3

Pin 4

200 V

0.65 A

DS(on)

Ω

Package

BSP 297

Type

BSP 297

SOT-223

BSP 297

Ordering Code

Q67000-S068

Tape and Reel Information

E6327

Maximum Ratings

Parameter

Symbol

Values

Unit

Drain source voltage

Drain-gate voltage

= 20 k

Ω

DGR

200

Gate source voltage

ESD Sensitivity (HBM) as per MIL-STD 883

Continuous drain current

= 25 ˚C

Class 1

0.65

DC drain current, pulsed

= 25 ˚C

Dpuls

2.6

tot

Power dissipation

= 25 ˚C

1.8

Data Sheet

05.99
