MAP3025C48-800.000MHZ-G datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MAP3025C48-800.000MHZ-G

MAP3025C48-800.000MHZ-G: DescriptionPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size105KB，2 Pages; ManufacturerMMD Monitor/Quartztek; Websitehttp://mmdcomp.com

Download Datasheet Parametric View All

MAP3025C48-800.000MHZ-G Overview

PECL Output Clock Oscillator,

MAP3025C48-800.000MHZ-G Parametric

Parameter Name	Attribute value
Maker	MMD Monitor/Quartztek
package instruction	GULL WING,DIP-14/4
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	800 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL
Output load	50 OHM
longest rise time	2 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

MAP, MAL & MAV Series Oscillator



Industry Standard Package

Wide Frequency Range

RoHS Compliant Available

Less than 1 pSec Jitter

LVDS

Frequency Range

Frequency Stability*

Operating Temp.Range

Storage Temp. Range

Aging

Logic “0”

Logic “1”

Supply Voltage (Vdd)

Supply Current

2.5VDC ± 5%

3.3VDC ± 5%

5.0VDC ± 5%

1.43V typ

1.10V typ

50 mA max

60 mA max

N/A

LVPECL

12.500MHz to 800.000MHZ

(See Part Number Guide for Options)

-55°C to +125°C

±5 ppm / yr max

Vdd – 1.620 VDC max

Vdd- 1.025 vdc min

50 mA max

60 mA max

N/A

(See Part Number Guide for Options)

2nSec max

PECL

Vdd – 1.620 VDC max

Vdd- 1.025 vdc min

N/A

140 mA max

Symmetry (50% of waveform)

Rise / Fall Time (20% to 80%)

Load

Start Time

Phase Jitter (12kHz to 20MHz)

* Inclusive of Temp., Load, and Voltage

50Ω

10mSec max

Less than 1 pSec

50Ω

Mechanical & Environmental Detail

Shock

Solderability

Solvent Resistance

Vibration

Gross Leak Test

Fine Leak Test

MSL

MIL-STD-883, Method 2002 Cond B

MIL-STD-883, Method 2003

MIL-STD-202, Method 215

MIL-STD-883, Method 2007, Cond A

MIL-STD-883, Method 1014, Cond C

MIL-STD-883, Method 1014, Cond A2

Level 1 per IPC/JEDEC J-STD 20

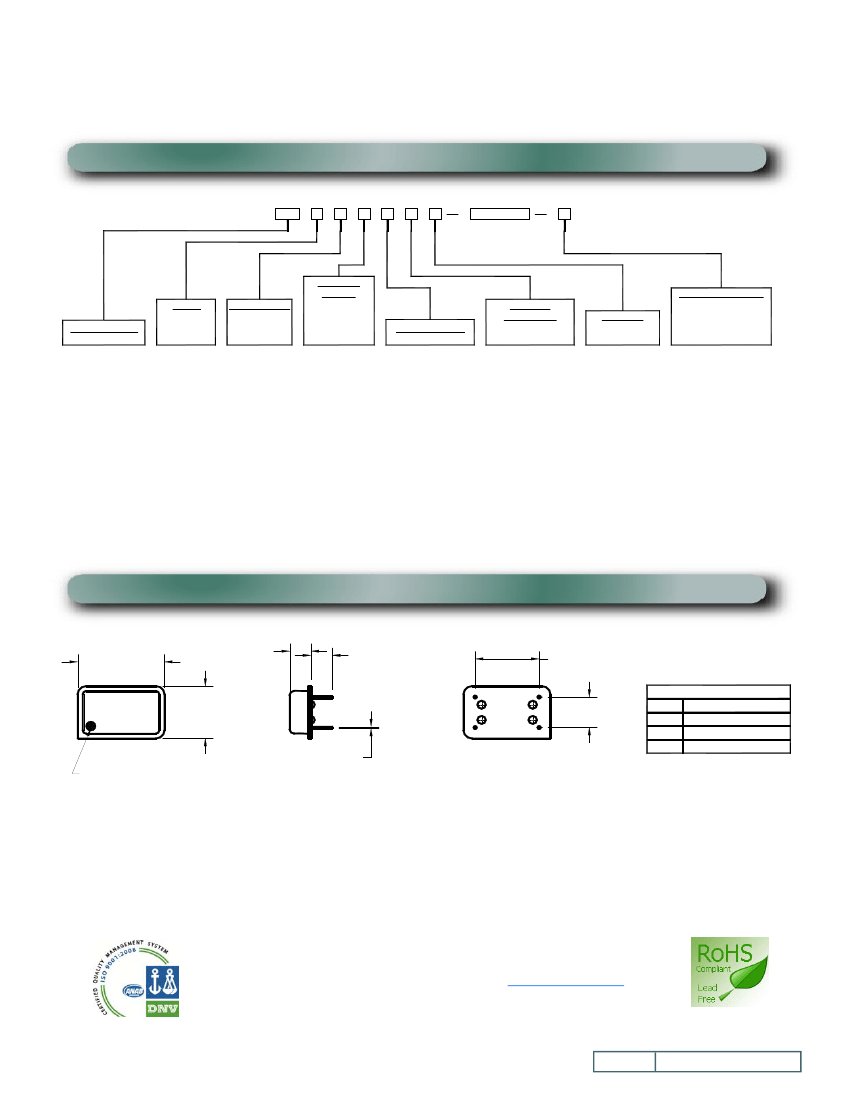

Marking Detail

Line 1 = MXXXXX

XXXXX

Line 2 = SYYWWL

YYWW

Line 3 = XXXXX

Internal use only

May vary with lots

Black dot to denote Pin 1

Internal Code

4 Digit Date Code (Year /

Week)

Denotes RoHS Compliant

MMD

Frequency in MHZ

MMD Monitor/Quartztek

30400 Esperanza, Rancho Santa Margarita, CA, 92688

Phone: (949) 709-5075, Fax: (949) 709-3536,

www.mmdcomp.com

Sales@mmdcomp.com

Revision:

Subject to change without notice

03/18/11 J

Pg 1 of 2
