CTP4549-317 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTP4549-317

CTP4549-317: DescriptionGeneral Purpose Inductor, 68uH, 1 Element, Iron-Core,; CategoryPassive components inductor; File Size57KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

CTP4549-317 Overview

General Purpose Inductor, 68uH, 1 Element, Iron-Core,

CTP4549-317 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
core material	IRON
DC Resistance	0.014 Ω
Nominal inductance(L)	68 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTP4549
Number of functions	1
Number of terminals	2
Maximum rated current	12.2 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Toroidal Inductors

High Current

CTP4549

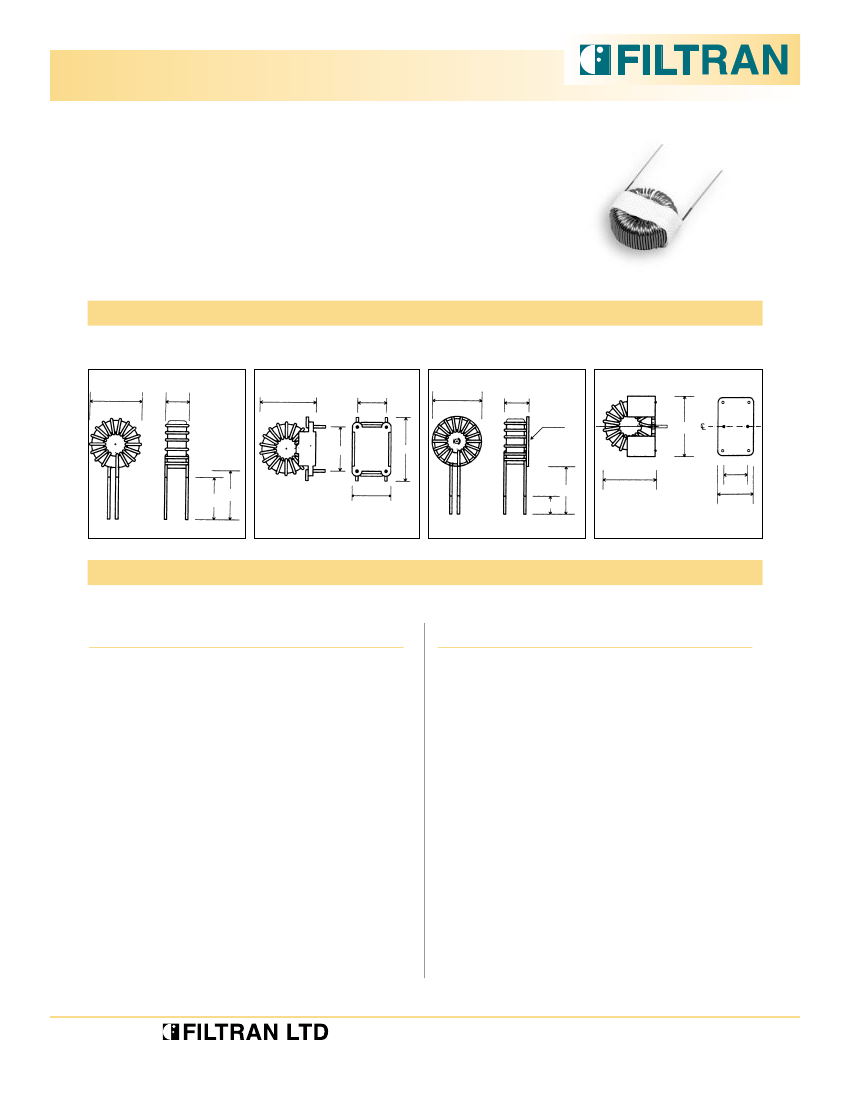

CTP4549 is a high current inductor with the following data and features:

1.06” o.d., Iron Powder,

perm 33.

•

Power rating:

2.16 watts for temp.

rise 50˚C.

•

Typical applications:

Filter Inductors in Switch

Mode Power Supplies.

•

Core type:

Four mounting styles are offered:

Flying leads (1.00”), for vertical

or horizontal mounting.

4-pin header, for vertical mounting.

Threaded center hole, flying leads

(2.00”).

2-pin header, for vertical mounting.

MECHANICAL

Style 1

1.25

0.65

Style 2

1.30

0.60

Style 3

1.25

0.72

Thread

#10-32

0.90

1.30

Style 4

1.25

1.30

0.80

1.00

0.80

2.00

0.50

0.75

ELECTRICAL SPECIFICATION

Ordering Information:

Substitute the style number for the asterisk (*). Example: CTP4549, Style 1, 56uH.

Part No.

Ind.

CTP4549 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

I (amp.)

@ Lsat.

10%

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

Part No.

Ind.

CTP4549 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

Order: CTP4549 - 116

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

I (amp.)

@ Lsat.

10%

* 01

* 02

* 03

* 04

* 05

* 06

* 07

* 08

* 09

* 10

* 11

* 12

* 13

* 14

* 15

* 16

3.3

3.9

4.7

5.6

6.8

8.2

0.003

0.004

0.005

0.006

0.007

0.010

0.011

0.012

0.013

28.8

27.7

26.4

25.3

24.2

23.1

22.0

21.1

19.9

19.1

18.1

17.3

14.6

14.0

13.4

12.8

17.9

16.4

15.0

13.7

12.4

11.3

10.3

9.4

8.4

7.6

6.9

6.3

5.6

5.2

4.7

4.3

44.7

41.1

37.4

34.3

31.1

28.3

25.7

23.4

20.9

19.1

17.3

15.6

14.1

13.0

11.8

10.8

107.2

98.6

89.8

82.3

74.7

68.0

61.6

56.2

50.3

45.9

41.5

37.5

33.9

31.2

28.4

26.0

* 17

* 18

* 19

* 20

* 21

* 22

* 23

* 24

* 25

* 26

* 27

* 28

100

120

150

180

220

270

330

390

470

560

0.014

0.020

0.022

0.024

0.034

0.047

0.052

0.057

0.080

0.109

0.120

0.165

12.2

10.4

9.9

9.5

8.0

6.8

6.5

6.1

5.2

4.4

4.2

3.6

3.9

3.6

3.2

3.0

2.6

2.4

2.2

2.0

1.8

1.6

1.5

1.4

9.8

9.0

8.1

7.4

6.6

6.0

5.5

4.9

4.5

4.1

3.7

3.4

23.6

21.5

19.5

17.8

15.9

14.5

13.1

11.8

10.7

9.9

9.0

8.2

CTP4549

An ISO 9001 Registered Company

229 Colonnade Road, Nepean, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com

32-8
