5300-1041 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5300-1041

5300-1041: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), 0.051 inch Pitch, Wire Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5300-1041 Overview

Board Connector, 4 Contact(s), 1 Row(s), 0.051 inch Pitch, Wire Terminal, Locking, Natural Insulator, Receptacle

5300-1041 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.76 inch
subject depth	0.969 inch
body length	0.228 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	5300
Plug contact pitch	0.051 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
polarization key	POLARIZED HOUSING
Rated current (signal)	10 A
Guideline	UL
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

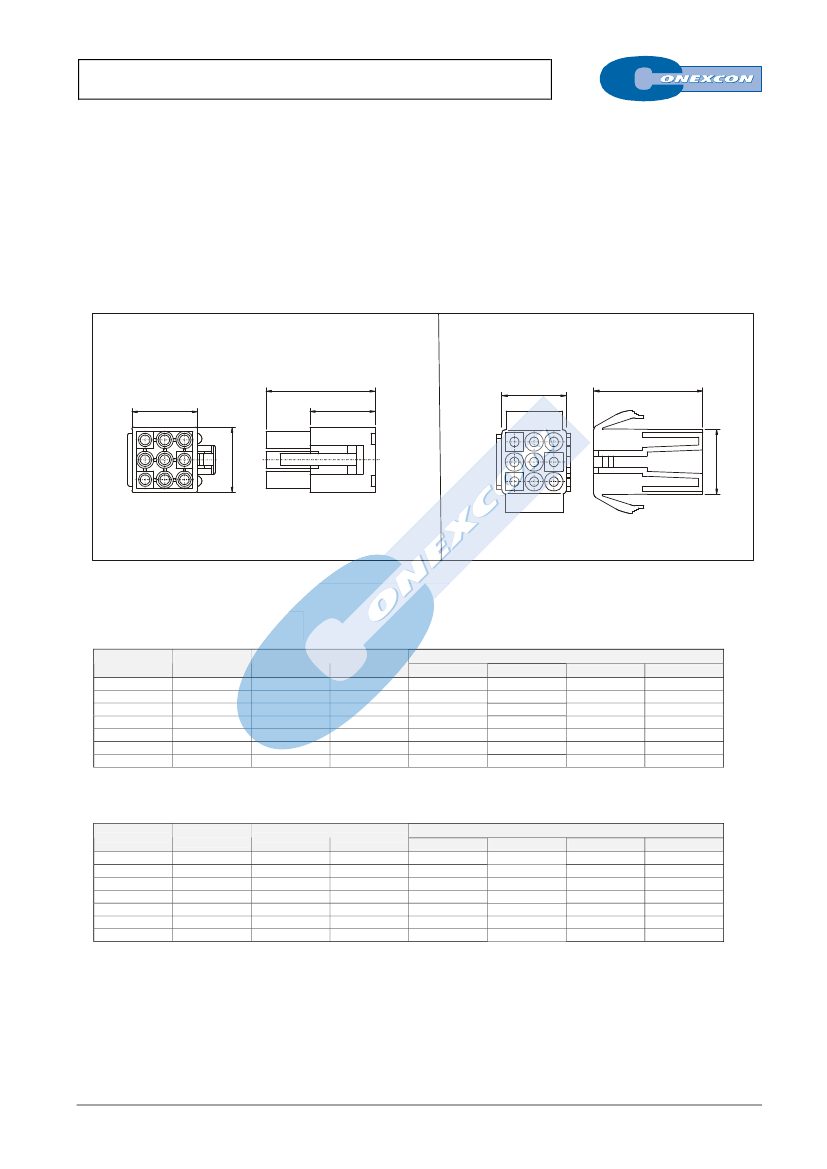

1.30mm WIRE TO WIRE CONNECTOR

5300 SERIES.

For Panel and Free Hanging Mounting.

Features



Available in 2, 3, 4, 6, 9 and 12 circuits

Positive housing lock for secure mating retention

Integrally moulded mounting ears available

Material: Nylon 6/6 UL94 V-0, Colour: Natural



Accepts 5311 and 5312 series crimp terminal

For free hanging or panel mounted

Applicable panel thickness: 0.80 to 2.00mm

Dimensional Information

Ordering and Dimensional Information

RECEPTACLE CONNECTOR

PLUG CONNECTOR

RECEPTACLE

Circuit Size

Current Rating

Amps.

Voltage

300 V

Part Number

5300 - 1021

5300 - 1031

5300 - 1040

5300 - 1041

5300 - 1061

5300 - 1091

5300 - 1121

Dimensions

24.40 (0.961)

25.00(0.984)

24.60(0.969)

14.50 (0.571)

15.00 (0.591)

14.60 (0.575)

5.80 (0.228)

10.30 (0.406)

5.80 (0.228)

10.30 (0.406)

14.80 (0.583)

10.30 (0.406)

14.80 (0.583)

10.30 (0.406)

19.30 (0.760)

14.80 (0.583)

19.30 (0.760)

PLUG

Circuit Size

Current Rating

Amps.

Voltage

300 V

Part Number

5300 - 2021

5300 - 2031

5300 - 2040

5300 - 2041

5300 - 2061

5300 - 2091

5300 - 2121

Dimensions

25.00 (0.984)

24.60 (0.969)

5.80 (0.228)

10.30 (0.406)

5.80 (0.228)

10.30 (0.406)

14.80 (0.583)

10.30 (0.406)

14.80 (0.583)

10.30 (0.406)

19.30 (0.760)

14.80 (0.583)

19.30 (0.760)

FULL LINE CATALOGUE

L-XX

5300-1041 Related Products

	5300-1041	5300-1040	5300-2121
Description	Board Connector, 4 Contact(s), 1 Row(s), 0.051 inch Pitch, Wire Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), 0.051 inch Pitch, Wire Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), 0.051 inch Pitch, Wire Terminal, Locking, Natural Insulator, Plug
Maker	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown
body width	0.76 inch	0.406 inch	0.76 inch
subject depth	0.969 inch	0.969 inch	0.969 inch
body length	0.228 inch	0.406 inch	0.583 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	NYLON	NYLON	NYLON
Manufacturer's serial number	5300	5300	5300
Plug contact pitch	0.051 inch	0.051 inch	0.051 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	10 A	10 A	6 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	WIRE	WIRE	WIRE
Total number of contacts	4	4	12
Base Number Matches	1	1	1
