CA-37DPID-P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CA-37DPID-P

Preview

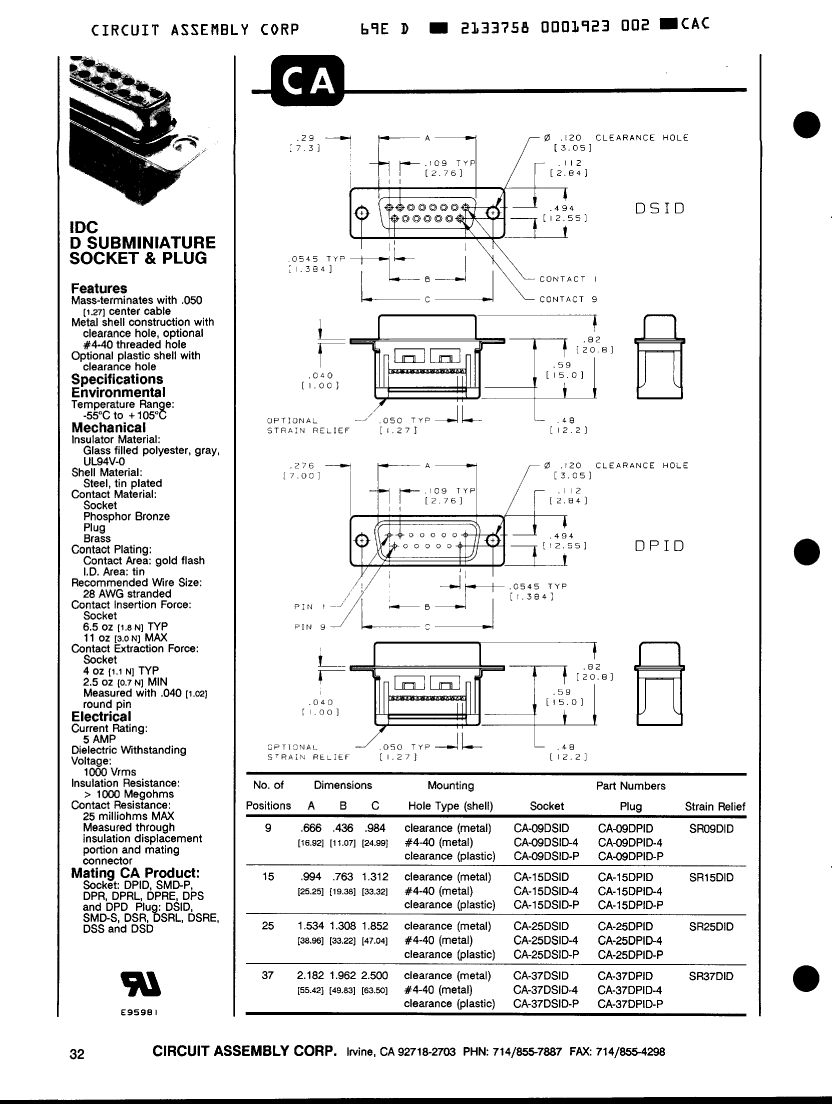

CA-37DPID-P: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric Compare View All

CA-37DPID-P Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle

CA-37DPID-P Parametric

Parameter Name	Attribute value
Maker	Circuit Assembly
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.59 inch
body length	2.734 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	DPID
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	NON-THREADED
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	THERMOPLASTIC
Total number of contacts	37
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

CA-37DPID-P Related Products

	CA-37DPID-P	CA-37DSID-P	CA-15DSID-P	CA-25DSID-P	CA-09DPID-P	CA-15DPID-P	CA-25DPID-P
Description	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Hole .112-.124, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Hole .112-.124, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Hole .112-.124, Receptacle
Maker	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch
body length	2.734 inch	2.762 inch	1.574 inch	2.114 inch	1.218 inch	1.546 inch	2.086 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE
Contact material	BRASS	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	DPID	DSID	DSID	DSID	DPID	DPID	DPID
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Total number of contacts	37	37	15	25	9	15	25
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Base Number Matches	1	1	1	1	-	-	-
