T398N400TOF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> T398N400TOF

T398N400TOF: DescriptionSilicon Controlled Rectifier, 398000mA I(T), 400V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size600KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

T398N400TOF Overview

Silicon Controlled Rectifier, 398000mA I(T), 400V V(DRM),

T398N400TOF Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	200 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	1.4 V
Maximum holding current	200 mA
Maximum leakage current	30 mA
On-state non-repetitive peak current	5500 A
Maximum on-state current	398000 A
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	400 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

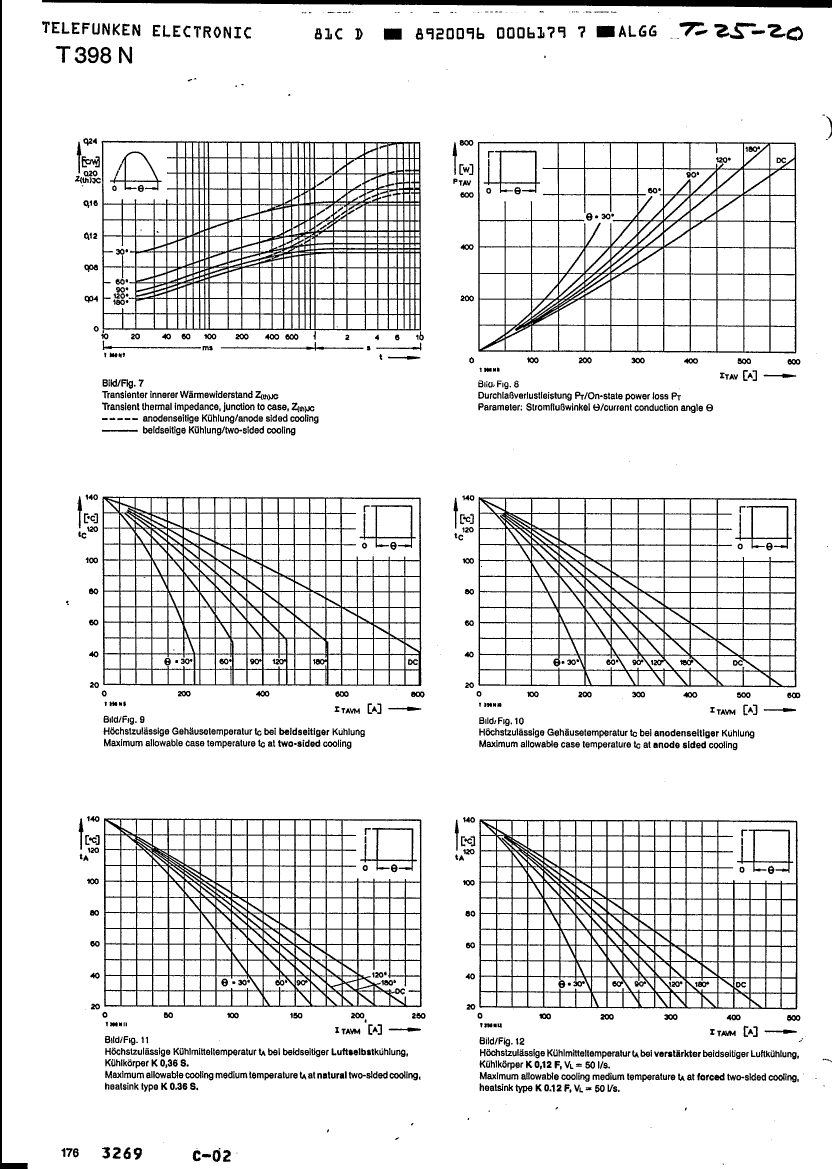

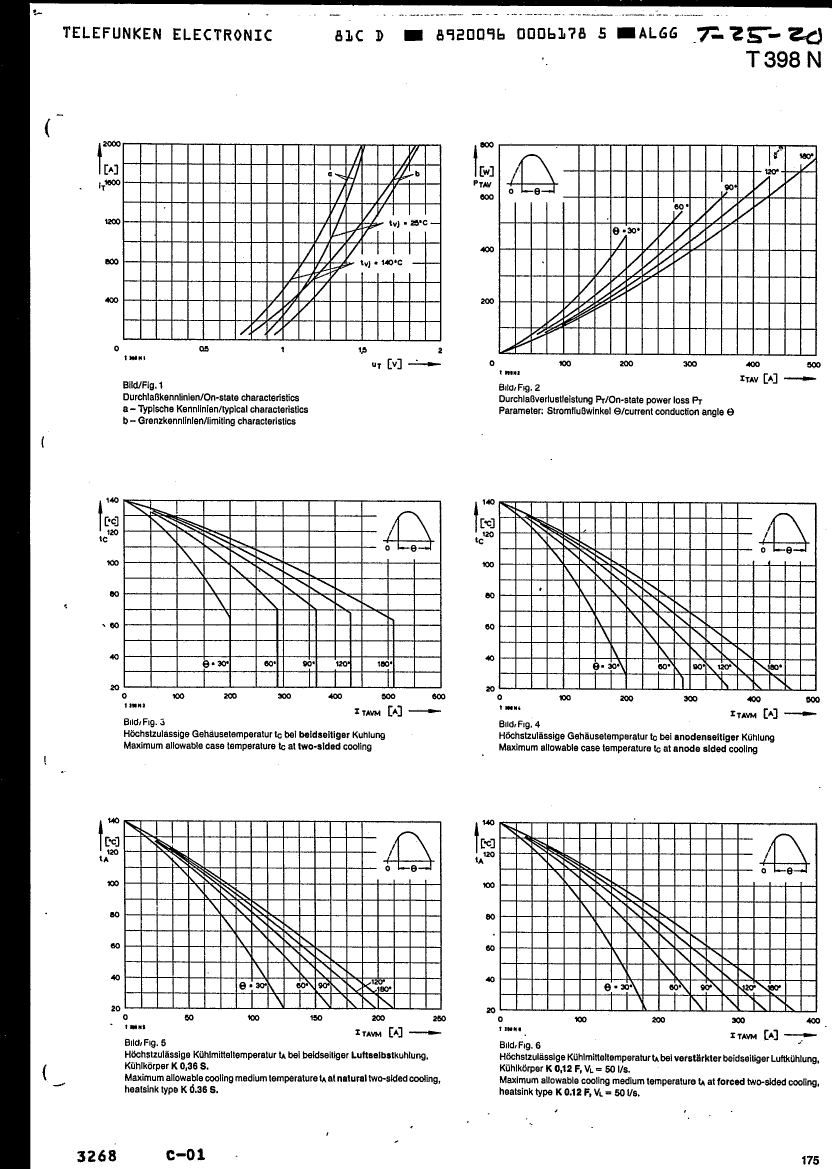

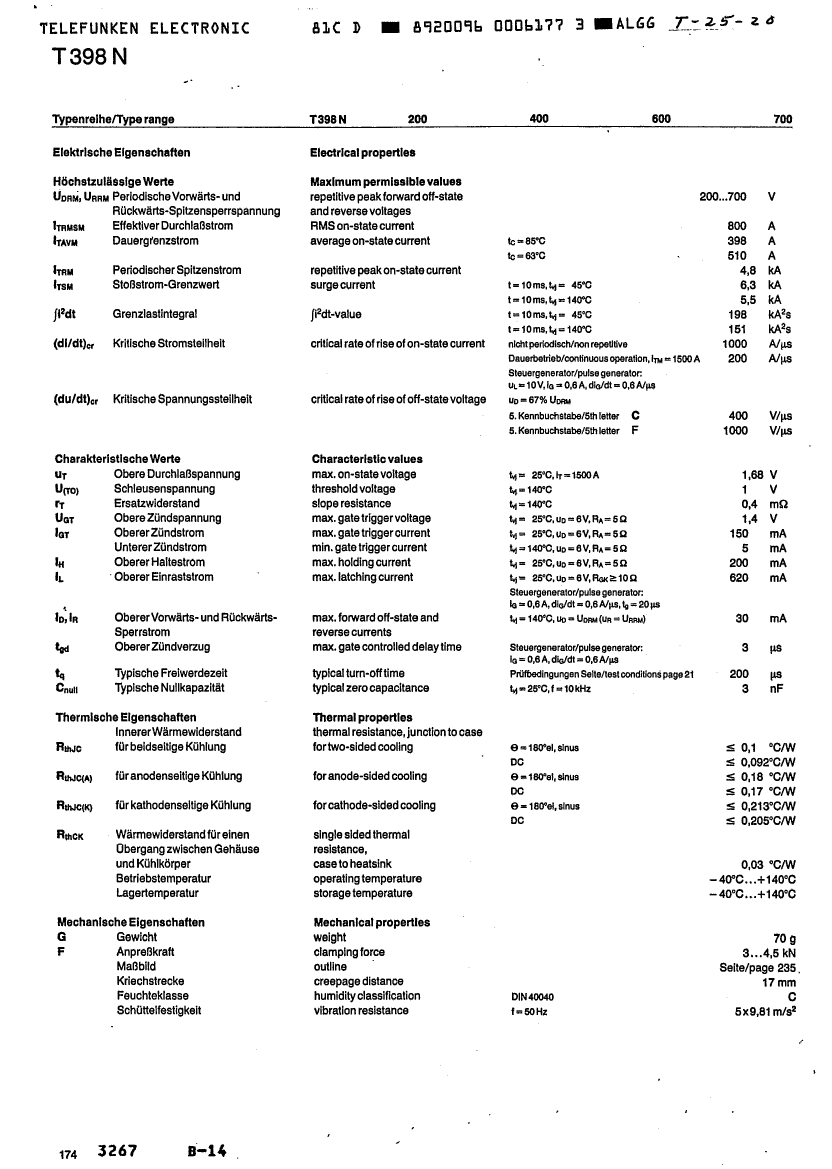

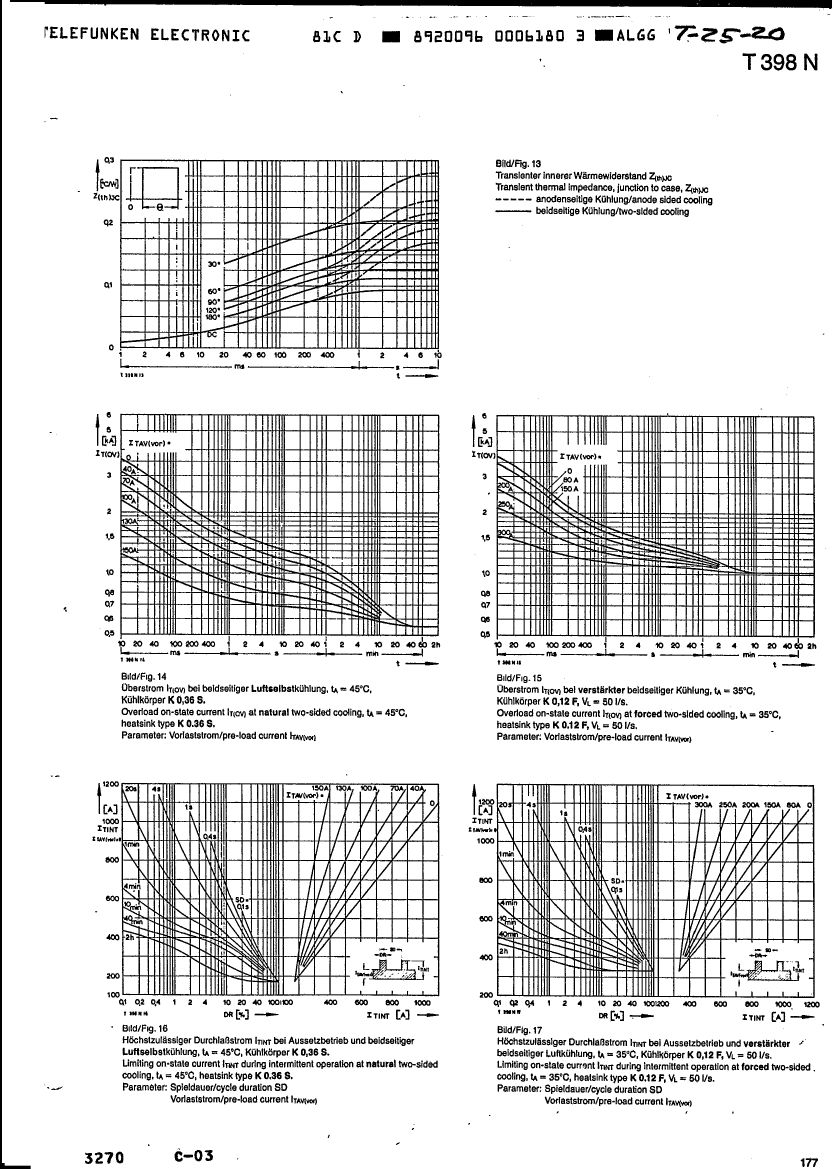

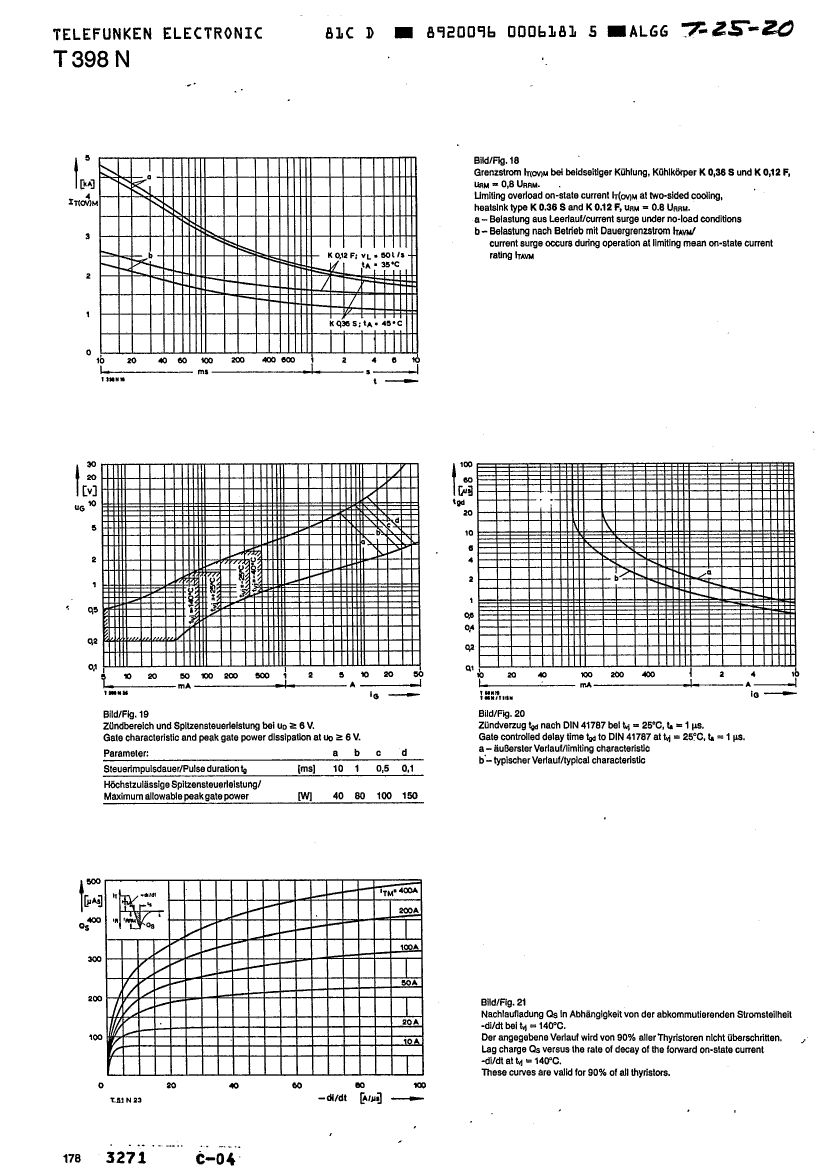

Preview

Download Datasheet

View All

T398N400TOF Related Products

	T398N400TOF	T398N700TOC	T398N600TOC	T398N700TOF	T398N200TOF	T398N600TOF	T398N400TOC	T398N200TOC
Description	Silicon Controlled Rectifier, 398000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 700V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 600V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 700V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 200V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 600V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 398000mA I(T), 200V V(DRM),
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	200 µs	200 µs	200 µs	200 µs	200 µs	200 µs	200 µs	200 µs
Critical rise rate of minimum off-state voltage	1000 V/us	400 V/us	400 V/us	1000 V/us	1000 V/us	1000 V/us	400 V/us	400 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
Maximum holding current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum leakage current	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA
On-state non-repetitive peak current	5500 A	5500 A	5500 A	5500 A	5500 A	5500 A	5500 A	5500 A
Maximum on-state current	398000 A	398000 A	398000 A	398000 A	398000 A	398000 A	398000 A	398000 A
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C
Off-state repetitive peak voltage	400 V	700 V	600 V	700 V	200 V	600 V	400 V	200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
