57LE-40360-73OO(D29): DescriptionTelecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size470KB，6 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

57LE-40360-73OO(D29) Overview

Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Receptacle

57LE-40360-73OO(D29) Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	EMI/RFI SHILEDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	57LE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

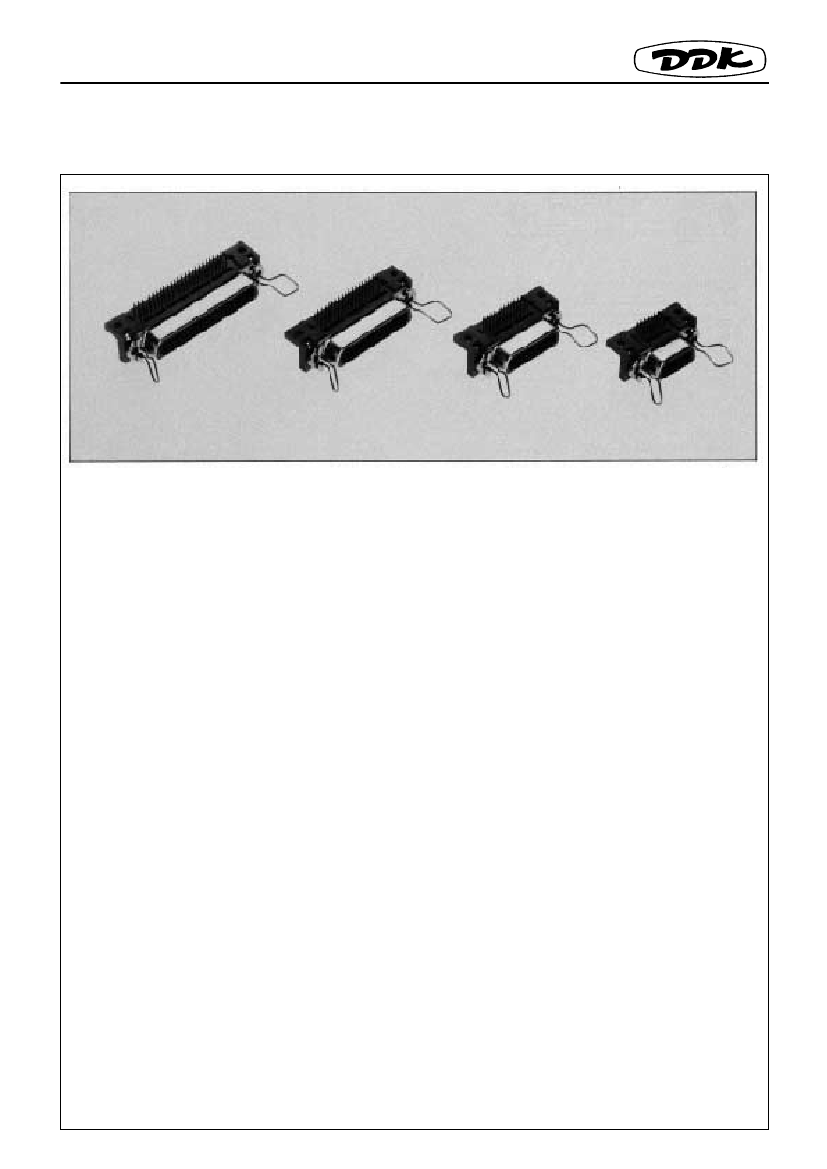

57LE Series

Right Angle Solder Dip Connectors

EMI / RFI Shielding Version

FEATURES

• Highly-reliable, scoop-proof cantilever contact design

• Intermateable with 57 family connectors

• UL recognized ( File No.72124 )

SPECIFICATIONS

Rated voltage ··········································500V AC ( r.m.s.)

Rated current ·········································· 3A / contact

Dielectric withstanding ························· 1200V AC (r.m.s.)

voltage

1 minute

min.

at 500V DC

Contact resistance ································ 35mW

max.

Insulation resistance ····························· 1000MW

MATERIAL / FINISH

Contact ····················································Copper alloy /

Gold over Nickel plate

Shell ······················································· Brass / Nickel plate

Insulator ················································· PBT resin (UL94V-O)

Spring latch ···········································Stainless steel

17
