500A-SSP3-M6-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 500A-SSP3-M6-Q

500A-SSP3-M6-Q: DescriptionSwitch, SPDT, Horizontal, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size156KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

500A-SSP3-M6-Q Overview

Switch, SPDT, Horizontal, Through Hole-right Angle

500A-SSP3-M6-Q Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Actuator angle
Actuator length	0.122 inch
Actuator material	NYLON
Actuator type	SLIDE
body width	5.08 mm
body height	10.033 mm
Body length or diameter	10.16 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@250VAC
Maximum contact current (AC)	1 A
Contact function	ON-OFF-ON
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	500A
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

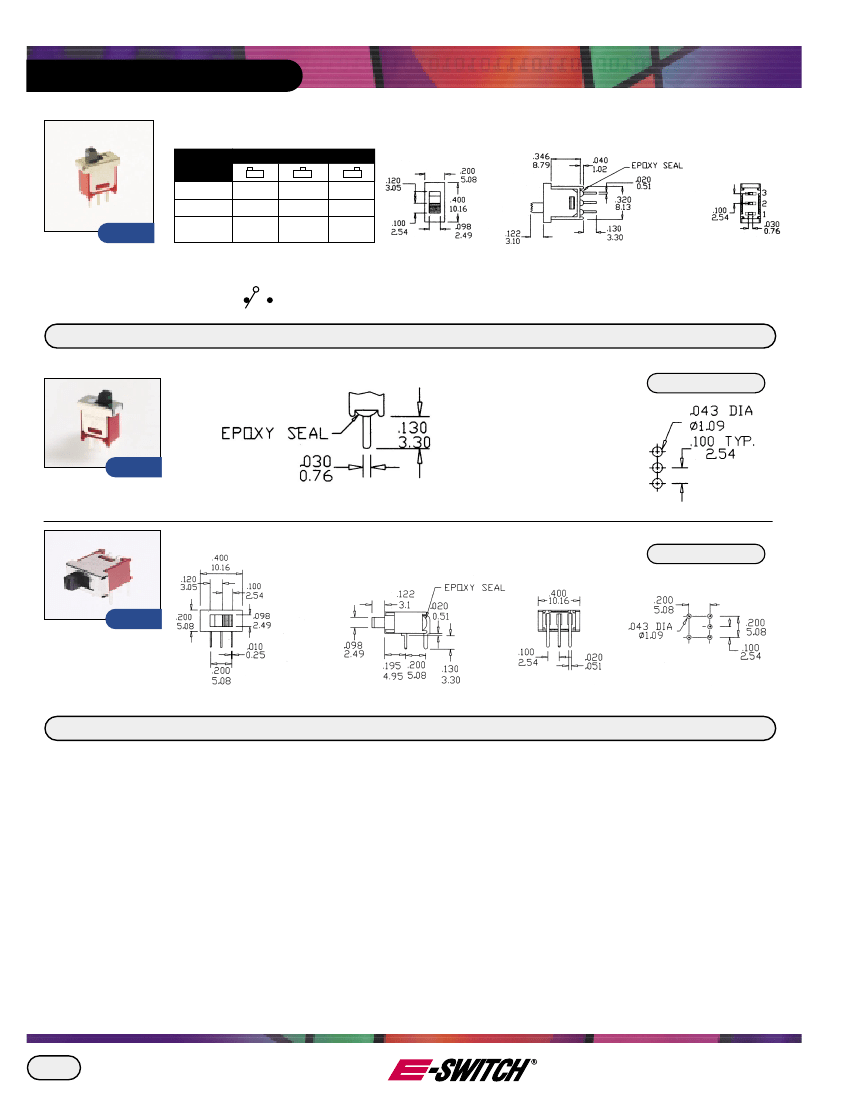

SERIES

5 0 0 A

SWITCHES

SUB-MINIATURE SLIDE SWITCHES

SPECIFICATIONS

Ratings:

Electrical Life:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Operating Temperature:

MATERIALS

Case:

Housing:

Slide Handle:

Contact & Terminals:

3 A @ 120 VAC

1 A @ 250 VAC

50,000 make-and-break cycles at full load

10 mΩ max. typical @ 2-4 VDC

100mA for both silver and gold plated contacts

1,000MΩ min.

1,000 V rms at sea level

-30

C to 85

Diallyl phthalate (DAP)

Stainless steel

Nylon

Gold or Silver plated copper alloy

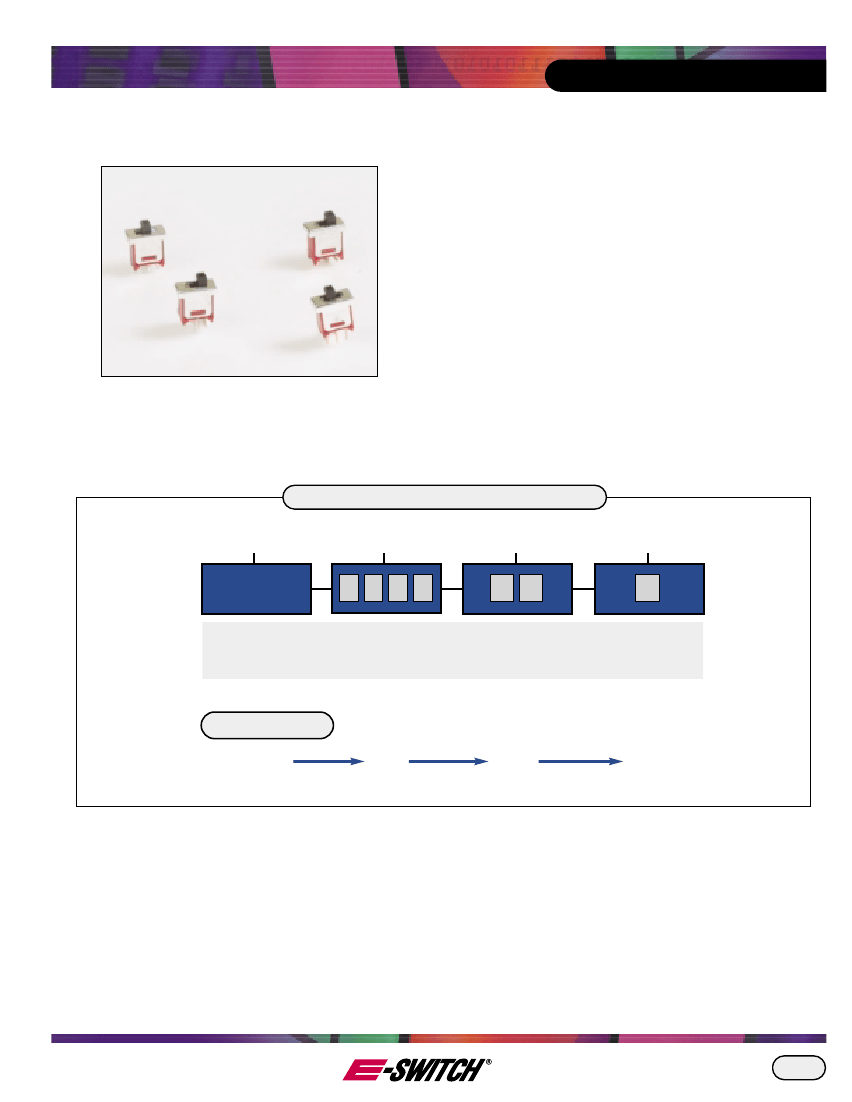

HOW TO ORDER

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Series

Model No.

Termination

Contact Material

500A

SSP1

SSP3

Q=Silver

R=Gold

EXAMPLE

500A

SSP1

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com

info@e-switch.com

171

500A-SSP3-M6-Q Related Products

	500A-SSP3-M6-Q	500A-SSP3-M2-R	500A-SSP1-M6-R	500A-SSP3-M6-R	500A-SSP1-M2-R	500A-SSP3-M2-Q	500A-SSP1-M6-Q	500A-SSP1-M2-Q
Description	Switch, SPDT, Horizontal, Through Hole-right Angle	Switch, SPDT, Horizontal, Through Hole-straight	Switch, SPDT, Horizontal, Through Hole-right Angle	Switch, SPDT, Horizontal, Through Hole-right Angle	Switch, SPDT, Horizontal, Through Hole-straight	Switch, SPDT, Horizontal, Through Hole-straight	Switch, SPDT, Horizontal, Through Hole-right Angle	Switch, SPDT, Horizontal, Through Hole-straight
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant	compliant	compliant
Actuator length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
Actuator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
body width	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
body height	10.033 mm	8.7884 mm	10.033 mm	10.033 mm	8.7884 mm	8.7884 mm	10.033 mm	8.7884 mm
Body length or diameter	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	SILVER	GOLD	GOLD	GOLD	GOLD	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC
Maximum contact current (AC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Contact function	ON-OFF-ON	ON-OFF-ON	ON-ON	ON-OFF-ON	ON-ON	ON-OFF-ON	ON-ON	ON-ON
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	SILVER	GOLD	GOLD	GOLD	GOLD	SILVER	SILVER	SILVER
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	500A	500A	500A	500A	500A	500A	500A	500A
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT
Number of positions	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PCB hole count	5	3	5	5	3	3	5	3
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1
