HER206G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HER206G

HER206G: Description2 A, 600 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size160KB，2 Pages; ManufacturerJGD（Jinan Gude Electronic Device）; Websitehttp://www.jgd.com.cn/

Download Datasheet Parametric Compare View All

HER206G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HER206G	-	-	View	Buy Now

HER206G Overview

2 A, 600 V, SILICON, RECTIFIER DIODE, DO-15

HER206G Parametric

Parameter Name	Attribute value
Maker	JGD（Jinan Gude Electronic Device）
package instruction	O-PALF-W2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	55 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

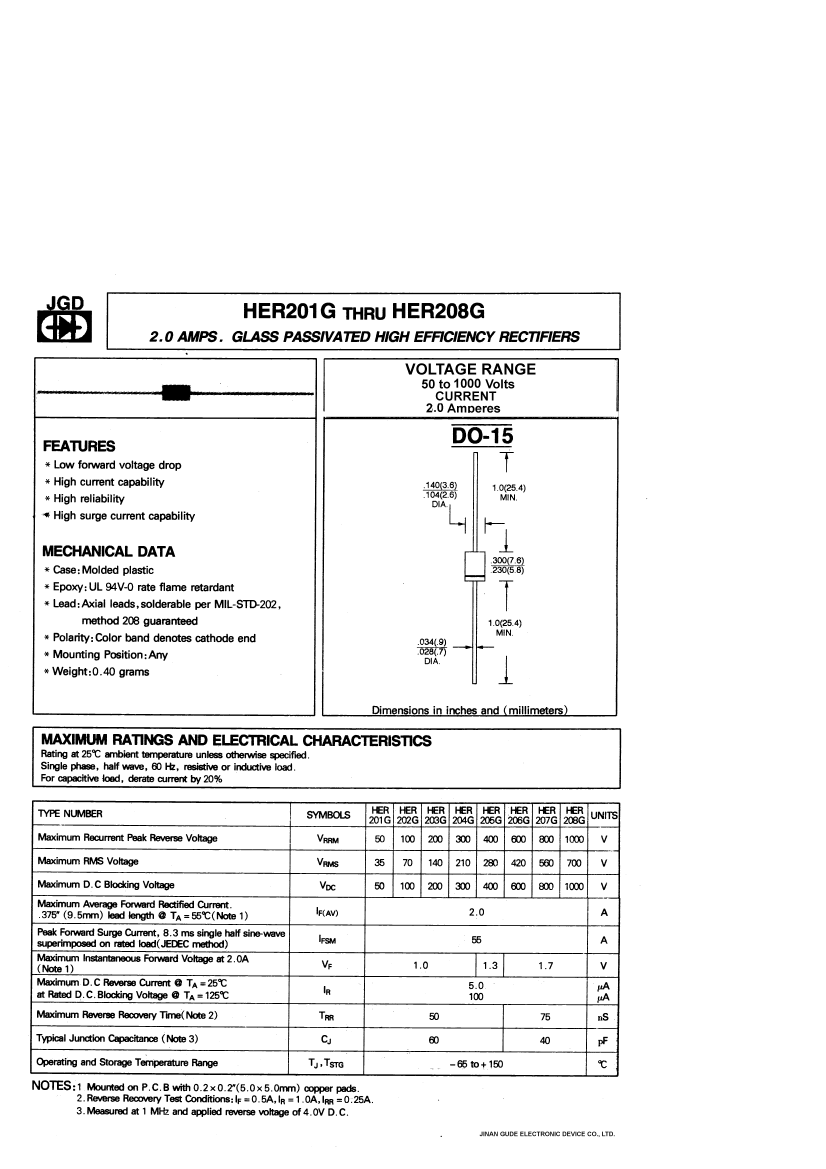

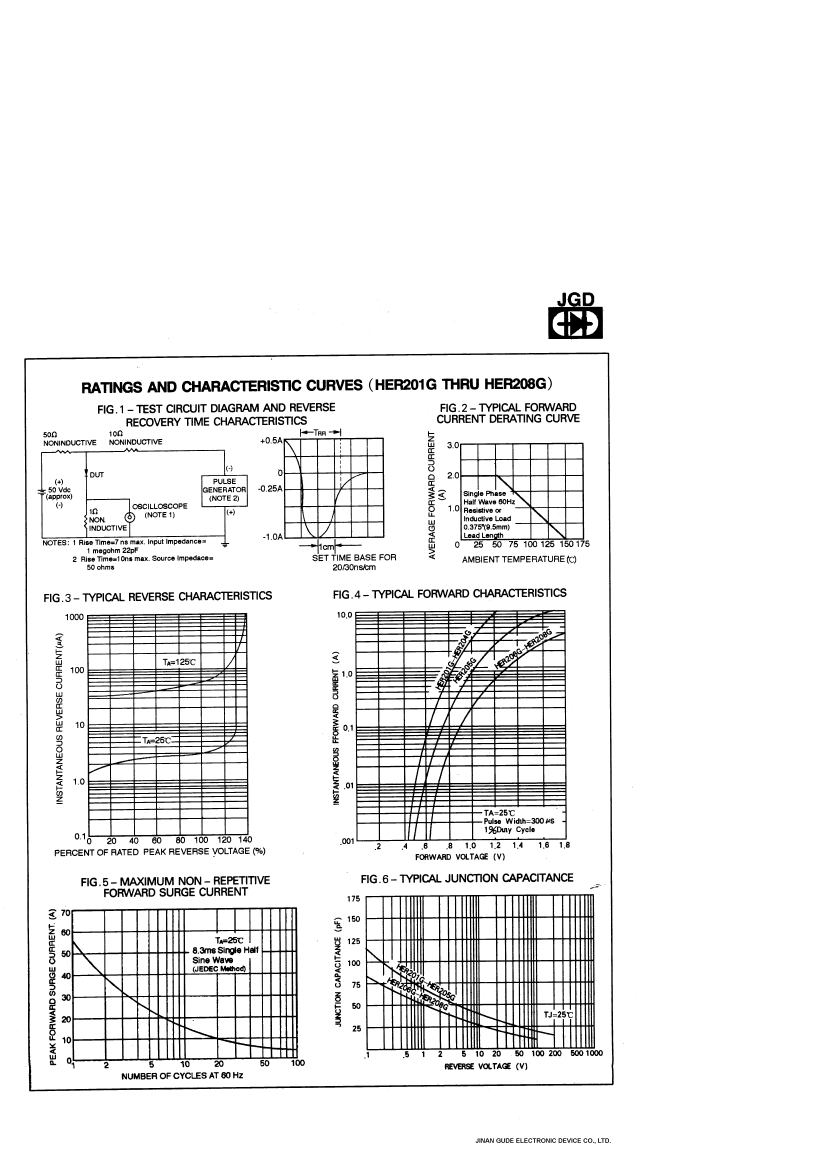

Preview

Download Datasheet

View All

HER206G Related Products

	HER206G	HER201G	HER204G	HER207G	HER208G
Description	2 A, 600 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 300 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 800 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 1000 V, SILICON, RECTIFIER DIODE, DO-15
Maker	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1 V	1 V	1.7 V	1.7 V
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	55 A	55 A	55 A	55 A	55 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	600 V	50 V	300 V	800 V	1000 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.075 µs	0.05 µs	0.05 µs	0.075 µs	0.075 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
