88E1145-E1-BBM1C000 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 88E1145-E1-BBM1C000

88E1145-E1-BBM1C000: DescriptionEthernet Transceiver, PACKAGE; CategoryWireless rf/communication Telecom circuit; File Size117KB，2 Pages; ManufacturerMarvell; Websitehttp://www.marvell.com

Download Datasheet Parametric View All

88E1145-E1-BBM1C000 Overview

Ethernet Transceiver, PACKAGE

88E1145-E1-BBM1C000 Parametric

Parameter Name	Attribute value
Maker	Marvell
package instruction	,
Reach Compliance Code	compliant
Number of functions	1
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Telecom integrated circuit types	ETHERNET TRANSCEIVER
Terminal form	UNSPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Transceiver

Solutions

Alaska

Quad

Gigabit Ethernet Transceiver

88E1141/88E1145

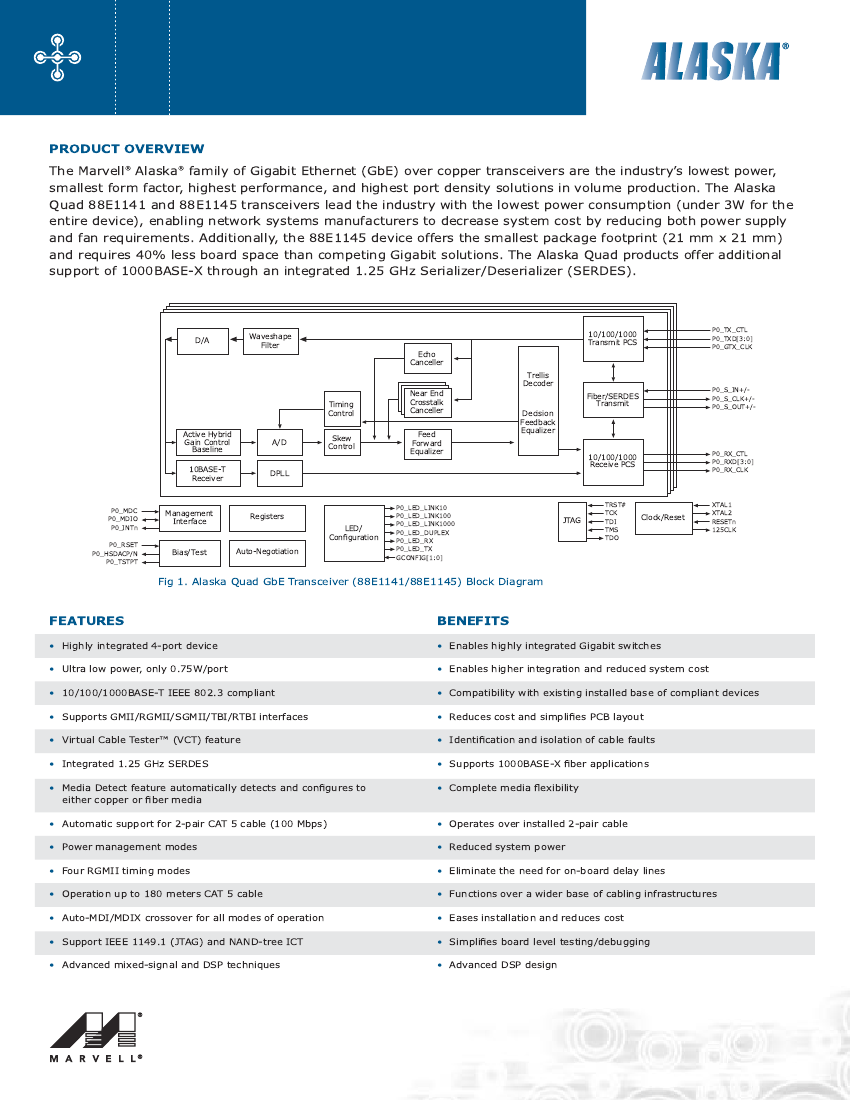

PRODUCT OVERVIEW

The Marvell

Alaska

family of Gigabit Ethernet (GbE) over copper transceivers are the industryÕs lowest power,

smallest form factor, highest performance, and highest port density solutions in volume production. The Alaska

Quad 88E1141 and 88E1145 transceivers lead the industry with the lowest power consumption (under 3W for the

entire device), enabling network systems manufacturers to decrease system cost by reducing both power supply

and fan requirements. Additionally, the 88E1145 device offers the smallest package footprint (21 mm x 21 mm)

and requires 40% less board space than competing Gigabit solutions. The Alaska Quad products offer additional

support of 1000BASE-X through an integrated 1.25 GHz Serializer/Deserializer (SERDES).

D/A

Waveshape

Filter

Echo

Canceller

Near End

Crosstalk

Canceller

Feed

Forward

Equalizer

Trellis

Decoder

Decision

Feedback

Equalizer

10/100/1000

Transmit PCS

P0_TX_CTL

P0_TXD[3:0]

P0_GTX_CLK

Timing

Control

Active Hybrid

Gain Control

Baseline

10BASE-T

Receiver

P0_MDC

P0_MDIO

P0_INTn

P0_RSET

P0_HSDACP/N

P0_TSTPT

Fiber/SERDES

Transmit

P0_S_IN+/-

P0_S_CLK+/-

P0_S_OUT+/-

A/D

DPLL

Skew

Control

10/100/1000

Receive PCS

P0_RX_CTL

P0_RXD[3:0]

P0_RX_CLK

Management

Interface

Bias/Test

Registers

LED/

ConÞguration

Auto-Negotiation

P0_LED_LINK10

P0_LED_LINK100

P0_LED_LINK1000

P0_LED_DUPLEX

P0_LED_RX

P0_LED_TX

GCONFIG[1:0]

JTAG

TRST#

TCK

TDI

TMS

TDO

Clock/Reset

XTAL1

XTAL2

RESETn

125CLK

Fig 1. Alaska Quad GbE Transceiver (88E1141/88E1145) Block Diagram

FEATURES

Highly integrated 4-port device

Ultra low power, only 0.75W/port

10/100/1000BASE-T IEEE 802.3 compliant

Supports GMII/RGMII/SGMII/TBI/RTBI interfaces

Virtual Cable Testerª (VCT) feature

Integrated 1.25 GHz SERDES

Media Detect feature automatically detects and conÞgures to

either copper or Þber media

Automatic support for 2-pair CAT 5 cable (100 Mbps)

Power management modes

Four RGMII timing modes

Operation up to 180 meters CAT 5 cable

Auto-MDI/MDIX crossover for all modes of operation

Support IEEE 1149.1 (JTAG) and NAND-tree ICT

Advanced mixed-signal and DSP techniques

BENEFITS

Enables highly integrated Gigabit switches

Enables higher integration and reduced system cost

Compatibility with existing installed base of compliant devices

Reduces cost and simpliÞes PCB layout

IdentiÞcation and isolation of cable faults

Supports 1000BASE-X Þber applications

Complete media ßexibility

Operates over installed 2-pair cable

Reduced system power

Eliminate the need for on-board delay lines

Functions over a wider base of cabling infrastructures

Eases installation and reduces cost

SimpliÞes board level testing/debugging

Advanced DSP design
