DS54-0001-RTR: Description824MHz - 960MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.2dB INSERTION LOSS, PLASTIC, SOW-16; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

DS54-0001-RTR Overview

824MHz - 960MHz RF/MICROWAVE SPLITTER AND COMBINER, 1.2dB INSERTION LOSS, PLASTIC, SOW-16

DS54-0001-RTR Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	824 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.75
Base Number Matches	1

Preview

Download Datasheet

View All

DS54-0001

Low Cost Four-Way SMT Power

Splitter/Combiner, 824-960 MHz

Features

•

Small Size and Low Profile

Industry Standard SOW-16 SMT Plastic Package

Excellent Repeatability (Lot-to-Lot Variation)

Typical Isolation: 23 dB

Typical Amplitude Balance: 0.3 dB

Low Cost

Typical Insertion Loss: 1.0dB

SOW-16

Description

M/A-COM’s DS54-0001is an IC-based monolithic power

splitter/combiner in a low cost SOW-16 plastic package. This

device is ideally suited for applications where PCB real estate is

at a premium and standard packaging for automated assembly

and low cost are critical.

Typical applications include

infrastructure, portables and peripheral devices (PCMCIA cards)

for wireless standards such as GSM, AMPS, CDPD, RAM and

ARDIS. Available in tape and reel.

The DS54-0001 is fabricated using a passive-integrated circuit

process. The process features full-chip passivation for increased

performance and reliability.

Ordering Information

Part Number

DS54-0001

DS54-0001-TR

DS54-0001-RTR

Package

SOW-16 Lead Plastic Package

Forward Tape and Reel

Reverse Tape and Reel

1. If specific reel size is required, consult factory for part number

assignment.

Typical Electrical Specifications

, T

= +25°C

Parameter

Insertion Loss

Isolation

VSWR

Input

VSWR

Output

Amplitude Balance

Phase Balance

Above 6.0dB

Units

—

Min

—

Typ

1.0

1.2:1

1.4:1

0.3

Max

1.2

—

1.4:1

1.75:1

0.7

1. All specifications apply with a 50-Ohm source and load impedance.

Specifications subject to change without notice.

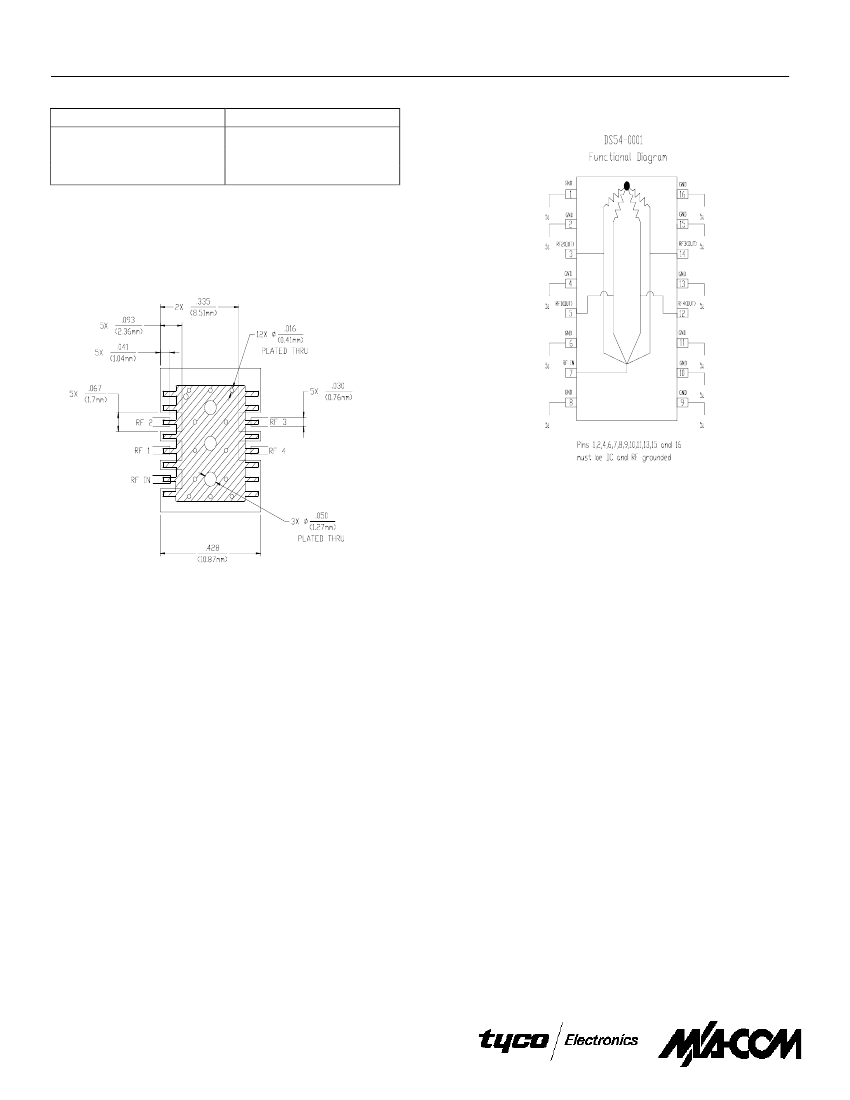

V 2.0

North America:

Tel. (800) 366-2266, Fax (800) 618-8883

Asia/Pacific:

Tel.+81-44-844-8296, Fax +81-44-844-8298

Europe:

Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

Visit www.macom.com for additional data sheets and product information.
