DN501

Description
Infrared LED, 1.65mm, 1-Element, 850nm, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size286KB，4 Pages
ManufacturerStanley Electric Co
Download Datasheet Parametric Compare View All

DN501 Overview

Infrared LED, 1.65mm, 1-Element, 850nm, 2 PIN

DN501 Parametric

Parameter NameAttribute value
MakerStanley Electric Co
package instruction2 PIN
Reach Compliance Codeunknown
ConfigurationSINGLE
Maximum forward current0.05 A
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesINFRARED LED
Nominal output power10 mW
peak wavelength850 nm
shapeROUND
size1.65 mm
Base Number Matches1

Preview

Download Datasheet

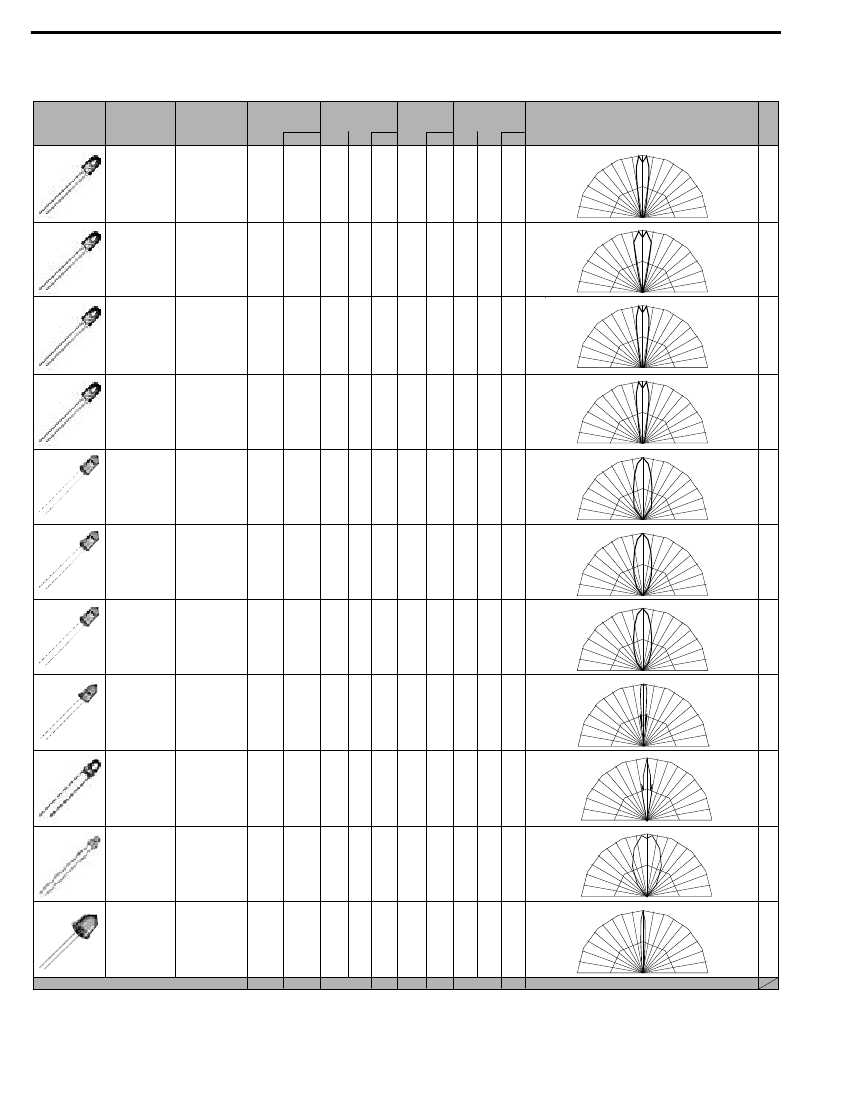

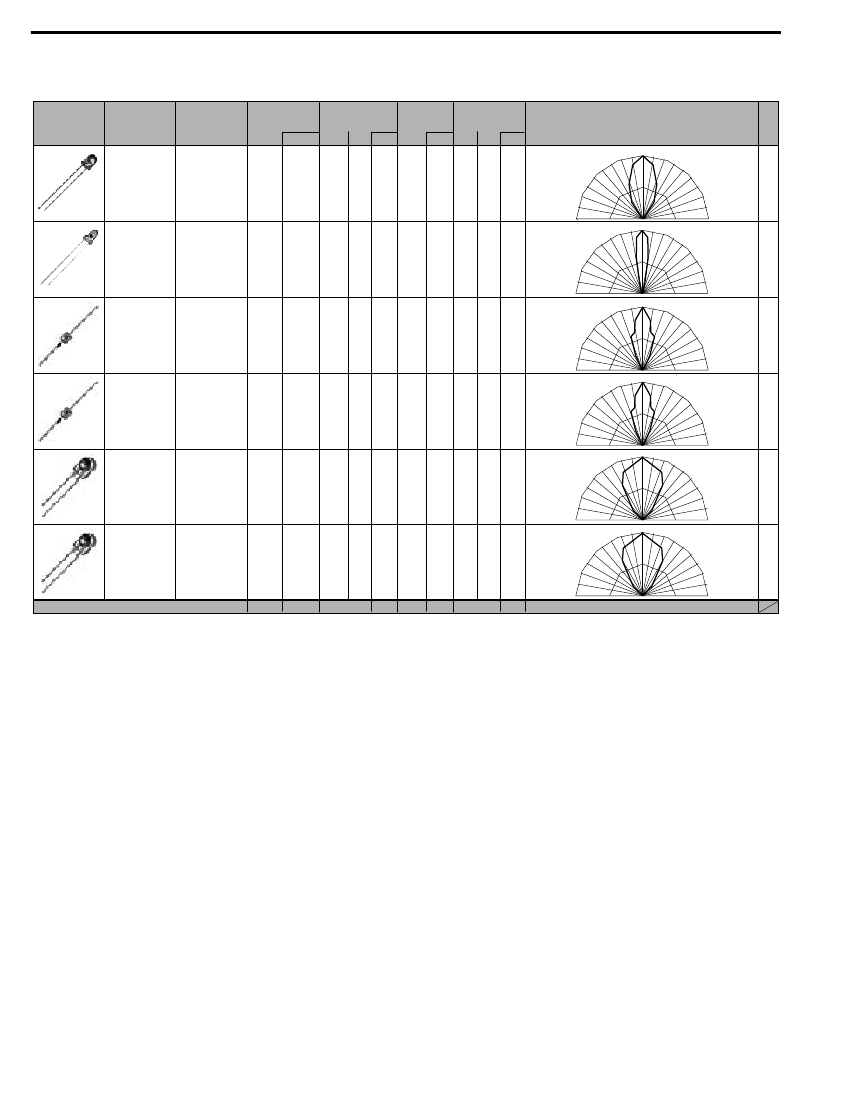

THROUGH-HOLE SHAPE - INFRARED LED
n
Infrared LED
Shape
Part No.
Features
Peak
Wavelength
l
P
TYP.
I
F
Radiant Intensity
I
E
MIN.
TYP.
I
F
Output Power
Po
TYP.
I
F
Cut-Off Frequency
Fc
MIN. TYP.
1
F
Spatial Distribution
(The typical distribution example of
each shape is shown below)
0∞
30∞
30∞
Ta= 25°C
fig.
*
DNH318U
Hi-speed
100MHz
f5
package
850
50
10
20
50
5
50
70
100
50
60∞
0.5
60∞
1
90∞
90∞
0∞
30∞
30∞
*
DNK318U
Hi-speed
Hi-power output
f5
package
870
50
40
80
50
20
50
40
55
50
60∞
0.5
60∞
1
90∞
90∞
0∞
30∞
30∞
*
DNF318U-4
Hi-speed
f5
package
850
50
30
60
50
13
50
20
30
50
60∞
0.5
60∞
1
90∞
90∞
0∞
30∞
30∞
*
DNP318U-4
Hi-output
f5
package
880
50
30
60
50
13
50
—
12
50
60∞
0.5
60∞
1
90∞
90∞
0∞
*
DNK324U
Hi-speed
Hi-power output
Wide distribution
f5
package
30∞
30∞
870
50
15
30
50
22
50
40
55
50
60∞
0.5
60∞
2
90∞
90∞
0∞
30∞
30∞
*
DNF324U-4
Hi-speed
Wide distribution
f5
package
850
50
15
30
50
13
50
20
30
50
60∞
0.5
60∞
2
90∞
90∞
0∞
30∞
30∞
*
DNP324U-8
Hi-output
Wide distribution
f5
package
880
50
21
35
50
18
50
—
12
50
60∞
0.5
60∞
2
90∞
90∞
0∞
*
DNP325-4
Hi-radiant
intensity
Narrow
distribution
f5
package
30∞
30∞
880
50
40
80
50
13
50
—
12
50
60∞
0.5
60∞
3
90∞
90∞
0∞
30∞
30∞
*
DNP319
f3
package
880
50
20
40
50
14
50
—
12
50
90∞
60∞
0.5
60∞
4
90∞
*
DNP331
Wide distribution
f3
package
880
50
10.5
21
50
16
50
—
12
50
90∞
60∞
0∞
30∞
30∞
0.5
60∞
5
90∞
*
DNF320-4
0∞
Hi-radiant
intensity
Narrow
distribution
f
10 package
30∞
30∞
850
50
100
200
50
13
50
20
30
50
60∞
0.5
60∞
6
90∞
90∞
Unit
nm
mA
mW/sr
mA
mW
mA
MHz
mA
v
All above products contain no lead
* Lead-free soldering compatible product
18

DN501 Related Products

DN501 DNF318U-4 DNF320-4 DNP318U-4 DNF324U-4 DNK324U DNH318U DNP319 DNP331
Description Infrared LED, 1.65mm, 1-Element, 850nm, 2 PIN Infrared LED, 5mm, 1-Element, 850nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 10mm, 1-Element, 850nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 5mm, 1-Element, 880nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 5mm, 1-Element, 850nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 5mm, 1-Element, 870nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 5mm, 1-Element, 850nm Infrared LED, 3.1mm, 1-Element, 880nm, ROHS COMPLIANT, PLASTIC PACKAGE-2 Infrared LED, 3.1mm, 1-Element, 880nm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.05 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Number of functions 1 1 1 1 1 1 1 1 1
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C - -30 °C -30 °C -30 °C
Optoelectronic device types INFRARED LED INFRARED LED INFRARED LED INFRARED LED INFRARED LED INFRARED LED INFRARED LED INFRARED LED INFRARED LED
Nominal output power 10 mW 13 mW 13 mW 13 mW 13 mW 22 mW 5 mW 14 mW 16 mW
peak wavelength 850 nm 850 nm 850 nm 880 nm 850 nm 870 nm 850 nm 880 nm 880 nm
shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
size 1.65 mm 5 mm 10 mm 5 mm 5 mm 5 mm 5 mm 3.1 mm 3.1 mm
Maker Stanley Electric Co Stanley Electric Co Stanley Electric Co Stanley Electric Co Stanley Electric Co - Stanley Electric Co Stanley Electric Co Stanley Electric Co
package instruction 2 PIN ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2 - ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2
Base Number Matches 1 1 1 1 1 1 - - -
Is it lead-free? - Lead free Lead free Lead free Lead free Lead free - Lead free Lead free
Is it Rohs certified? - conform to conform to conform to conform to conform to incompatible conform to conform to
