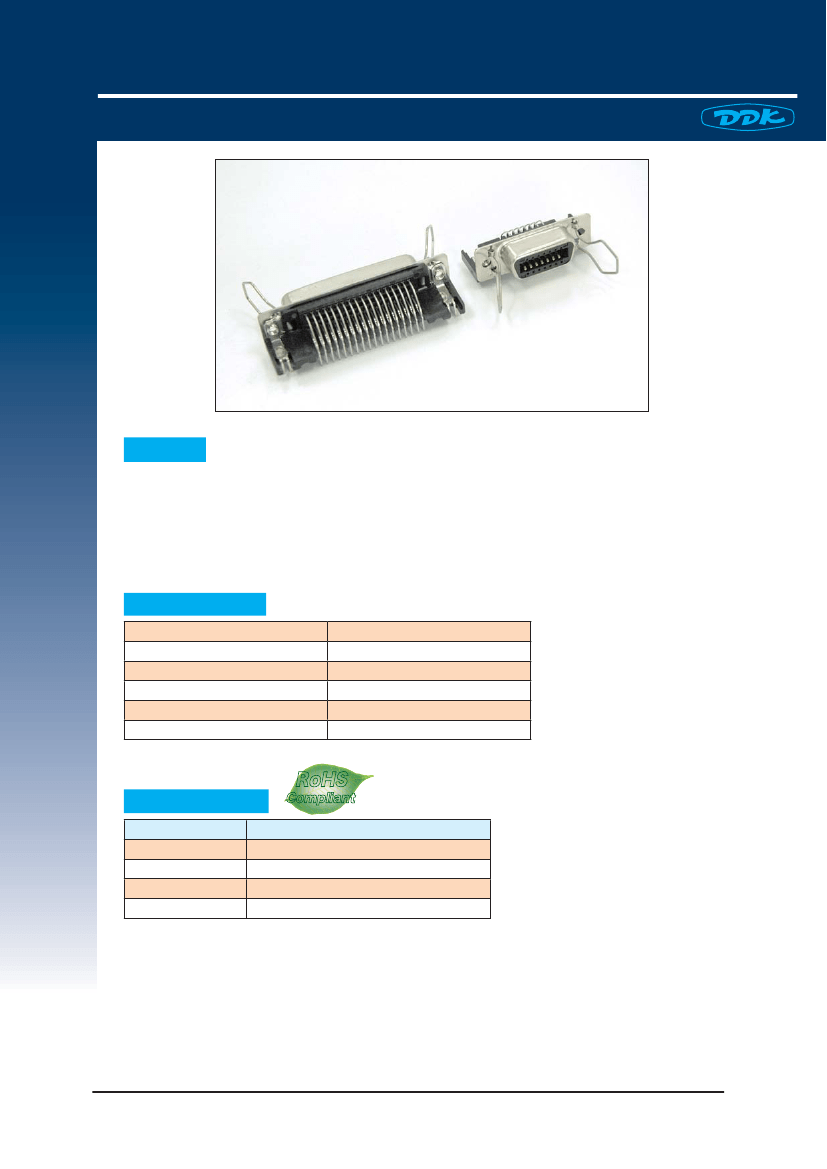

Right Angle Solder Termination Connectors
57RE Series
OUTLINE
・57RE series is light-weight and low cost version of 57LE series to unify end disc latches with shell
and insulator with locator.
・ Metalized shell for EMI Shield
・ Intermatable with each 57, 57F, 57FE, 57JE series plug connectors.
・ UL applied (File No. E72124)
SPECIFICATIONS
Rated Voltage
Rated Current
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
500V AC（r.m.s.）
3A / Contact
1200V AC（r.m.s.）at 1 minute
1000M Ω (min.) at 500V DC
35m Ω (max.)
-55℃∼ 105℃
RoHS
MATERIAL/FINISH
ITEM
Insulator
Shell
Contact
Bail Lock
Compliant
Compliant
MATERIAL/FINISH
PBT Resin(UL94V-0) / Black
Steel or Brass / Ni Plating
Copper Alooy / Au over Ni Plating
Stainless Steel
090702
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
57RE Series
Unit：mm

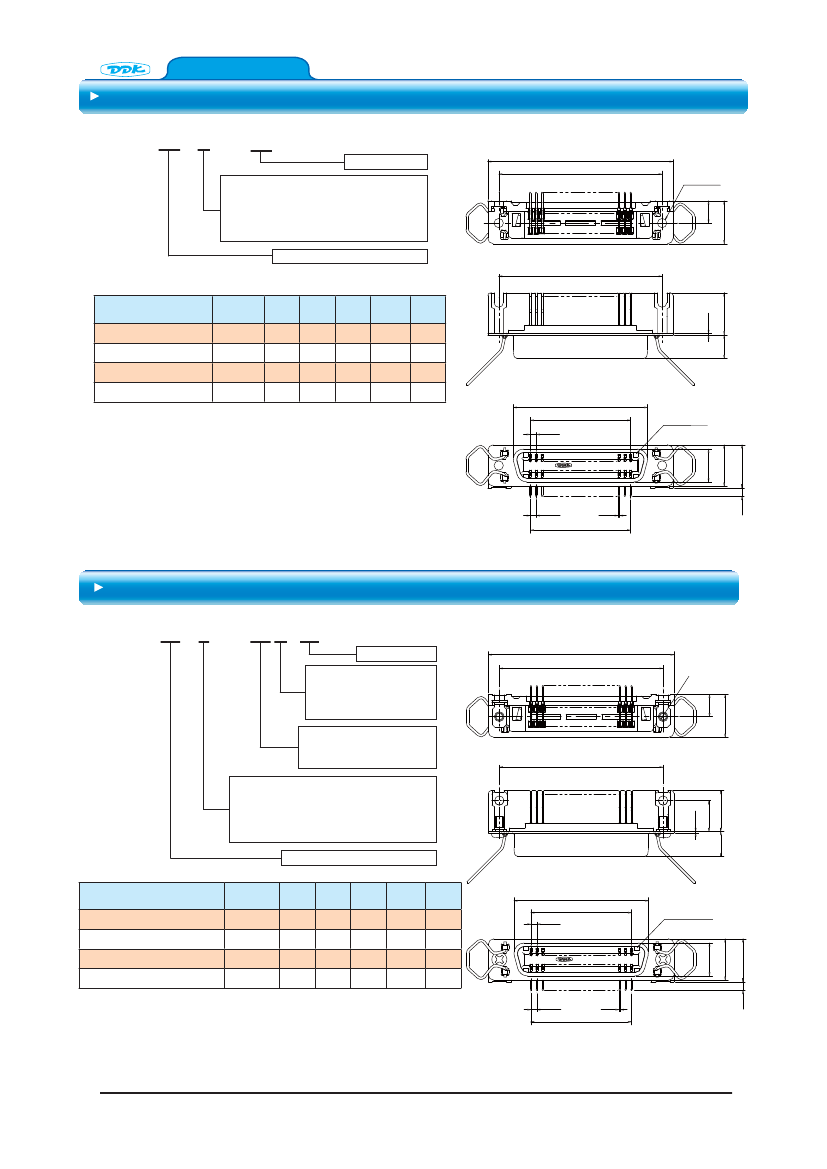

○ Standard Type (Less Ground Tab)
57RE-40360-830B-FA
FA: Lead Free
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
Number of Contact：14, 24, 36, 50
A
B
φ3.4 hole
8.13
B
0.50
C
D
Contact No.
Part Number
57RE-40140- □ 30B-FA
57RE-40240- □ 30B-FA
57RE-40360- □ 30B-FA
57RE-40500- □ 30B-FA
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
D
E
35.30
46.08
59.04
74.15
24
36
50
36.23 23.749
49.05 36.703
64.22 51.816
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 1
(Refer to page 5.)
n/2
2.159
12.00
15.10
15.10
15.68
3.20
15.68
15.68
3.20
Ｍ × ５ Thread
３ ０．
Contact No.
+1
1
n
+1
2.159
D
0.50

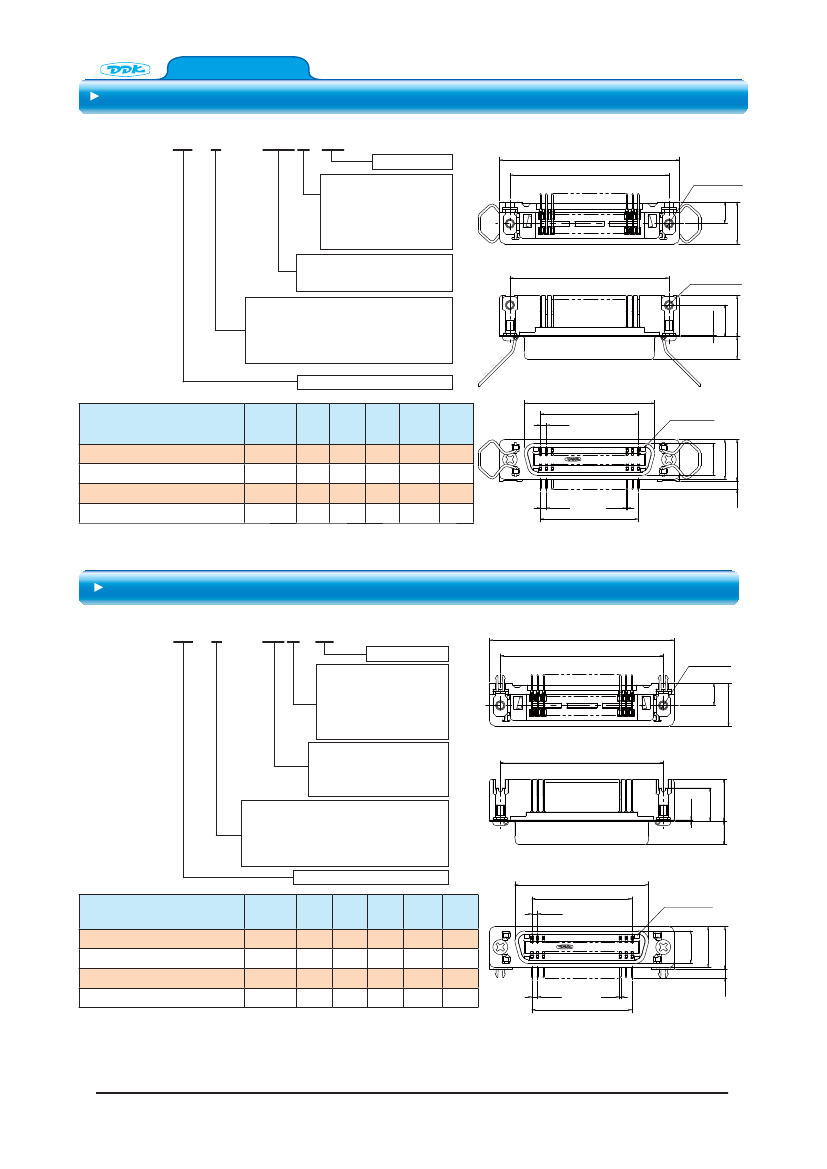

○ With Thru-hole Ground Tab
57RE-40360-830B(D3B)-FA
FA：Lead Free
Panel Mounting Screw
No Digit:: Steel acrew Attached
A: Steel screw Assembled
B: Less Screw
Deviation
(D3): Thru-hole Ground Tab
M3 0.5 Thread Type
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
Number of Contact：14, 24, 36, 50
A
B
B
Part Number
57RE-40140- □ 30B（D3 □ )-FA
57RE-40240- □ 30B（D3 □ )-FA
57RE-40360- □ 30B（D3 □ )-FA
57RE-40500- □ 30B（D3 □ )-FA
Number of
Contact
14
24
36
50
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
D
E
35.30
46.08
59.04
n
n/2
C
D
2.159
25.36 12.954
36.23 23.749
49.05 36.703
64.22 51.816
74.15
2.159
0.50
D
※ The connector as above drawing is assembled panel maounting screws.
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 1
(Refer to page 5.)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
12.00
1
11.30
14.90
9.10
0.50
8.13
8.60
14
25.36 12.954
15.40
Number of
Contact
15.68
57RE Series
Unit：mm
○ With M3 0.5 Threaded Ground Tab
57RE-40360-830B(D12B)-FA
FA: Lead Free
Panel Mounting Screw
No Digit: Brass Screw Attached
A: Brass Screw Assembled
B: Less Screw
C: Steel Screw Attached
D: Steel Screw Assembled
Deviation
(D12): M3 0.5 Threaded Ground Tab
M3 0.5 Thread Type
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
A
B
Ｍ × ５ Thread
３ ０．
8.13
B
0.50
11.80
C
D
Ｍ × ５Thread
３ ０．
Number of Contact：14, 24, 36, 50
Part Number
57RE-40140- □ 30B（D12 □）-FA
57RE-40240- □ 30B（D12 □）-FA
57RE-40360- □ 30B（D12 □）-FA
57RE-40500- □ 30B（D12 □）-FA
Number of
Contact
14
24
36
50
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
D
E
n/2
2.159
Contact No.
25.36 12.954 35.30
36.23 23.749 46.08
49.05 36.703 59.04
n
+1
12.00
15.10
2.159
0.50
D
64.22 51.816 74.15
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 1
(Refer to page 5.)
※ The connector as above drawing is assembled panel maounting screws.

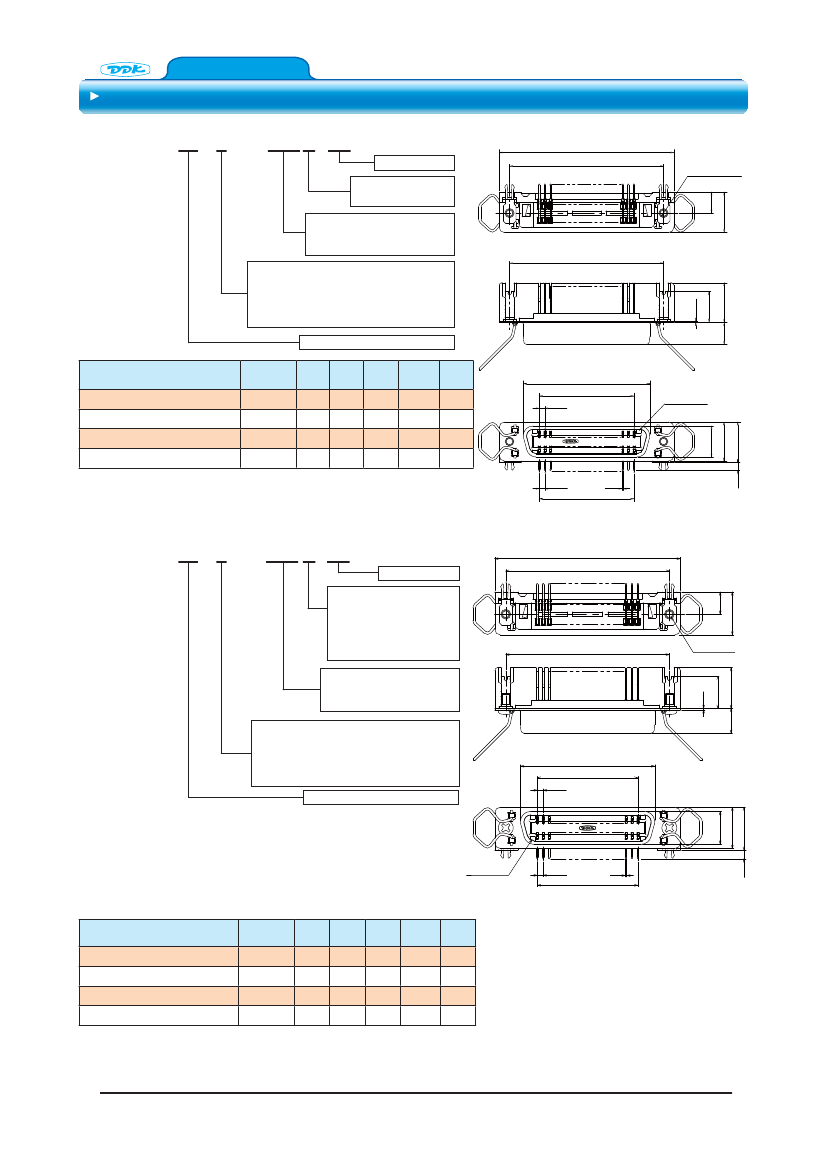

○ With Threaded Board Lock / Less Bail Locks
57RE-40360-830B(D8B)-FA
FA: Lead Free
Panel Mounting Screw
No Digit: Brass Screw Attached
A: Brass Screw Assembled
B: Less Screw
C: Steel Screw Attached
D: Steel Screw Assembled
Deviation
(D8): Threaded Board Lock
M3 0.5 Thread Type
Less Spring Latch
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
Number of Contact：14, 24, 36, 50
A
B
Ｍ × ５ Thread
３ ０．
8.13
B
0.50
11.80
15.10
C
D
2.159
n/2
1
Part Number
57RE-40140- □ 30B（D8 □）-FA
57RE-40240- □ 30B（D8 □）-FA
57RE-40360- □ 30B（D8 □）-FA
57RE-40500- □ 30B（D8 □）-FA
Number of
Contact
14
24
36
50
Contact No.
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
D
E
35.30
46.08
59.04
74.15
12.00
25.36 12.954
36.23 23.749
49.05 36.703
64.22 51.816
n
+1
2.159
D
0.50
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 2
(Refer to page 5.)
※ The connector as above drawing is assembled panel maounting screws.
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
3.20
15.68
8.60
15.40
15.68
3.20
15.68
1
8.60
15.40
15.68
57RE Series
Unit：mm
○ With Threaded Board Lock
57RE-40360-830B(D15B)-FA
FA: Lead Free
Panel Mounting Screw
15.68
15.10
8.60
15.40
A
B
＃ − ０ Ｎ Thread
４ ４Ｕ Ｃ
B: Less Screw
Deviation
(D15): Threaded Board Lock
#4-40UNC Thread Type
B
Contact Plating
11.80
12.00
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
Number of Contact：14, 24, 36, 50
Part Number
57RE-40140- □ 30B（D15 □）-FA
57RE-40240- □ 30B（D15 □）-FA
57RE-40360- □ 30B（D15 □）-FA
57RE-40500- □ 30B（D15 □）-FA
Number of
Contact
14
24
36
50
A
B
C
25.36
36.23
49.05
64.22
D
E
2.159
C
D
Contact No.
44.00 36.00
54.78 46.78
67.74 59.74
82.85 74.85
12.954 35.30
23.749 46.08
36.703 59.04
n
+1
51.816 74.15
2.159
D
0.50
3.20
Ｍ ×0.5 Thread
３
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 2
(Refer to page 5.)
57RE-40360-830B(D29B)-FA
FA: Lead Free
Panel Mounting Screw
No Digit: Brass Screw Attached
A: Brass Screw Assembled
B: Less Screw
C: Steel Screw Attached
D: Steel Screw Assembled
Deviation
(D29): Threaded Board Lock
M3 0.5 Thread Type
Ａ
Ｂ
Ｂ
0.5
11.3
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
Ｃ
Ｄ
2.159
Number of Contact：14, 24, 36, 50
n
+1
Contact No.
2.159
Ｄ
0.5
※ The connector as above drawing is assembled panel maounting screws.
Part Number
57RE-40140- □ 30B（D29 □ )-FA
57RE-40240- □ 30B（D29 □ )-FA
57RE-40360- □ 30B（D29 □ )-FA
57RE-40500- □ 30B（D29 □）-FA
Number of
Contact
14
24
36
50
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
25.36
36.23
49.05
64.22
D
12.954
23.749
36.703
51.816
E
35.30
46.08
59.04
74.15
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 2
(Refer to page 5.)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
3.20
12.0
15.1
15.68
n/2
1
9.1
14.9
8.13
15.68
15.68
n/2
1
0.50
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8.13
57RE Series
Unit：mm

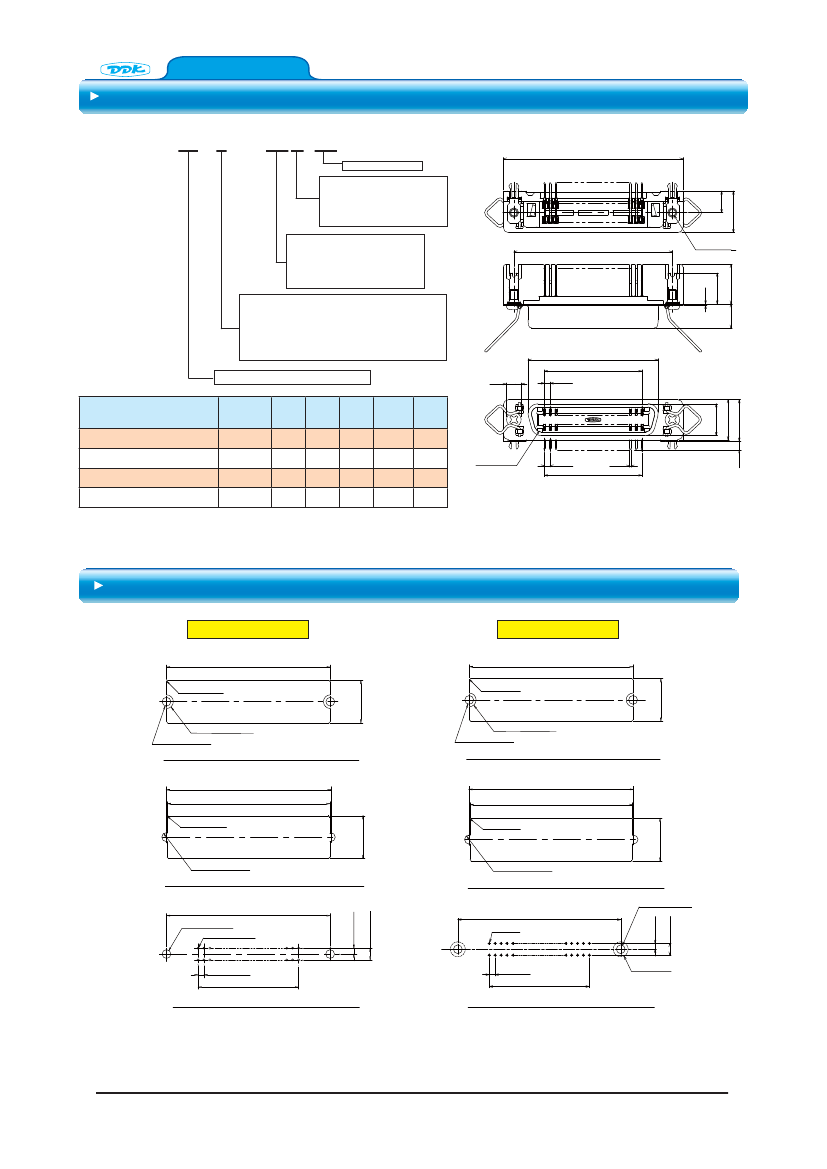

○ With Threaded Board Lock / Small Bail Locks
57RE-40360-830B(D7B)-FA
FA: Lead Free
Panel Mounting Screw
Ａ
B: Less Screw
Deviation
(D7): Threaded Board Lock
M3 0.5 Thread Type
Small Bail Locks
Contact Plating
7：Contact Area: Au(0.38 μ m）over Ni Plating
Tail Area: Sn-Ag over Nickel Plating
8： Contact Area: Au(Flash) over Ni Plating
Tail Area: Sn-Ag over Ni Plating
（Dia. of Screw head）
Ｂ
Ｍ ×0.5 Thread
３
0.5
11.3
Ｃ
Ｄ
2.159
Number of Contact：14, 24, 36, 50
4.2
Part Number
57RE-40140- □ 30B-(D7 □ )-FA
57RE-40240- □ 30B
（D7 □ )-FA
57RE-40360- □ 30B
（D7 □ )-FA
57RE-40500- □ 30B
（D7 □ )-FA
Contact
14
24
36
50
A
B
C
D
E
n
+1
44.00 36.00
54.78 46.78
67.74 59.74
82.85 74.85
25.36 12.954 35.30
36.23 23.749 46.08
49.05 36.703 59.04
64.22 51.816 74.15
Contact No.
2.159
Ｄ
0.5
※ Panel mounting cut-out dimensions, PCB mounting dimensions : Type 2
(Refer to page 5.)
※ The connector as above drawing is assembled panel maounting screws.
○ Panel Cut-out Dimensions & PCB Mounting Dimensions
Type １
B
+0.2
0
Type 2
B
+0.2
0
+0.2
0
Ｒ ５
０．
０(max.)
Ｒ ５
０．
０(max.)
15.50
※１
０
2ー ２．
±０．
Ｒ ５
０
１
０
2ー ２
±０．
３．
０
１
０
2ー ２．
±０．
Ｒ ５
０
１
０
2ー ２
±０．
３．
０
１
Panel Cut-out Dimensions
(Front Mounting)
Thickness １．
６
０(max.)
Panel Cut-out Dimensions
(Front Mounting)
Thickness１．
６
０(max.)
B
±0.1
+0.2
E
0
B
±0.1
E
+0.2
0
+0.2
0
15.50
５
2ー １．
±０．
Ｒ ６
０
０
５
2ー １．
±０．
Ｒ ６
０
０
Panel Cut-out Dimensions
(Rear Mounting)
Thickness 1．
６
０(max.)
Panel Cut-out Dimensions
(Rear Mounting)
Thickness １．
６
０(max.)
2ー ３．
±０．０
φ ２
０
１
（2.145）
4.29
±0.10
（2.145）
０
2ー ３．
±０．
φ ２
０
１
½ φ0.80
±0.10
−
4.29
±0.10
B
±0.10
B
±0.10
½ φ0.80
±0.10
−
2.159
±0.08
D
±0.10
2.159
±0.08
D
±0.10
2-∅5.5 Land
PCB Mounting Dimensions Thickness１．
±0.19
６
０
※１：When the mating connector is 57F or 57FE series,
the size ※1 is 16.20
+0.2
0
PCB Mounting Dimensions Thickness 1．
±0.19
６
０
※１：When the mating connector is 57F or 57FE series
+0.2
the size ※1 is 16.20
0
.
.
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
15.50
※１
※１
+0.2
0
Ｒ ５
０．
０(max.)
Ｒ ５
０．
０(max.)
※１
15.50
+0.2
0
3.20
12.0
15.1
15.68
Number of
n/2
1
9.1
14.9
8.13
15.68
No Digit: Steel Screw Attached
A: Steel Screw Assembled
京公网安备 11010802033920号
EEWORLD
