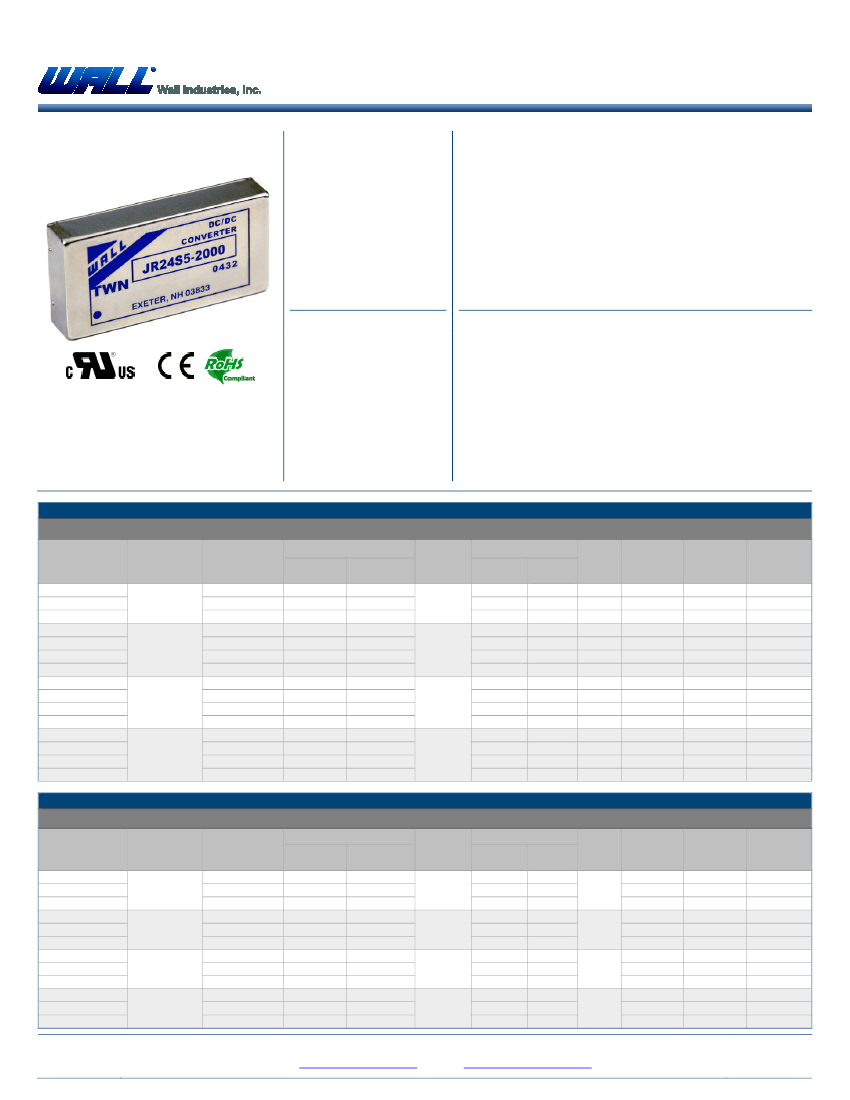

Rev G
JR SERIES
10 Watt
DC/DC Power Converters
Single and Dual Outputs
OPTIONS
•
Positive Remote ON/OFF
(Suffix “P”)
•
Negative Remote ON/OFF
(Suffix “R”)
FEATURES
•
10 Watts Maximum Output
Power
•
Single and Dual Outputs
•
High Efficiency up to 87%
•
No Minimum Load
Requirement
•
1600VDC I/O Isolation
•
Positive or Negative
Remote ON/OFF Control
Option
•
Fixed Switching Frequency
•
Over Voltage, Over Load, and
Short Circuit Protection
•
Extended Operating Temperature
Range Available
•
Six-Sided Continuous Shielding
•
CE Marked
•
RoHS & REACH compliant
•
UL60950-1, EN60950-1, &
IEC60950-1 Safety Approvals
•
UL 94V-0 Compliant
•
2:1 Wide Input Voltage Ranges
APPLICATIONS
•
•
•
•
•
Size: 2in x 1in x 0.4in
(50.8mm x 25.4mm x 10.2mm)
Wireless Networks
Telecom/Datacom
Industry Control Systems
Measurement Equipment
Semiconductor Equipment
DESCRIPTION
The JR series of DC/DC power converters provides 10 watts of
output power in a 2.0” x 1.0” x 0.4” industry standard package and
footprint. This series has single and dual output models with 2:1
wide input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC.
Some features include high efficiency up to 87%, 1600VDC I/O
isolation, and six-sided shielding. All models are also protected
against over voltage, over load, and short circuit conditions. This
series is RoHS and UL94V-0 compliant and has UL60950-1,
EN60950-1, and IEC60950-1 safety approvals. Please call factory
for ordering details.
MODEL SELECTION TABLE
Single Output Models
Model Number
(1)
JR5S5-2000
JR5S12-830
JR5S15-660
JR12S33-2000
JR12S5-2000
JR12S12-830
JR12S15-660
JR24S33-2000
JR24S5-2000
JR24S12-830
JR24S15-660
JR48S33-2000
JR48S5-2000
JR48S12-830
JR48S15-660
Output Current
Input Voltage
Output Voltage
Range
Min Load
(2)
Max Load
(3)
5VDC
(4.5-9VDC)
12VDC
(9-18VDC)
24VDC
(18-36VDC)
48VDC
(36-75VDC)
5VDC
12VDC
15VDC
3.3VDC
5VDC
12VDC
15VDC
3.3VDC
5VDC
12VDC
15VDC
3.3VDC
5VDC
12VDC
15VDC
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
2000mA
830mA
670mA
2000mA
2000mA
830mA
670mA
2000mA
2000mA
830mA
670mA
2000mA
2000mA
830mA
670mA
Ripple &
Noise
(4)
50mVp-p
Input Current
Maximum
Output
Capacitive Efficiency
(4)
Full
Power
No Load
Load
(5)
Load
-
2500mA 10W
7900µF
79%
-
2350mA 10W
2200µF
82%
-
2348mA 10W
1470µF
82%
17mA
724mA 6.6W
6800µF
80%
21mA
1082mA 10W
4700µF
81%
38mA
1037mA 10W
690µF
84%
36mA
1046mA 10W
470µF
84%
15mA
362mA 6.6W
6800µF
80%
22mA
534mA
10W
4700µF
82%
18mA
519mA
10W
690µF
84%
36mA
523mA
10W
470µF
84%
11mA
181mA 6.6W
6800µF
80%
14mA
260mA
10W
4700µF
84%
14mA
253mA
10W
690µF
86%
10mA
252mA
10W
470µF
87%
UL
Approval
(11)
UL60950-1
UL60950-1
UL60950-1
-
-
-
-
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
50mVp-p
50mVp-p
50mVp-p
MODEL SELECTION TABLE
Dual Output Models
Model Number
(1)
JR5D5-1000
JR5D12-420
JR5D15-330
JR12D5-1000
JR12D12-420
JR12D15-330
JR24D5-1000
JR24D12-420
JR24D15-330
JR48D5-1000
JR48D12-420
JR48D15-330
7/9/2019
Output Current
Input Voltage
Output Voltage
Range
Min Load
(2)
Max Load
(3)
5VDC
(4.5-9VDC)
12VDC
(9-18VDC)
24VDC
(18-36VDC)
48VDC
(36-75VDC)
±5VDC
±12VDC
±15VDC
±5VDC
±12VDC
±15VDC
±5VDC
±12VDC
±15VDC
±5VDC
±12VDC
±15VDC
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
±1000mA
±416mA
±333mA
±1000mA
±416mA
±333mA
±1000mA
±416mA
±333mA
±1000mA
±416mA
±333mA
Ripple &
Noise
(4)
75mVp-p
75mVp-p
75mVp-p
75mVp-p
Input Current
Maximum
Output
Capacitive Efficiency
(4)
Full
Power
No Load
Load
(5)
Load
-
2461mA
±5060µF
80%
-
2503mA 10W
±1034µF
80%
-
2393mA
±660µF
81%
39
1042mA
±680µF
84%
47
1053mA 10W
±330µF
83%
45
1041mA
±110µF
84%
28
527mA
±680µF
83%
24
513mA
10W
±330µF
85%
31
520mA
±110µF
84%
16
260mA
±680µF
84%
19
254mA
10W
±330µF
86%
16
256mA
±110µF
85%
UL
Approval
(11)
-
-
-
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
UL60950-1
Page 1 of 8
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Rev G
JR SERIES
10 Watt
DC/DC Power Converters
Single and Dual Outputs
SPECIFICATIONS
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
(1)
Input Reflected Ripple Current
Input Surge Voltage (100ms max)
Input Filter
OUTPUT SPECIFICATIONS
Output Voltage
Voltage Accuracy
Line Regulation
Load Regulation
Output Power
Output Current
Minimum Load
Maximum Capacitive Load
Ripple & Noise
Transient Response Recovery Time
Start-Up Time
Temperature Coefficient
REMOTE ON/OFF CONTROL
(6)
Positive Logic
Negative Logic
Input Current of CTRL Pin
Remote OFF Input Current
PROTECTION
Short Circuit Protection
Over Load Protection
Over Voltage Protection
ENVIRONMENTAL SPECIFICATIONS
Operating Ambient Temperature
(7)
Storage Temperature
Maximum Case Temperature
Thermal Impedance
(8)
Relative Humidity
Thermal Shock
Vibration
MTBF
TEST CONDITIONS
5VDC nominal input models
(minimum order quantities apply)
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
5VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
Min
4.5
9
18
36
Typ
5
12
24
48
30
Max
9
18
36
75
15
36
50
100
Pi Type
Unit
VDC
mAp-p
VDC
Low Line to High Line at Full Load
No Load to Full Load
Single
Dual
-1.0
-0.2
-0.5
-1.0
0
See Table
+1.0
+0.2
+0.5
+1.0
See Table
See Table
See Table
50
75
250
20
+0.02
Open or 3.5~12VDC
Short or 0~1.2VDC
Short or 0~1.2VDC
Open or 3.5~12VDC
+1.0
20
%
%
%
A
mVp-p
µs
ms
%/ºC
Measured by 20MHz bandwidth
25% load step change
Constant resistive load
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
Single
Dual
Power Up
-0.02
-0.5
mA
mA
% of Lout Rated
Zener diode clamp
3.3V output models
5V output models
12V output models
15V output models
With derating
Without derating
Without heat-sink
With heat-sink
-25
-40
-55
Continuous, Automatic recovery
150
%
3.9
6.2
VDC
15
18
+85
+85
+125
+105
ºC
ºC
ºC
ºC/W
% RH
Standard
“T” Version (suffix –I)
Vertical direction by natural
convection (20LFM)
5
MIL-HDBK-217F, Full Load
95
MIL-STD-810F
MIL-STD-810F
3,342,000 hours
12
10
7/9/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 2 of 8
Rev G
JR SERIES
10 Watt
DC/DC Power Converters
Single and Dual Outputs
SPECIFICATIONS
SPECIFICATION
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
GENERAL SPECIFICATIONS
Efficiency
Switching Frequency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Case Material
Base Material
Potting Material
SAFETY & EMC CHARACTERISTICS
Safety Approvals
EMI
(9)
ESD
Radiated Immunity
Fast Transient
(10)
Surge
(10)
Conducted Immunity
EN55022
EN6100-4-2
EN6100-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
1 minute
500VDC
TEST CONDITIONS
Min
270
Typ
300
Max
330
Unit
kHz
VDC
See Table
Input to Output
Input (Output) to Case
1600
1600
1
300
GΩ
pF
0.95oz (27g)
2in x 1in x 0.4in
(50.8mm x 25.4mm x 10.2mm)
Nickel-Coated Copper
Non-Conductive Black Plastic
Epoxy (UL94 V-0)
UL60950-1
(11)
EN60950-1
IEC60950-1
Class B
Air ±8kV and Contact ±6kV
10 V/m
±2kV
±2kV
10 Vr.m.s
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria A
(1)
(2)
(3)
(4)
(5)
(6)
Models with a 4.5~9VDC input voltage range require a minimum order.
Typical value at nominal input voltage and full load.
Maximum value at nominal input voltage and full load
Typical value at nominal input voltage and no load
Test by minimum Vin and constant resistive load
The on/off control pin is referenced to –Vin.
To order positive logic remote on/off, add the suffix “P” to the model number (Ex: JR24S15-660P)
To order negative logic remote on/off, add the suffix “R” to the model number (Ex: JR24S15-660R)
(7) “I” type models are more efficient; therefore they can be operated over a more extensive temperature range than the standard version. To order
extended operating temperature range, add the suffix “-I” o the model number (EX: JR24S15-660-I)
(8) Heatsink is optional and P/N: 7G-0020C-F.
(9) The JR series can meet EN55022 Class A with external capacitors in parallel connected to the input pins.
Recommended: 12Vin: 4.7µF/25V 1210 MLCC
24Vin: 2.2µF/50V 1812 MLCC
48Vin: 1.5µF/100V 1812 MLCC
(10) An external inputp filter capacitor is required if the module has to meet EN691000-4-4, EN61000-4-5. The filter capacitor suffested is Nippon
chemi-con KY series, 220µF/100V, ESR 48mΩ
(11) UL approval can be added to any products not currently listed if required.
NOTES
*Due to advances in technology, specifications subject to change without notice.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
7/9/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 3 of 8
Rev G
JR SERIES
10 Watt
DC/DC Power Converters
Single and Dual Outputs

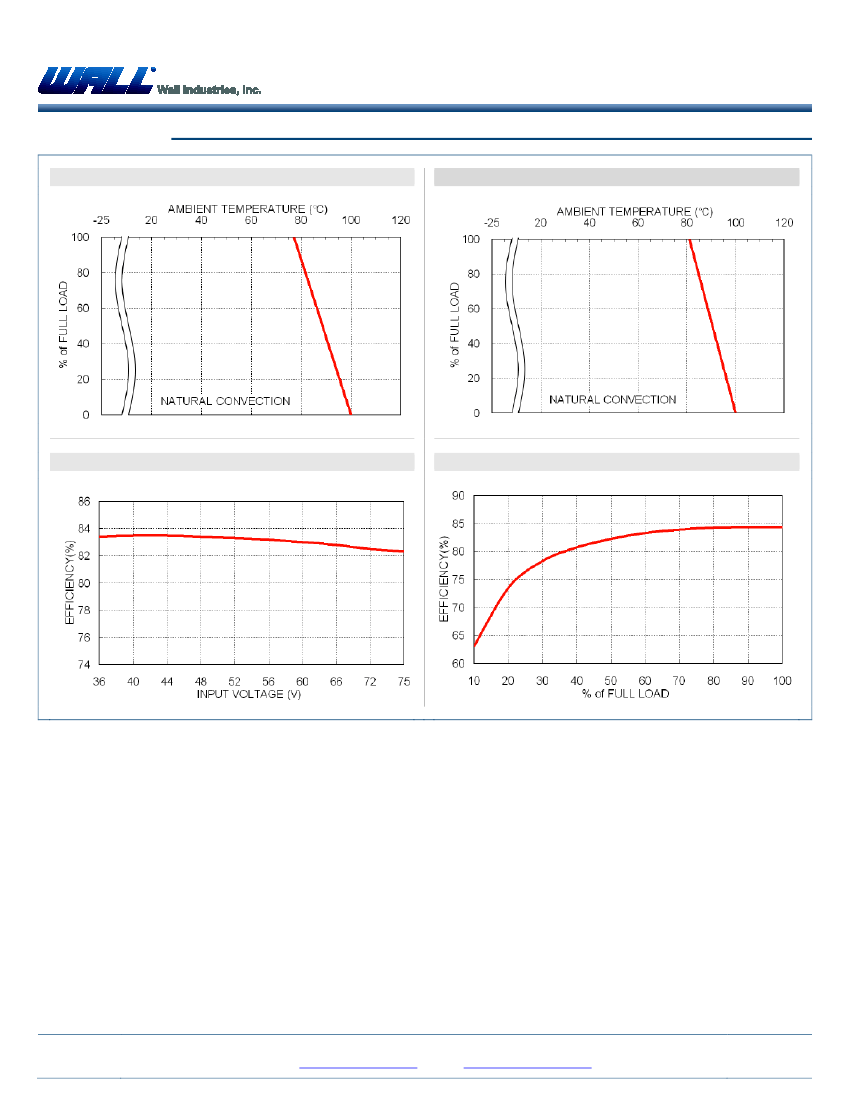

DERATING CURVES
JR48S5-2000 Derating Curve
JR48S5-2000 Derating Curve With Heatsink
JR48S5-2000 Efficiency vs. Input Voltage
JR48S5-2000 Derating Curve Efficiency vs. Output Load
7/9/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 4 of 8
Rev G
JR SERIES
10 Watt
DC/DC Power Converters
Single and Dual Outputs

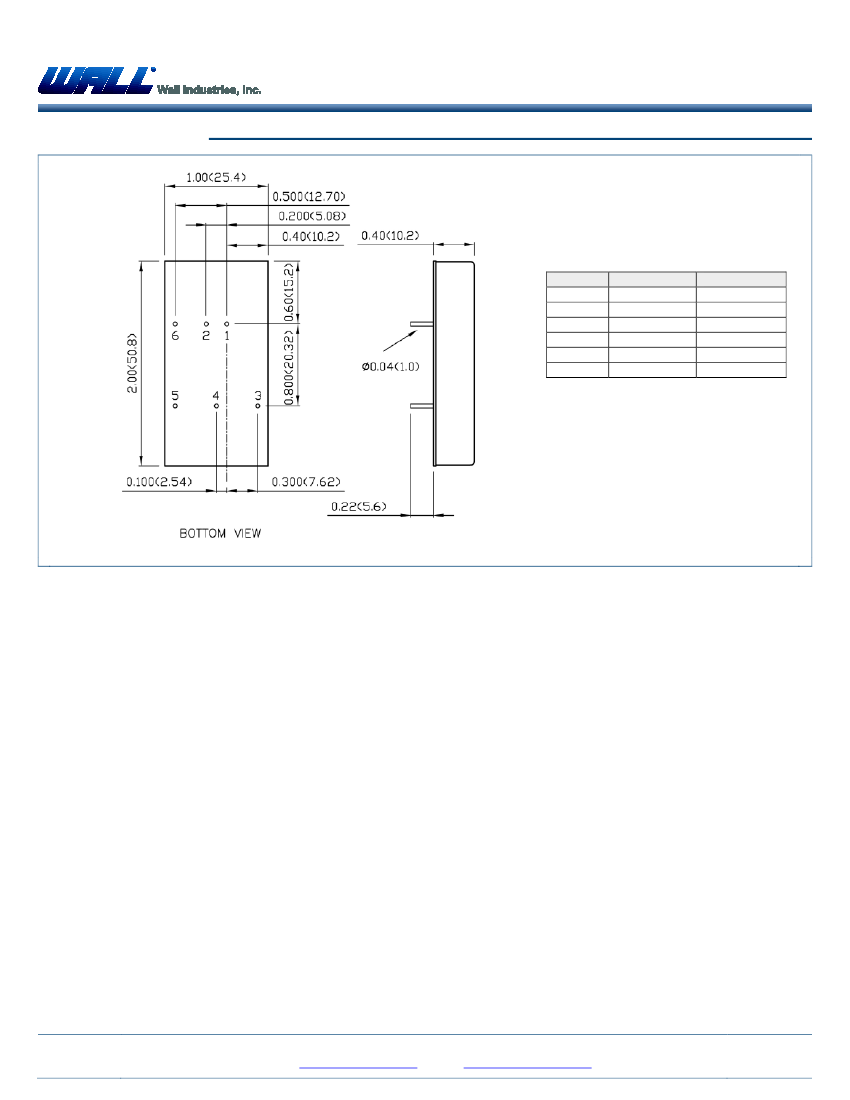

MECHANICAL DRAWINGS
PIN
1
2
3
4
5
6
1.
2.
3.
4.
PIN CONNECTION
SINGLE
DUAL
+Vin
+Vin
-Vin
-Vin
+Vout
+Vout
No Pin
Common
-Vout
-Vout
Ctrl (Option)
Ctrl (Option)
All dimensions in inch (mm)
Tolerance: x.xx0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
Pin pitch tolerance ±0.01 (0.25)
Pin dimension tolerance ±0.004(0.1)
7/9/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 5 of 8
京公网安备 11010802033920号
EEWORLD
