TV32-3025S-13.000-F1-R Overview

Oscillator,

TV32-3025S-13.000-F1-R Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Base Number Matches1
RoHS Compliant
Pb - Lead Free
Ltr
Revisions
Date
Appr
Electrical Specifications:
13.000
16.3676
Nominal Frequency
16.369
19.200
26.000
40.000
Frequency Stability over Temperature
Aging per Year
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Control Voltage
Frequency Stability vs. Supply Change
Frequency Stability vs. Load Change
Frequency Pulling Range
Input Current
Output Waveform
Output Level
Output Load
Transfer Function
±2.5
±1.0
-30 to +75
-40 to +85
+3.0 ± 5%
+0.5 to +2.5
±0. 2
±0. 3
±8.0
2.0
Clipped Sinewave
0.8 p-p
10K // 10 pF
Positive
PPM Min
mA Max
-
V Min
-
-
PPM Max
Vdd
ºC
PPM Max
MHz
Specification Title:
Temperature Compensated
Voltage Controlled Crystal Oscillator
TCVCXO - Ceramic Package
3.2 x 2.5 millimeter Surface Mount
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC

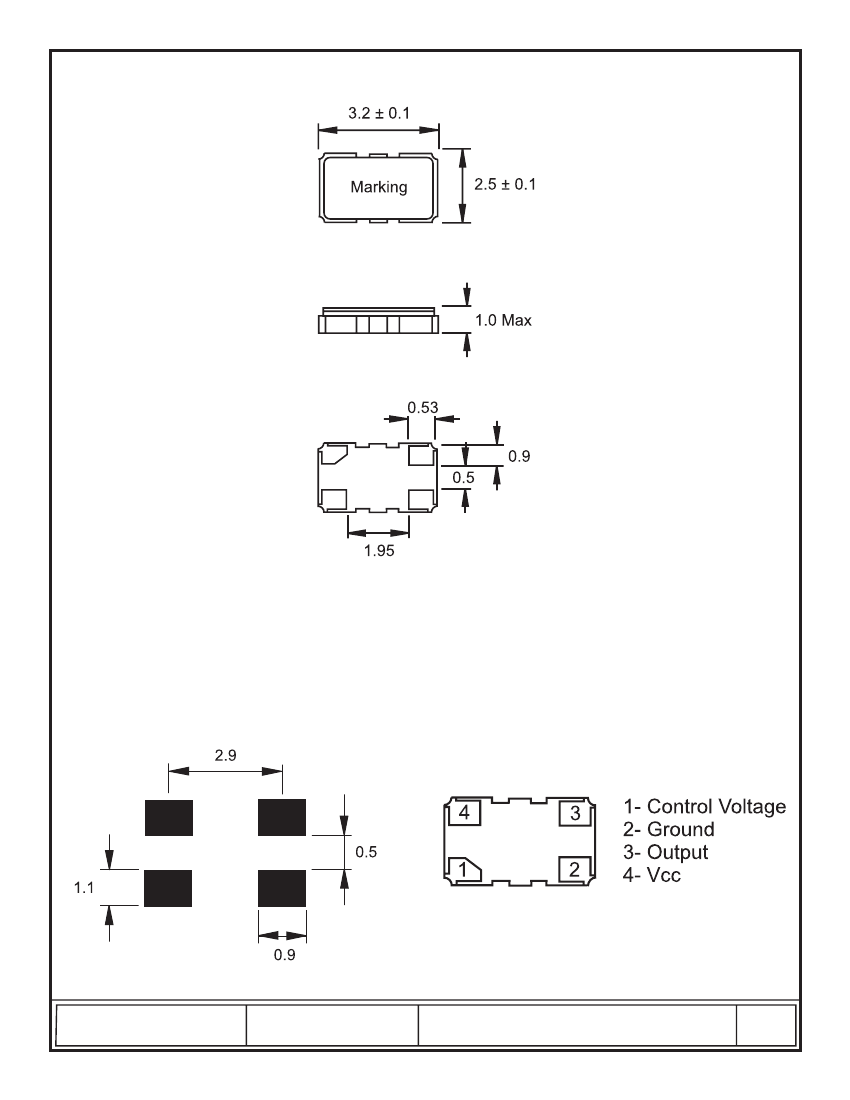

All dimensions are millimeters.
CAD:
TCR
EG
Review:
JL
Appr:
Page:
1/4
Date:
July 10, 2006
Part Number:
www.aker-usa.com
TV32 Series
