Product Brief
HHS60 Series – 60A Half-Brick DC/DC Converter
48V Input
3.3V, 2.5V, 1,8V, 1.5V, 1.2V Outputs
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Open-frame design with Insulated Metal
Substrate
Low profile – 12.7 mm height
Input/output isolation: 1500VDC, meets basic
insulation requirements
Start-up into high capacitive load
Output back-drive capability
Low conducted and radiated EMI
Output overcurrent protection
Output overvoltage protection
Overtemperature protection
Remote sense
Set point accuracy
±
1.0%
Remote on/off, positive or negative logic
Output trim, positive or negative
UL 1950 Recognition, CSA 22.2 No. 950-95
certification, TUV IEC950
Applications
•
•
•
•
Distributed power architectures
Telecommunications equipment
LAN/WAN applications
Data processing applications
Description

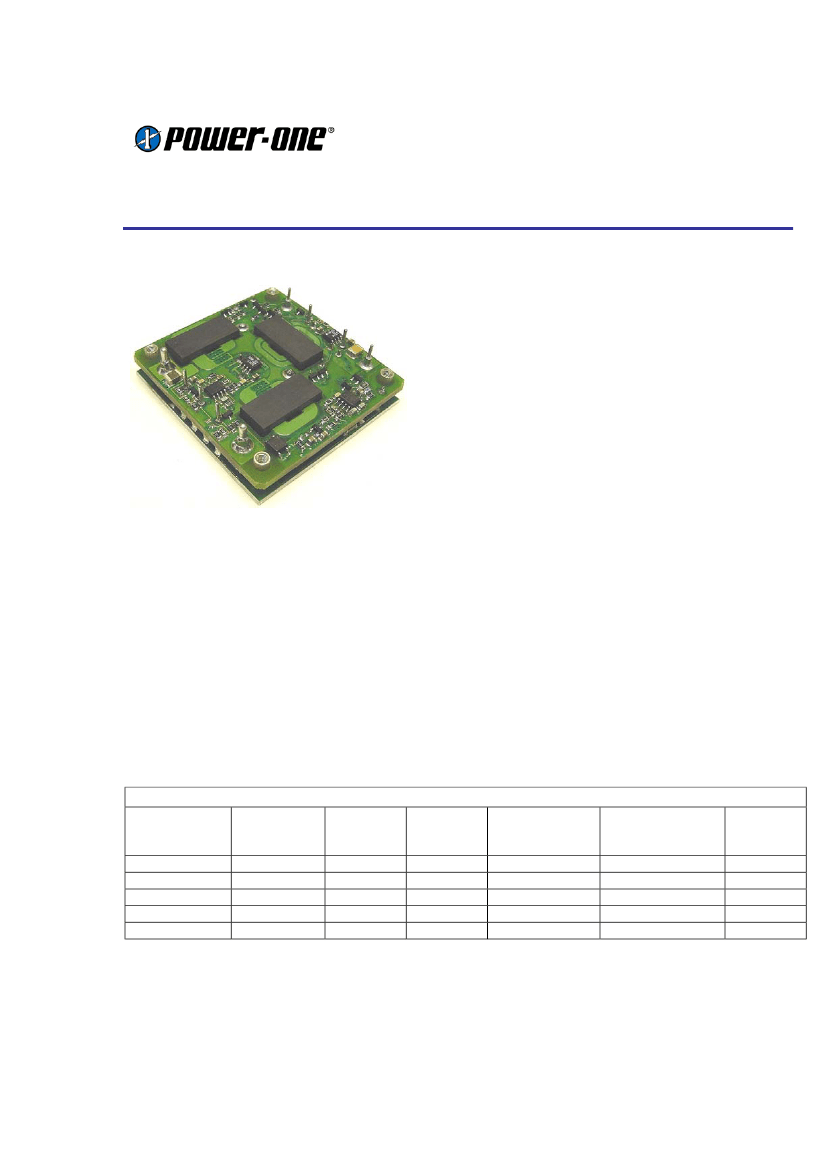

HHS60 single-output DC/DC converters provide up to 60A output current in an industry-standard, half-brick
package. This high-density product converts standard telecom and datacom input voltages to regulated, low
output voltages. The HHS60's leading-edge technology provides high efficiency. Its thermal design enables
delivery of full-rated power at 55°C ambient temperature by using only 200 LFM of forced-air cooling without
the need of a heatsink.
Selection Chart
Model
Input
voltage
VDC
36-75
36-75
36-75
36-75
36-75
Input
current
max, ADC
5.0
4.9
3.6
3.1
3.1
Output
voltage
VDC
3.3
2.5
1.8
1.5
1.2
Output
current
ADC
60
60
60
60
60
Output
ripple/noise (mV
p-p)
200
200
200
200
200
Typical
efficiency
89.0
88.0
86.0
84.0
82.0
HHS60ZE
HHS60ZD
HHS60ZB
HHS60ZA
HHS60ZY
Page 1 of 2
www.power-one.com
Product Brief
HHS60 Series – 60A Half-Brick DC/DC Converter
48V Input
3.3V, 2.5V, 1,8V, 1.5V, 1.2V Outputs

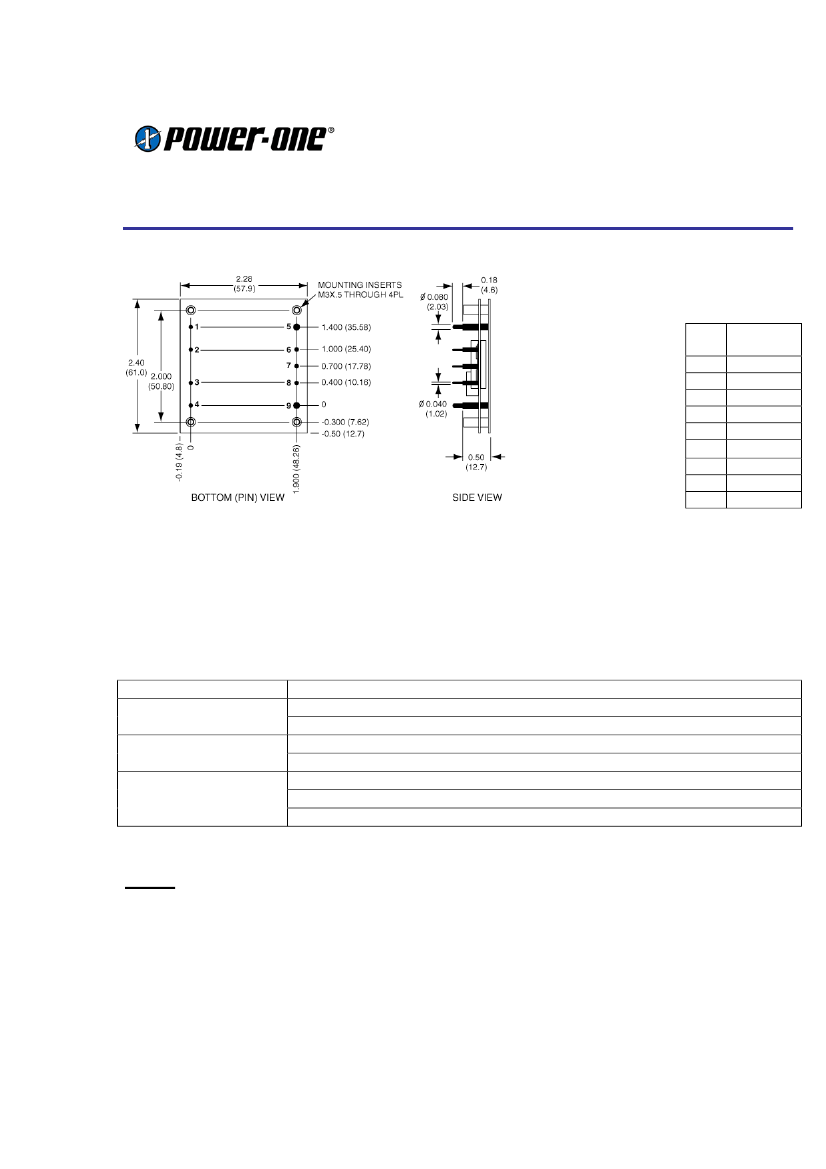

Mechanical Drawing
Pin
#
1
2
3
4
5
6
7
8
9
Function
-Vin
Case
ON/OFF
+Vin
-Vout
-Sense
Trim
+Sense
+Vout
Tolerances:
.xx
±
.020 (.5)
.xxx
±
.010 (.25)
Pin diameter
±
.0.002 (.05)
Ordering Information
Options
Remote On/Off
Trim
Pin Length
Suffixes to add to part number
Positive- Standard, no suffix required
Negative- Add “N” suffix
Negative- Standard, no suffix required
Lucent compatible- Add “T” suffix
0.18”- Standard, no suffix required
0.11”- Add “8” suffix
0.15”- Add “9” suffix
Notes
1.
2.
3.
Consult factory for the complete list of available options.
Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous
environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
Specifications are subject to change without notice.
Page 2 of 2
www.power-one.com
