5962-9750403MXA datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-9750403MXA

5962-9750403MXA: DescriptionDigital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size640KB，16 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-9750403MXA Overview

Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84

5962-9750403MXA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	PGA
package instruction	PGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	2 X 10 BIT DATA INPUT BUS
boundary scan	NO
maximum clock frequency	45.45 MHz
External data bus width	10
JESD-30 code	S-CPGA-P84
JESD-609 code	e0
low power mode	NO
Humidity sensitivity level	3
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	28
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum slew rate	300 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER
Base Number Matches	1

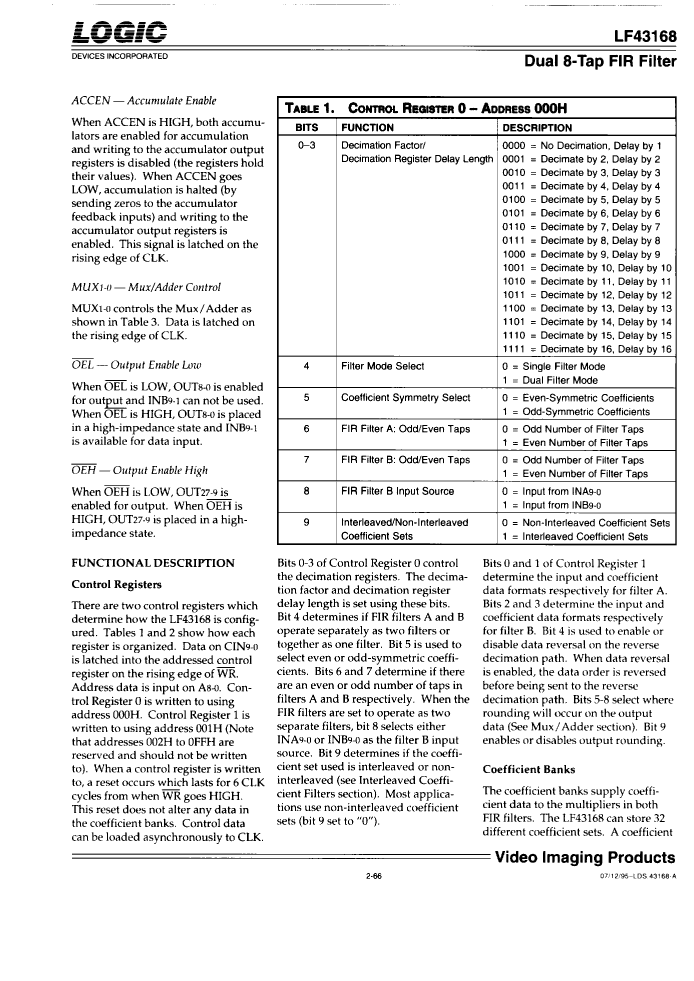

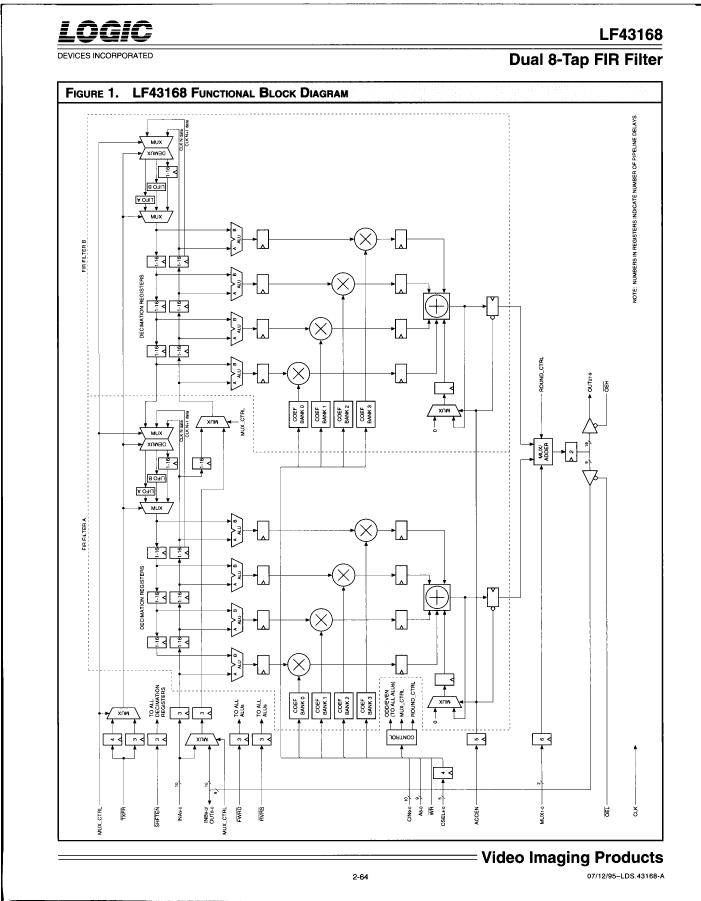

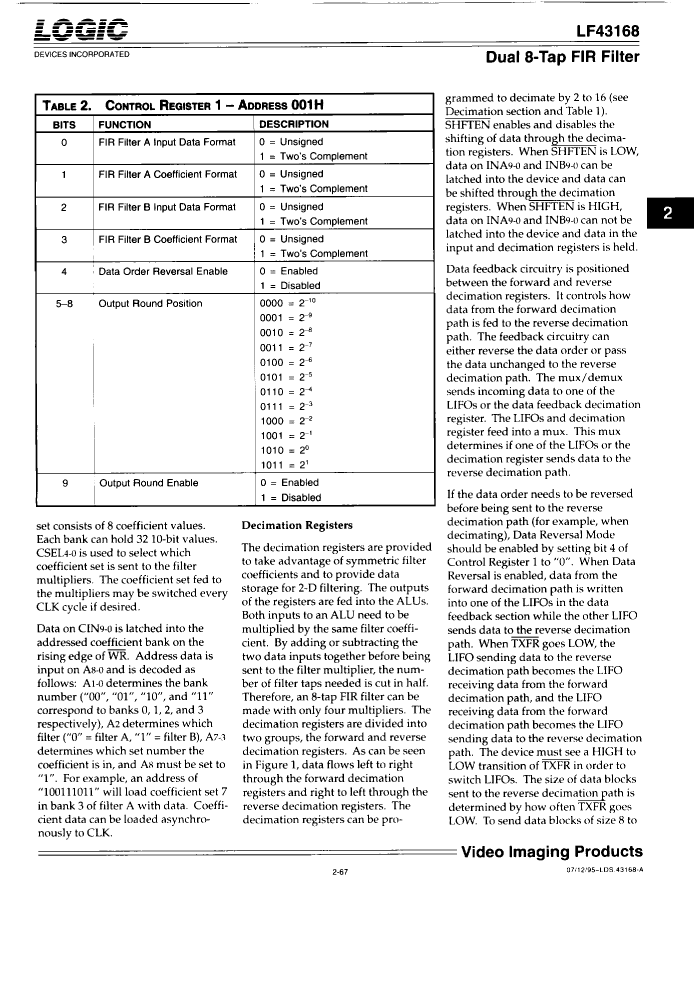

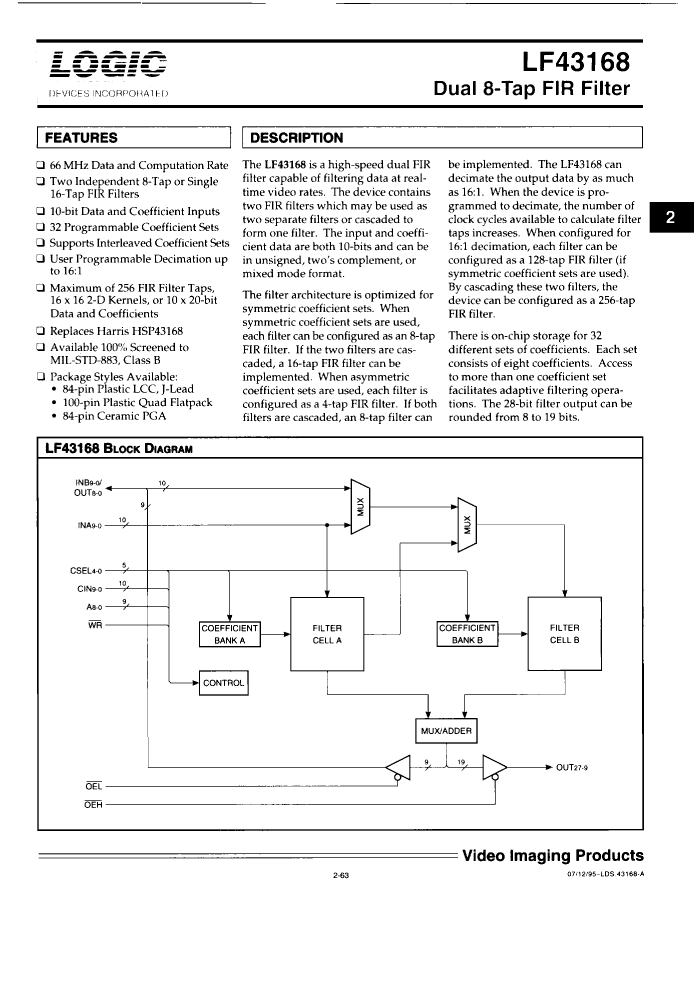

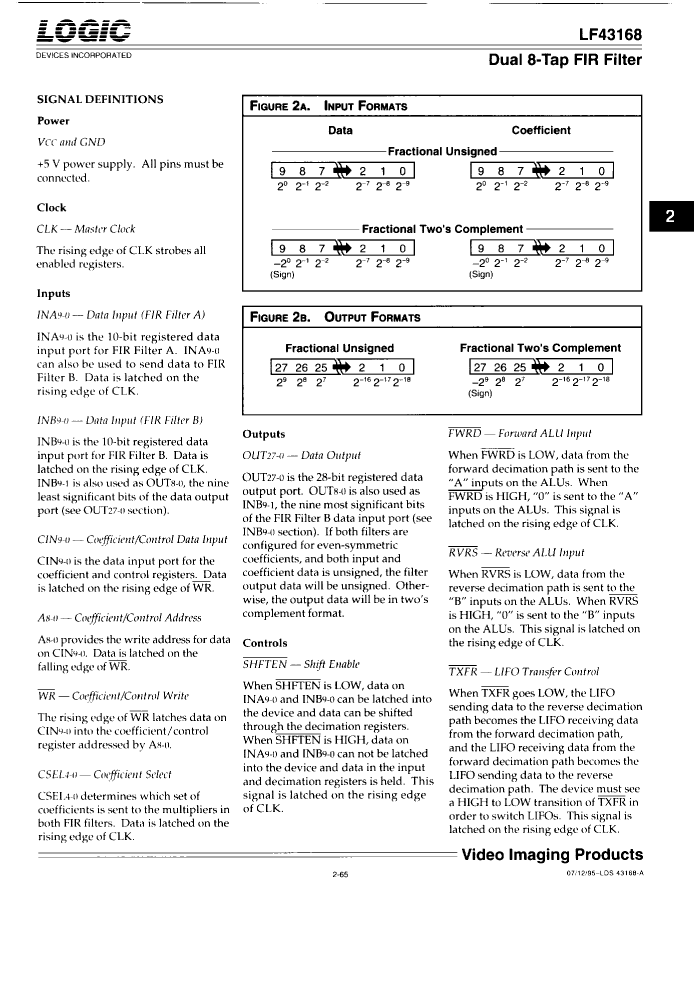

Preview

Download Datasheet

View All

5962-9750403MXA Related Products

	5962-9750403MXA	5962-9750402MXA	5962-9750401MXA	5962-9750403MXC	5962-9750402MXC	5962-9750401MXC
Description	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84	Digital Filter, 10-Bit, CMOS, CPGA84, CERAMIC, PGA-84
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	PGA	PGA	PGA	PGA	PGA	PGA
package instruction	PGA, PGA84M,11X11	PGA, PGA84M,11X11	PGA, PGA84M,11X11	PGA, PGA84M,11X11	PGA, PGA84M,11X11	PGA, PGA84M,11X11
Contacts	84	84	84	84	84	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	2 X 10 BIT DATA INPUT BUS	2 X 10 BIT DATA INPUT BUS	2 X 10 BIT DATA INPUT BUS	2 X 10 BIT DATA INPUT BUS	2 X 10 BIT DATA INPUT BUS	2 X 10 BIT DATA INPUT BUS
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	45.45 MHz	33.3 MHz	25.6 MHz	45.45 MHz	33.3 MHz	25.6 MHz
External data bus width	10	10	10	10	10	10
JESD-30 code	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84
JESD-609 code	e0	e0	e0	e4	e4	e4
low power mode	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3	3
Number of terminals	84	84	84	84	84	84
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	28	28	28	28	28	28
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11	PGA84M,11X11
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum slew rate	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Gold (Au)	Gold (Au)	Gold (Au)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
Base Number Matches	1	1	1	1	1	1
