BZW06-154RL datasheet, PDF - EEWORLD Datasheet

BZW06-154RL: Description600W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size133KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

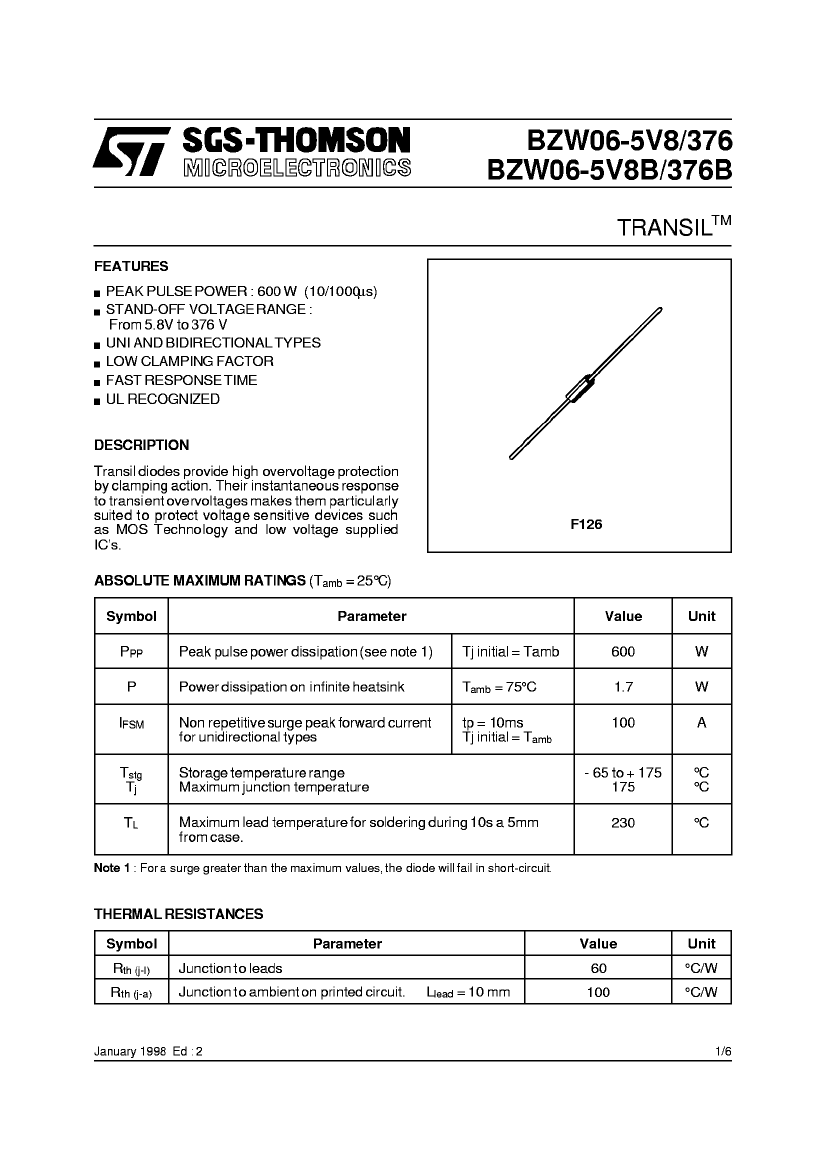

BZW06-154RL Overview

600W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-15
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED

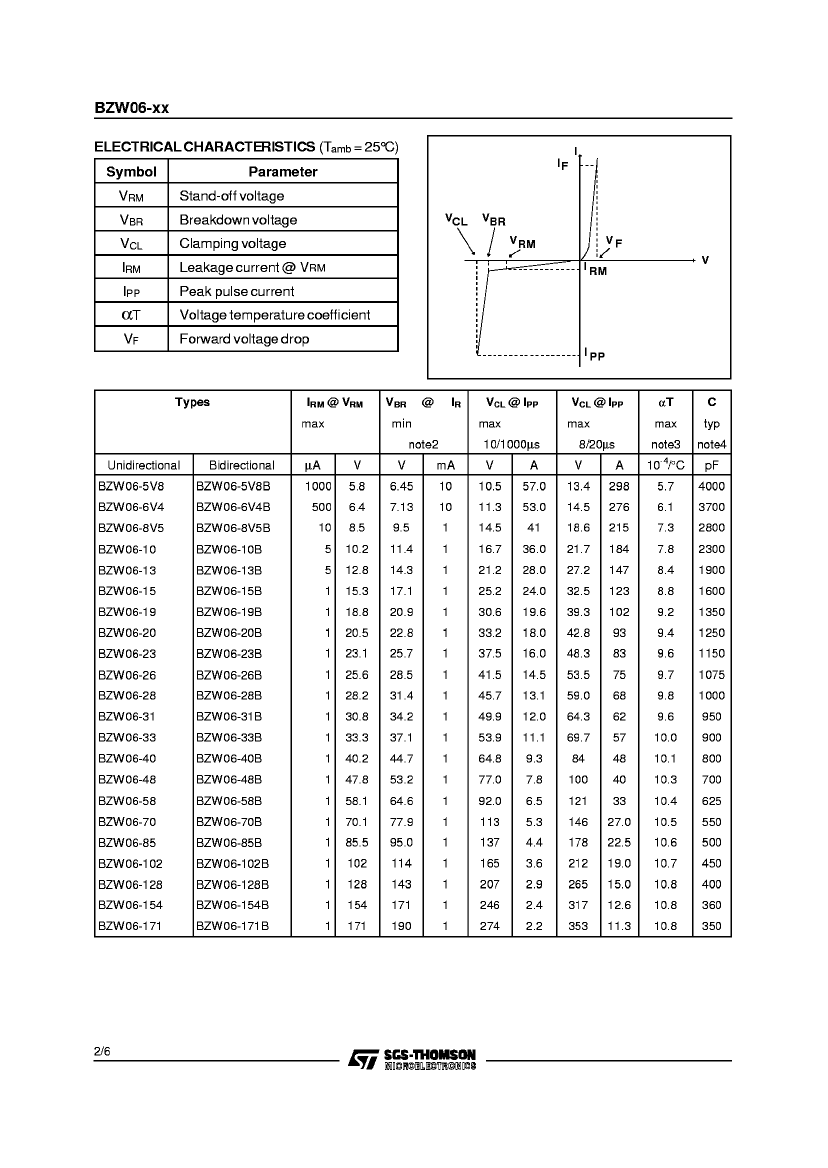

Minimum breakdown voltage	171 V
Shell connection	ISOLATED

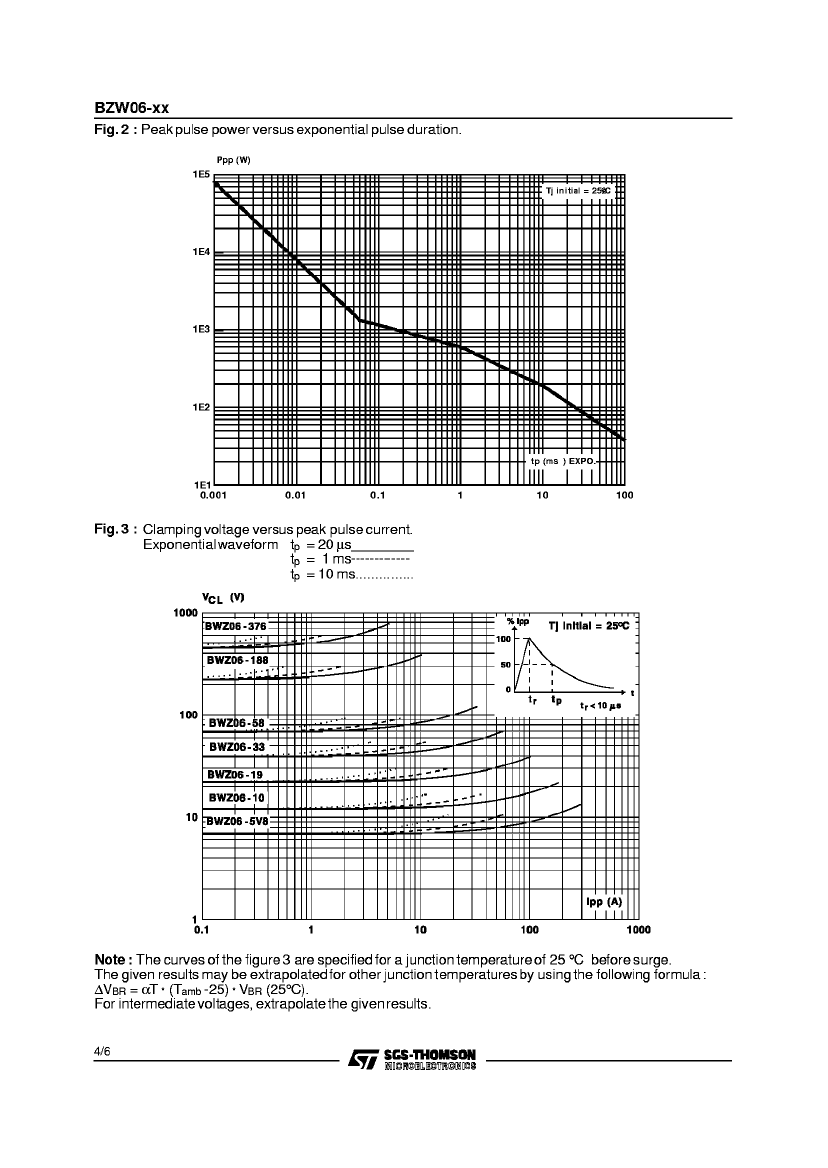

Maximum clamping voltage	317 V
Configuration	SINGLE

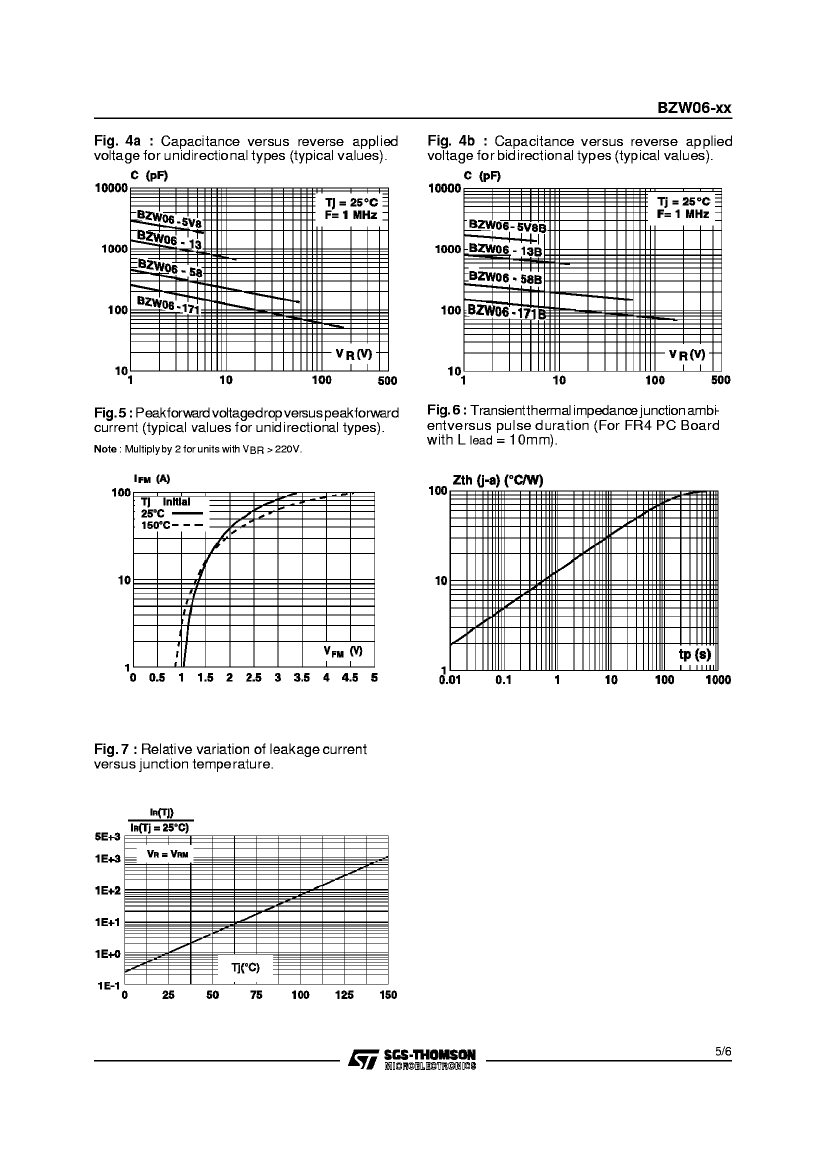

Minimum diode capacitance	360 pF
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e3

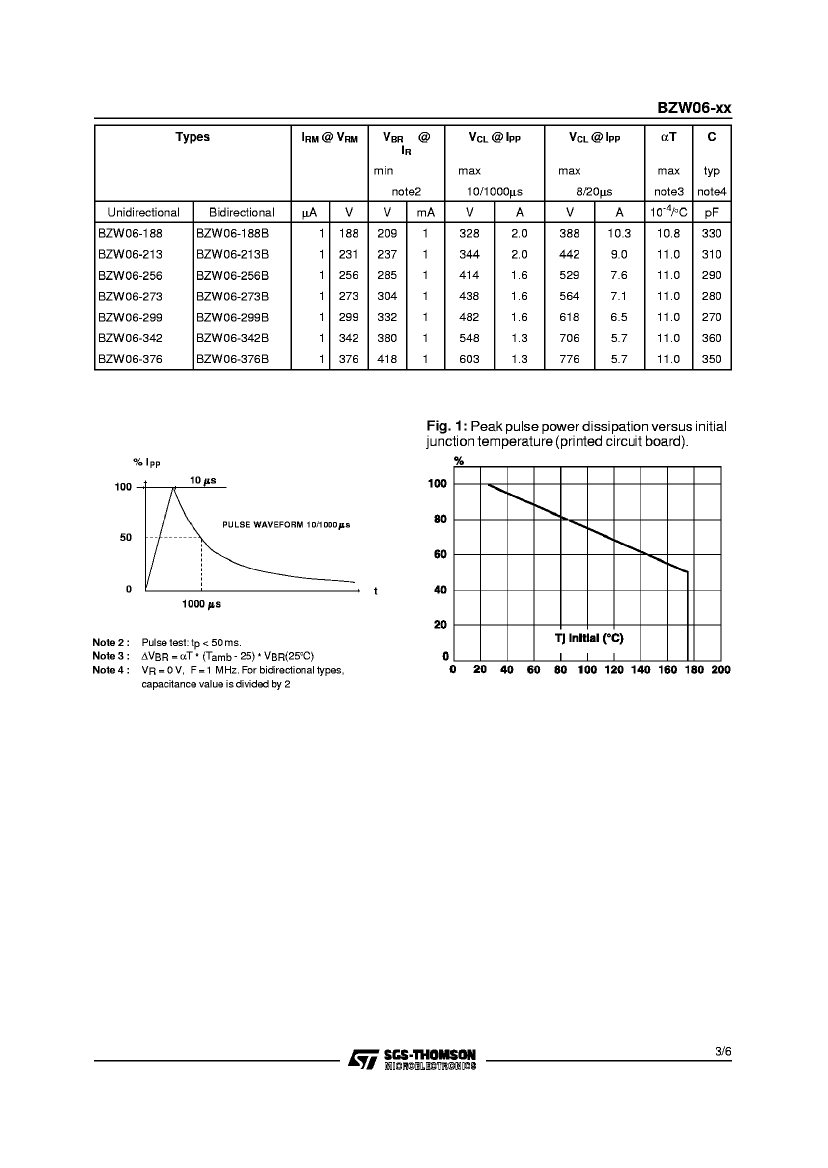

Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.7 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	154 V
Maximum reverse current	5 µA
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BZW06-154RL	BZW06-154BRL
Description	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2	600W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to
Parts packaging code	DO-15	DO-15
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	171 V	171 V
Shell connection	ISOLATED	ISOLATED
Maximum clamping voltage	317 V	317 V
Configuration	SINGLE	SINGLE
Minimum diode capacitance	360 pF	180 pF
Diode component materials	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2
JESD-609 code	e3	e3
Maximum non-repetitive peak reverse power dissipation	600 W	600 W
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	BIDIRECTIONAL
Maximum power dissipation	1.7 W	1.7 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	154 V	154 V
Maximum reverse current	5 µA	5 µA
surface mount	NO	NO
technology	AVALANCHE	AVALANCHE
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
