5962R9655801VEX

Description
Parallel In Serial Out, AC Series, 8-Bit, Right Direction, Complementary Output, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Categorylogic    logic
File Size105KB,4 Pages
ManufacturerCobham Semiconductor Solutions
Download Datasheet Parametric View All

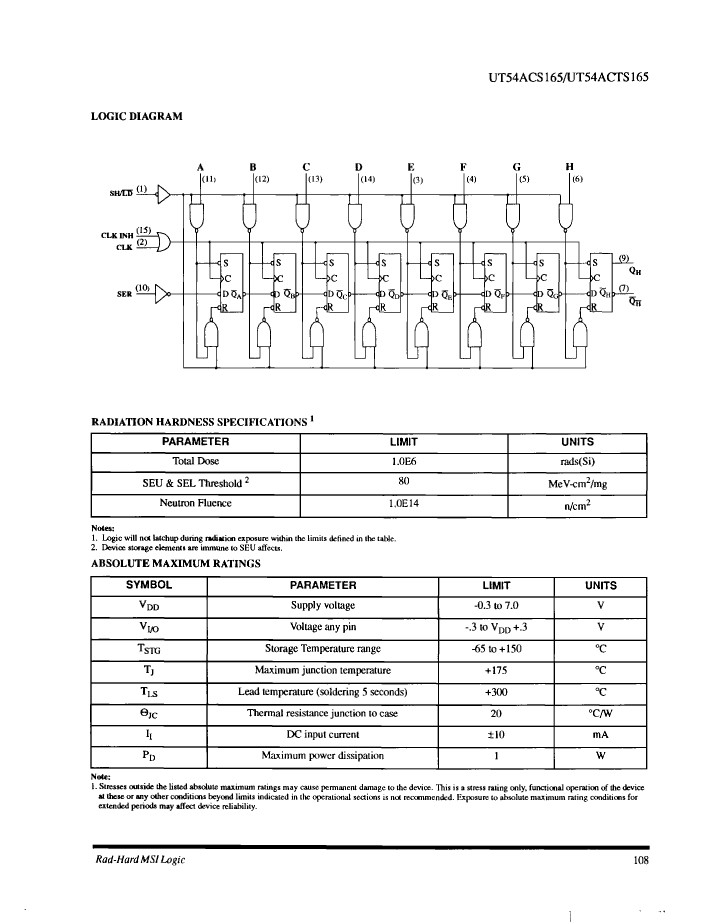

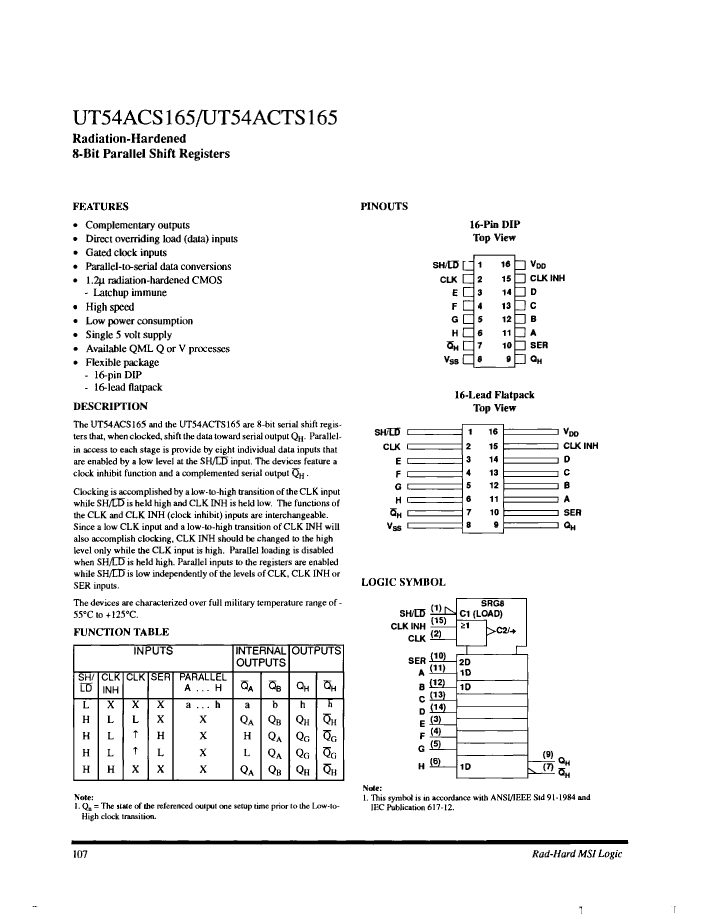

5962R9655801VEX Overview

Parallel In Serial Out, AC Series, 8-Bit, Right Direction, Complementary Output, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

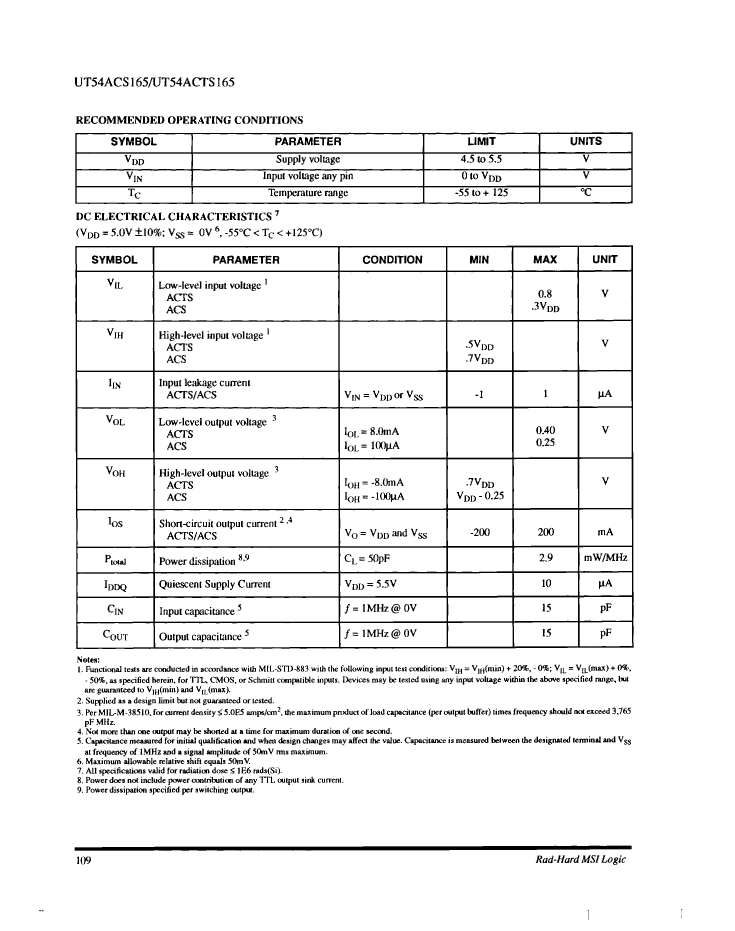

5962R9655801VEX Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts16
Reach Compliance Codeunknown
Other featuresCLOCK INHIBIT
Counting directionRIGHT
seriesAC
JESD-30 codeR-CDIP-T16
length19.05 mm
Logic integrated circuit typePARALLEL IN SERIAL OUT
Number of digits8
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE

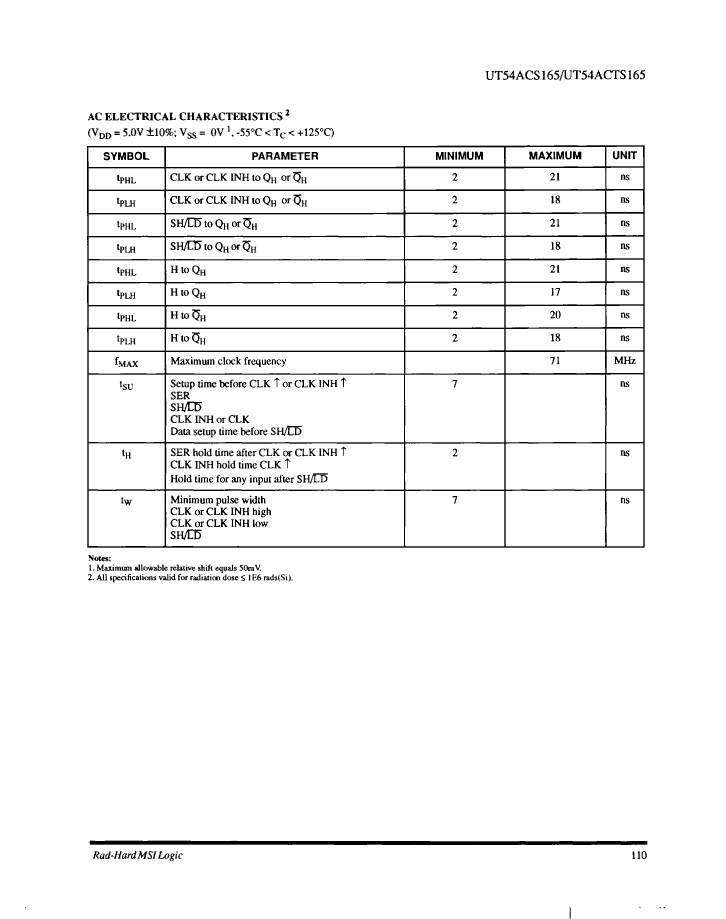

propagation delay (tpd)21 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
total dose100k Rad(Si) V
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax71 MHz
Base Number Matches1
