535919-3 datasheet, PDF - EEWORLD Datasheet

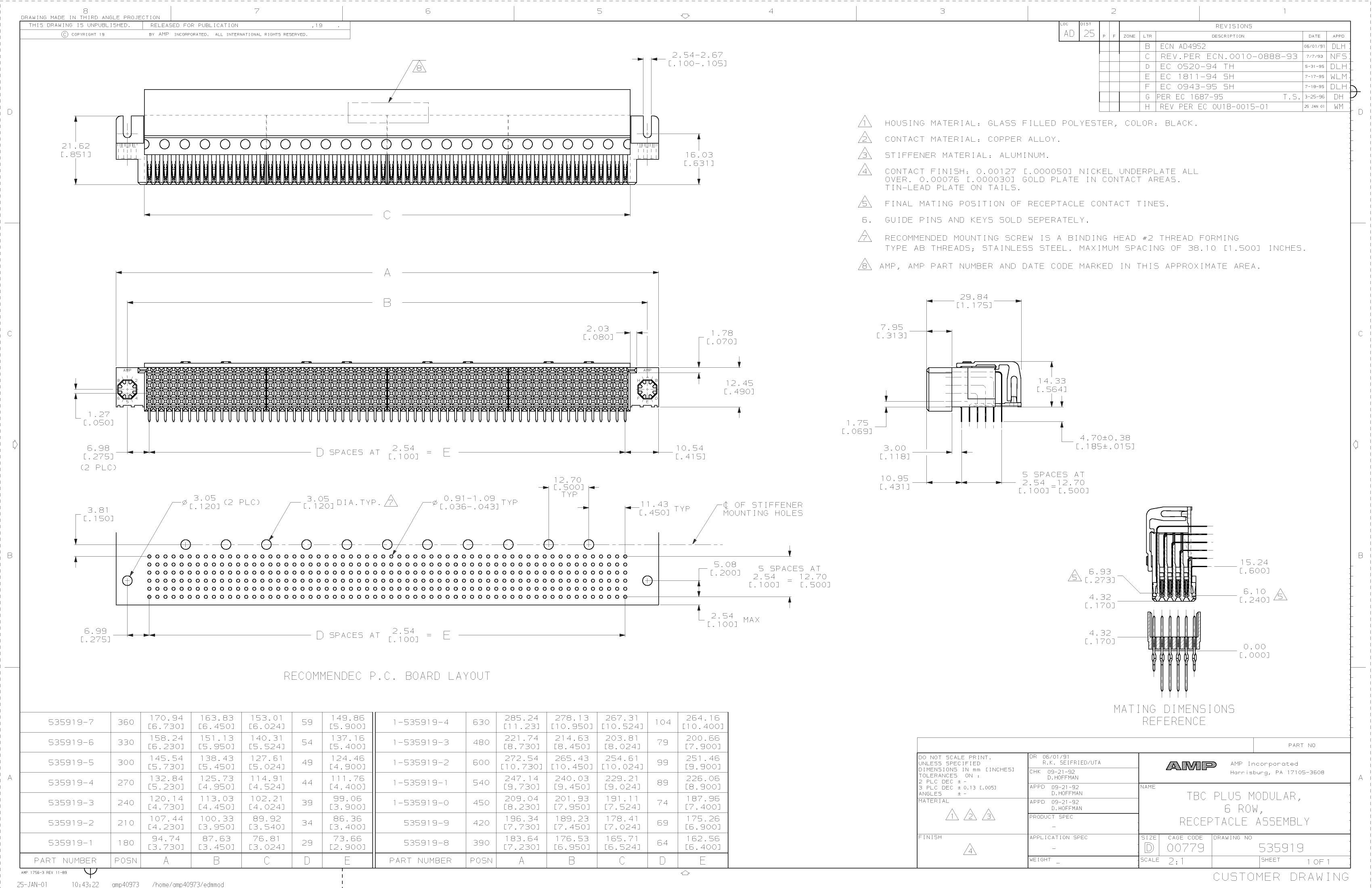

535919-3: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,240 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE PIN,BLACK; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

535919-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	535919-3	-	-	View	Buy Now

HEADER CONNECTOR,PCB MNT,PLUG,240 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE PIN,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	MOUNT, EARS OPTIONAL
Board mount options	#2-56 THD HOLE
body width	0.564 inch
subject depth	1.175 inch
body length	4.73 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	900VAC V
Durability	250 Cycles
maximum insertion force	.6672 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	535919
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE PIN
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.185 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	240
Base Number Matches	1

	535919-3	535919-1
Description	HEADER CONNECTOR,PCB MNT,PLUG,240 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE PIN,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,180 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE PIN,BLACK
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	unknown
Other features	MOUNT, EARS OPTIONAL	POLARIZED
body width	0.564 inch	0.851 inch
subject depth	1.175 inch	0.49 inch
body length	4.73 inch	3.73 inch
Body/casing type	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD	TIN LEAD
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD
PCB row number	6	6
Number of rows loaded	6	6
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	240	180
Base Number Matches	1	1
