BF175-128-A-0450-0220-N-G datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF175-128-A-0450-0220-N-G

Preview

BF175-128-A-0450-0220-N-G: DescriptionBoard Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF175-128-A-0450-0220-N-G Overview

Board Connector, 128 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking,

BF175-128-A-0450-0220-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
body width	0.315 inch
subject depth	0.059 inch
body length	2.52 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e4
Manufacturer's serial number	BF175
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.087 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	128
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

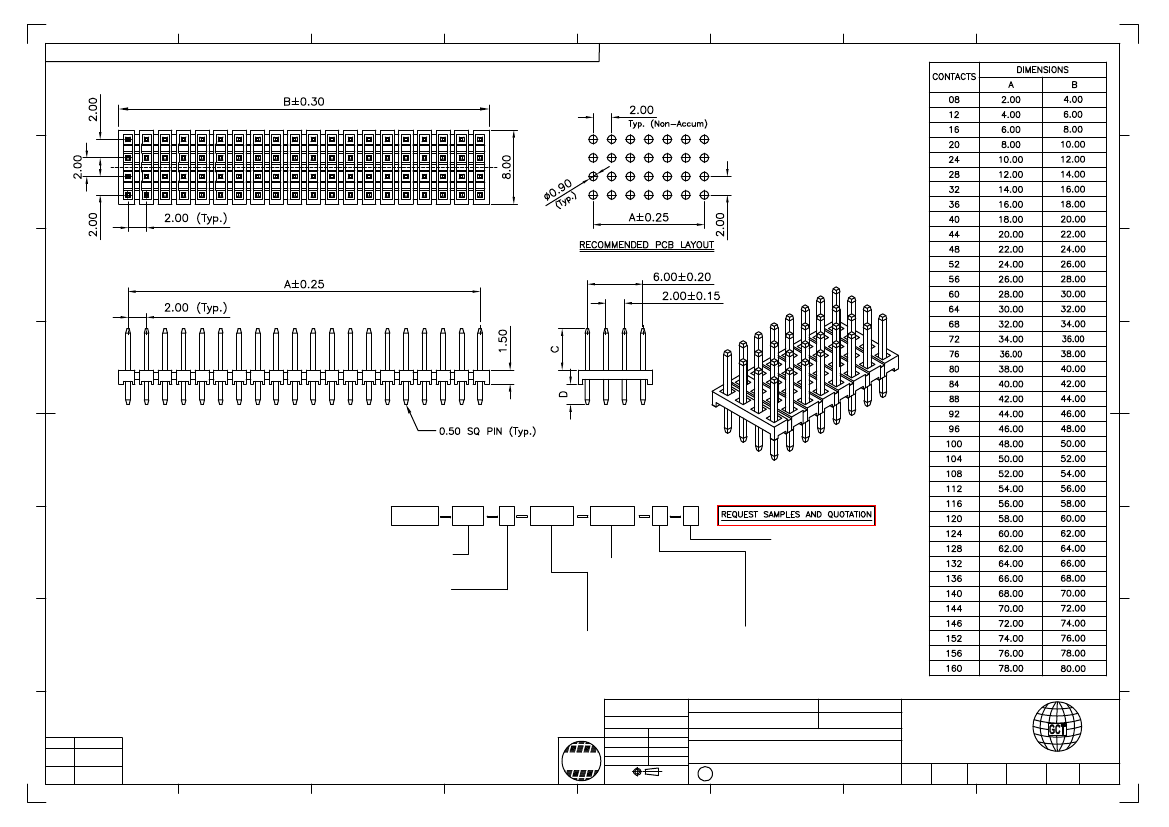

Global Connector Technology Ltd. - 2.00mm PITCH PIN HEADER, QUAD ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

F

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

G

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF180

BF175

No. of Contacts

08 to 160

XXX

X

XXXX

X

Packing

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

F

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Dimension D (1/100mm)

(Tail Length)

Standard - 2.20mm = 0220

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension C (1/100mm)

(Post Height)

Standard - 4.50mm = 0450

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

Insulator Material

N = Nylon 6T (Standard)

L = LCP

G

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±3°

.XX°±2°

.XXX°±1°

BF175

Description:-

08 APR 07

H

By

DETAIL

REV

DATE

RD

DRAWING

RELEASE

A

08/4/07

RoHS

2

3

4

2.00mm PITCH PIN HEADER, QUAD ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

H

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

1

Third Angle Projection

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

A

Drawn by

RD

5

6

7

8
