IS61LPS51218A, IS61LPS25636A, IS61LPS25632A, IS64LPS25636A,
IS61VPS51218A, IS61VPS25636A
256K x 36, 256K x 32, 512K x 18
9 Mb SYNCHRONOUS PIPELINED,
SINgLE CYCLE DESELECT STATIC RAM
FEATURES
• Internal self-timed write cycle
• Individual Byte Write Control and Global Write
• Clock controlled, registered address, data and
control
• Burst sequence control using MODE input
• Three chip enable option for simple depth ex-
pansion and address pipelining
• Common data inputs and data outputs
• Auto Power-down during deselect
• Single cycle deselect
• Snooze MODE for reduced-power standby
• JTAG Boundary Scan for BGA package
• Power Supply
LPS: V
dd
3.3V + 5%,
V
ddq
3.3V/2.5V + 5%
VPS: V
dd
2.5V + 5%,
V
ddq
2.5V + 5%
• JEDEC 100-Pin QFP, 119-ball BGA, and 165-
ball BGA packages
• Lead-free available
JANUARY 2014
IS64LPS25636A and IS61LPS/VPS51218A are high-
speed, low-power synchronous static RAMs
designed
to provide burstable,
high-performance
memory for com-
munication and networking applications. The IS61LPS/
VPS25636A and IS64LPS25636A are organized as
262,144 words by 36 bits. The IS61LPS25632A
is
organized as 262,144 words by 32 bits. The IS61LPS/
VPS51218A is organized as 524,288 words by 18 bits.
Fabricated with
ISSI
's advanced CMOS technology,
the device integrates a 2-bit burst counter, high-speed
SRAM core, and high-drive capability outputs into a single
monolithic circuit. All synchronous inputs pass through
registers controlled by a positive-edge-triggered single
clock input.
Write cycles are internally self-timed and are initiated by
the rising edge of the clock input. Write cycles can be
one to four bytes wide as controlled by the write control
inputs.
Separate byte enables allow individual bytes to be written.
The byte write operation is performed by using the byte
write enable (BWE) input combined with one or more
individual byte write signals (BWx).
In addition, Global
Write (GW)
is available for writing all bytes at one time,
regardless of the byte write controls.
Bursts can be initiated with either ADSP
(Address Status
Processor) or ADSC
(Address Status Cache Controller)
input pins. Subsequent burst addresses can be gener-
ated internally and controlled by the
ADV
(burst address
advance) input pin.
The mode pin is used to select the burst sequence or-
der, Linear burst is achieved when this pin is tied LOW.
Interleave burst is achieved when this pin is tied HIGH
or left floating.
DESCRIPTION
The
ISSI
IS61LPS/VPS25636A, IS61LPS25632A,
FAST ACCESS TIME
Symbol
t
kq
t
kc
Parameter
Clock Access Time
Cycle Time
Frequency
250
2.6
4
250
200
3.1
5
200
166
3.5
6
166
Units
ns
ns
MHz
Copyright © 2014 Integrated Silicon Solution, Inc. All rights reserved. ISSI reserves the right to make changes to this specification and its products at any time without notice. ISSI assumes no
liability arising out of the application or use of any information, products or services described herein. Customers are advised to obtain the latest version of this device specification before relying on
any published information and before placing orders for products.
Integrated Silicon Solution, Inc.
Rev. M
01/14/14
1

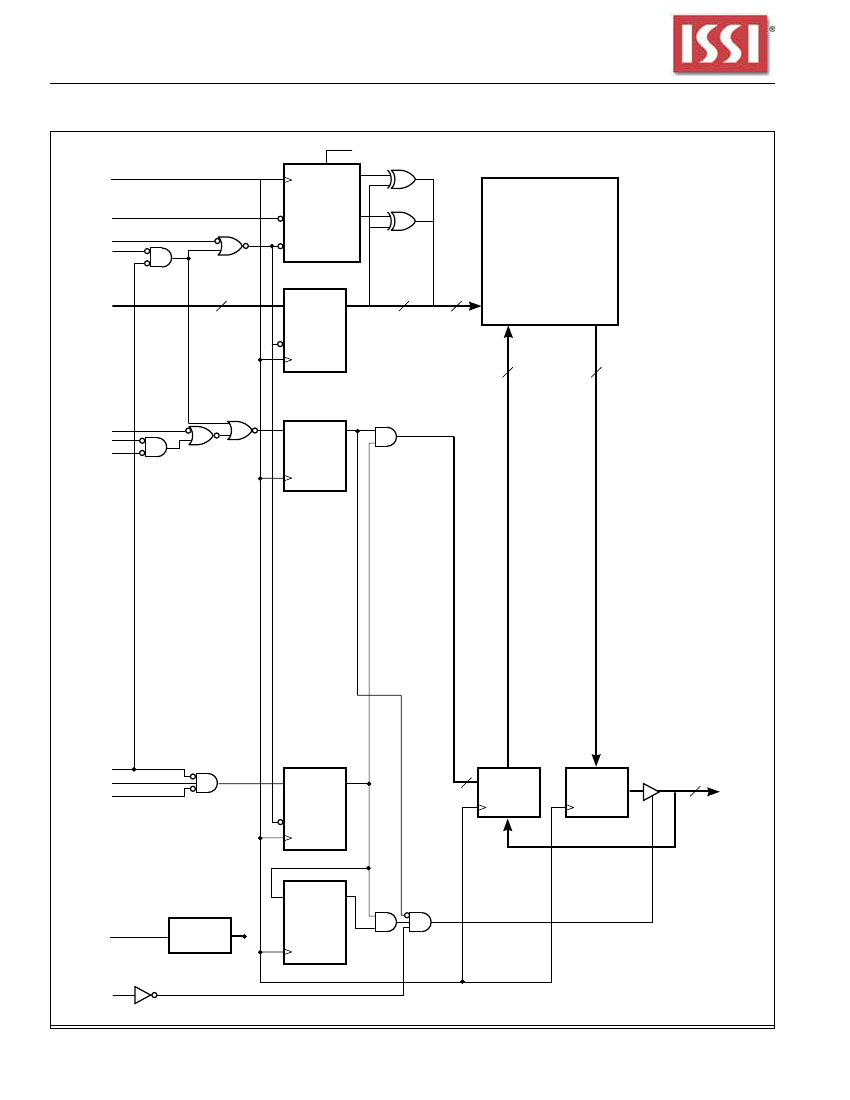

IS61LPS51218A, IS61LPS25636A, IS61LPS25632A, IS64LPS25636A,
IS61VPS51218A, IS61VPS25636A
119 BGA PACKAGE PIN CONFIGURATION-
256k
x
36 (TOP VIEW)
1
A
B
C
D
E
F
g
H
J
K
L
M
N
P
R
T
U
V
DDQ
NC
NC
DQc
DQc
V
DDQ
DQc
DQc
V
DDQ
DQd
DQd
V
DDQ
DQd
DQd
NC
NC
V
DDQ
2
A
CE2
A
DQPc
DQc
DQc
DQc
DQc
V
DD
DQd
DQd
DQd
DQd
DQPd
A
NC
TMS
3
A
A
A
Vss
Vss
Vss
BWc
Vss
NC
Vss
BWd
Vss
Vss
Vss
MODE
A
TDI
4
ADSP
ADSC
V
DD
NC
CE
OE
ADV
GW
V
DD
CLK
NC
BWE
A
1
*
A
0
*
V
DD
A
TCK
5
A
A
A
Vss
Vss
Vss
BWb
Vss
NC
Vss
BWa
Vss
Vss
Vss
NC
A
TDO
6
A
A
A
DQPb
DQb
DQb
DQb
DQb
V
DD
DQa
DQa
DQa
DQa
DQPa
A
NC
NC
7
V
DDQ
NC
NC
DQb
DQb
V
DDQ
DQb
DQb
V
DDQ
DQa
DQa
V
DDQ
DQa
DQa
NC
ZZ
V
DDQ
Note:
* A
0
and A
1
are the two least significant bits (LSB) of the address field and set the internal burst counter if burst is desired.
PIN DESCRIPTIONS
Symbol
A
A0, A1
ADV
ADSP
ADSC
GW
CLK
CE, CE2
BWE
Pin Name
Address Inputs
Synchronous Burst Address Inputs
Synchronous Burst Address
Advance
Address Status Processor
Address Status Controller
Global Write Enable
Synchronous Clock
Synchronous Chip Select
Byte Write Enable
Symbol
OE
ZZ
MODE
TCK, TDO
TMS, TDI
NC
DQa-DQd
DQPa-Pd
V
dd
V
ddq
Vss
No Connect
Data Inputs/Outputs
Output Power Supply
Power Supply
Output Power Supply
Ground
Pin Name
Output Enable
Power Sleep Mode
Burst Sequence Selection
JTAG Pins
BWx (x=a-d)
Synchronous Byte Write Controls
4
Integrated Silicon Solution, Inc.
Rev. M
01/14/14
IS61LPS51218A, IS61LPS25636A, IS61LPS25632A, IS64LPS25636A,
IS61VPS51218A, IS61VPS25636A

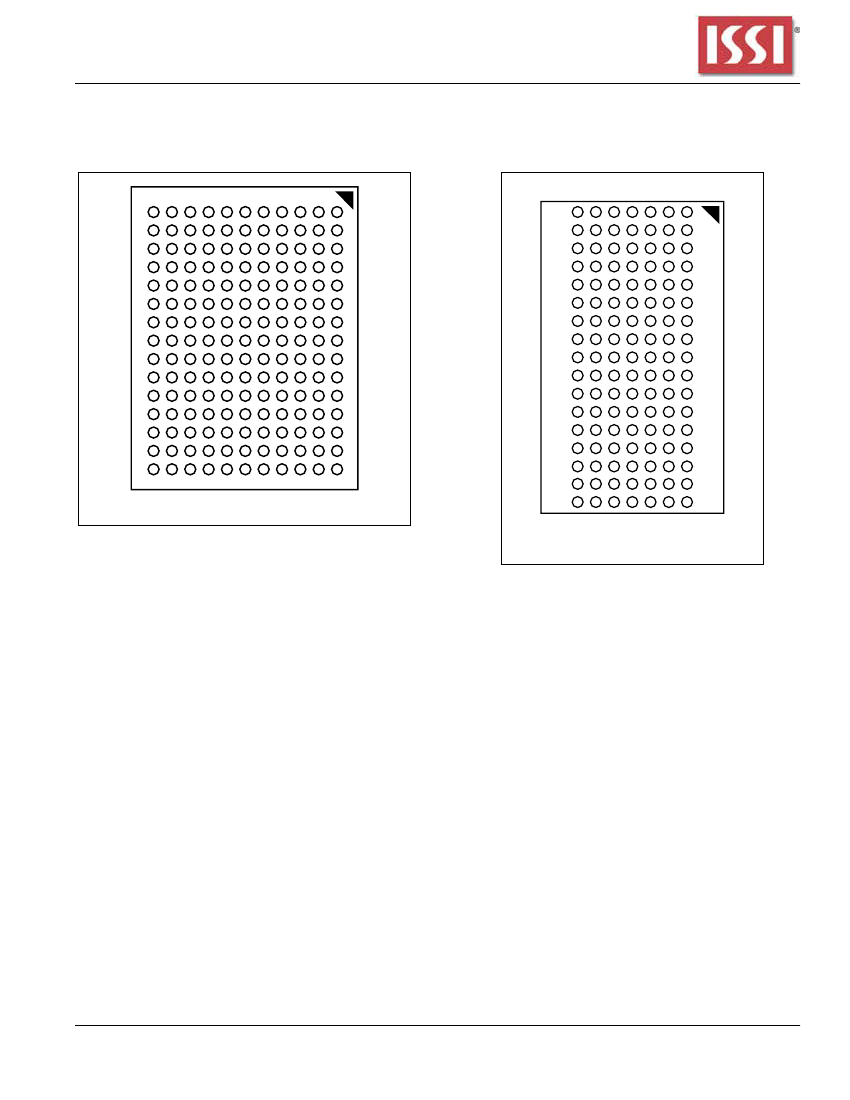

119 BGA PACKAGE PIN CONFIGURATION
512k
x
18 (TOP VIEW)
1
A
B
C
D
E
F
g
H
J
K
L
M
N
P
R
T
U
V
DDQ
NC
NC
DQb
NC
V
DDQ
NC
DQb
V
DDQ
NC
DQb
V
DDQ
DQb
NC
NC
NC
V
DDQ
2
A
CE2
A
NC
DQb
NC
DQb
NC
V
DD
DQb
NC
DQb
NC
DQPb
A
A
TMS
3
A
A
A
Vss
Vss
Vss
BWb
Vss
NC
Vss
Vss
Vss
Vss
Vss
MODE
A
TDI
4
ADSP
ADSC
V
DD
NC
CE
OE
ADV
GW
V
DD
CLK
NC
BWE
A
1
*
A
0
*
V
DD
NC
TCK
5
A
A
A
Vss
Vss
Vss
Vss
Vss
NC
Vss
BWa
Vss
Vss
Vss
NC
A
TDO
6
A
A
A
DQPa
NC
DQa
NC
DQa
V
DD
NC
DQa
NC
DQa
NC
A
A
NC
7
V
DDQ
NC
NC
NC
DQa
V
DDQ
DQa
NC
V
DDQ
DQa
NC
V
DDQ
NC
DQa
NC
ZZ
V
DDQ
Note:
* A
0
and A
1
are the two least significant bits (LSB) of the address field and set the internal burst counter if burst is desired.
PIN DESCRIPTIONS
Symbol
A
A0, A1
ADV
ADSP
ADSC
GW
CLK
CE, CE2
BWE
Pin Name
Address Inputs
Synchronous Burst Address Inputs
Synchronous Burst Address
Advance
Address Status Processor
Address Status Controller
Global Write Enable
Synchronous Clock
Synchronous Chip Select
Byte Write Enable
Symbol
OE
ZZ
MODE
TCK, TDO
TMS, TDI
NC
DQa-DQb
DQPa-Pb
V
dd
V
ddq
Vss
No Connect
Data Inputs/Outputs
Output Power Supply
Power Supply
Output Power Supply
Ground
Pin Name
Output Enable
Power Sleep Mode
Burst Sequence Selection
JTAG Pins
BWx (x=a,b)
Synchronous Byte Write Controls
Integrated Silicon Solution, Inc.
Rev. M
01/14/14
5
