MC74LVX4066DT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74LVX4066DT

MC74LVX4066DT: DescriptionQuad Analog Switch/Multiplexer/Demultiplexer; CategoryAnalog mixed-signal IC The signal circuit; File Size196KB，13 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74LVX4066DT Overview

Quad Analog Switch/Multiplexer/Demultiplexer

MC74LVX4066DT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP14,.25
Contacts	14
Reach Compliance Code	unknown
Factory Lead Time	1 week
Base Number Matches	1

Preview

Download Datasheet

View All

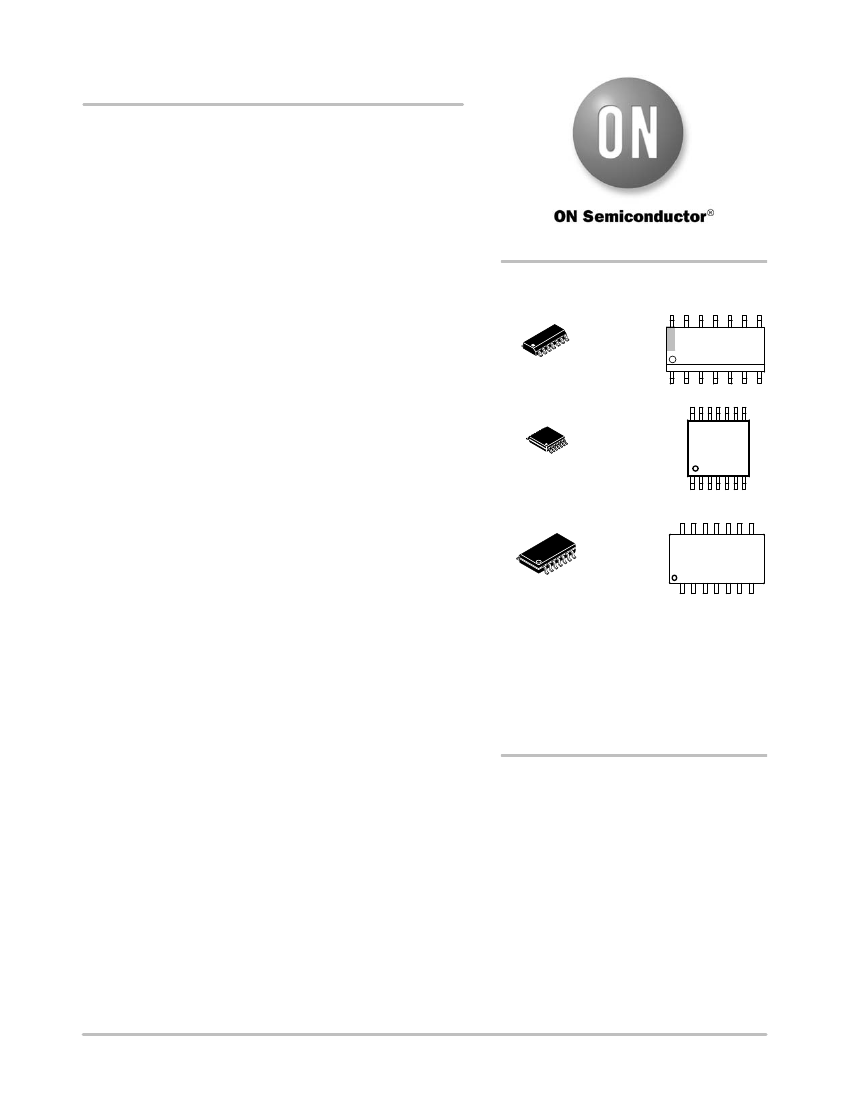

MC74LVX4066

Quad Analog Switch/

Multiplexer/Demultiplexer

High−Performance Silicon−Gate CMOS

The MC74LVX4066 utilizes silicon−gate CMOS technology to

achieve fast propagation delays, low ON resistances, and low

OFF−channel leakage current. This bilateral switch/multiplexer/

demultiplexer controls analog and digital voltages that may vary

across the full power−supply range (from V

to GND).

The LVX4066 is identical in pinout to the metal−gate CMOS

MC14066 and the high−speed CMOS HC4066A. Each device has four

independent switches. The device has been designed so that the ON

resistances (R

) are much more linear over input voltage than R

of metal−gate CMOS analog switches.

The ON/OFF control inputs are compatible with standard CMOS

outputs; with pull−up resistors, they are compatible with LSTTL

outputs.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

SOEIAJ−14

M SUFFIX

CASE 965

LVX4066

WL, L

WW, W

G or

= Specific Device Code

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

LVX4066

ALYWG

LVX

4066

ALYWG

LVX4066G

AWLYWW

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power−Supply Voltage Range (V

−

GND) = 2.0 to 6.0 Volts

Analog Input Voltage Range (V

−

GND) = 2.0 to 6.0 Volts

Improved Linearity and Lower ON Resistance over Input Voltage

than the MC14016 or MC14066

•

Low Noise

•

Chip Complexity: 44 FETs or 11 Equivalent Gates

•

These Devices are Pb−Free and are RoHS Compliant

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2011

May, 2011

−

Rev. 5

Publication Order Number:

MC74LVX4066/D
