PD-93977
HEXFET
®
POWER MOSFET
SURFACE MOUNT (LCC-28)
Product Summary
Part Number
IRF5EA1310
BVDSS
IRF5EA1310
100V, N-CHANNEL
100V
R
DS(on)
0.036Ω
I
D
23A
Fifth Generation HEXFET
®
power MOSFETs from
International Rectifier utilize advanced processing
techniques to achieve the lowest possible on-resistance
per silicon unit area. This benefit, combined with the
fast switching speed and ruggedized device design
that HEXFET power MOSFETs are well known for,
provides the designer with an extremely efficient device
for use in a wide variety of applications.
These devices are well-suited for applications such
as switching power supplies, motor controls, invert-
ers, choppers, audio amplifiers and high-energy pulse
circuits.
LCC-28
Features:
n
n
n
n
n
n
n
n
Low R
DS(on)
Avalanche Energy Ratings
Dynamic dv/dt Rating
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Surface Mount
Light Weight
Absolute Maximum Ratings
Parameter
ID @ VGS = 10V, TC = 25°C
ID @ VGS = 10V, TC = 100°C
IDM
PD @ TC = 25°C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction
Storage Temperature Range
Package Mounting Surface Temperature
Weight
For footnotes refer to the last page
300 (for 5 s)
0.89
23
15
92
38
0.3
±20
73
22
3.8
3.6
-55 to 150
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
o
C
g
www.irf.com
1
1019/00
IRF5EA1310
Electrical Characteristics
@ Tj = 25°C (Unless Otherwise Specified)
Parameter
BVDSS
Drain-to-Source Breakdown Voltage
∆BV
DSS/∆T J Temperature Coefficient of Breakdown
Voltage
RDS(on)
Static Drain-to-Source On-State
Resistance
VGS(th)
Gate Threshold Voltage
gfs
Forward Transconductance
IDSS
Zero Gate Voltage Drain Current
Min
100
—
—
2.0
14
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ Max Units
—
0.11
—
—
—
—
—
—
—
—
—
—
—
—
—
—
6.1
2022
471
254
—
—
0.036
4.0
—
25
250
100
-100
110
15
58
26
176
75
130
—
—
—
—
V
V/°C
Ω
V
S( )
µA
Ω
Test Conditions
VGS = 0V, ID = 250µA
Reference to 25°C, ID = 1.0mA
VGS = 10V, ID = 22A
VDS = VGS, ID = 250µA
VDS = 25V, IDS = 22A
VDS= 100V ,VGS=0V
VDS = 80V,
VGS = 0V, TJ = 125°C
VGS = 20V
VGS = -20V
VGS =10V, ID = 22A
VDS = 80V
VDD = 50V, ID = 22A
RG = 3.9Ω
IGSS
IGSS
Qg
Q gs
Q gd
td
(on)
tr
td
(off)
tf
LS + LD
Ciss
Coss
Crss
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain (‘Miller’) Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Total Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
nA
nC
ns
nH
pF
Measured from the center of
drain pad to center of source pad
VGS = 0V, VDS = 25V
f = 1.0MHz
Source-Drain Diode Ratings and Characteristics
Parameter
IS
ISM
VSD
t rr
Q RR
ton
Continuous Source Current (Body Diode)
Pulse Source Current (Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min Typ Max Units
—
—
—
—
—
—
—
—
—
—
23
92
1.3
270
1.8
Test Conditions
A
V
nS
µC
T
j
= 25°C, IS = 22A, VGS = 0V
Tj = 25°C, IF = 22A, di/dt
≤
100A/µs
VDD
≤
25V
Intrinsic turn-on time is negligible. Turn-on speed is substantially controlled by LS + LD.
Thermal Resistance
Parameter
RthJC
Junction-to-Case
Min Typ Max Units
—
—
3.3
°C/W
Test Conditions
Note: Corresponding Spice and Saber models are available on the G&S Website.
For footnotes refer to the last page
2
www.irf.com
IRF5EA1310
1000
I
D
, Drain-to-Source Current (A)
100
10
I
D
, Drain-to-Source Current (A)
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
1000
100
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
10
4.5V
4.5V
1
1
0.1
0.1
20µs PULSE WIDTH
T
J
= 25
°
C
1
10
100
0.1
0.1
1
20µs PULSE WIDTH
T
J
= 150
°
C
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)
Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
1000
2.5
T
J
= 25
°
C
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
I
D
= 23A
I
D
, Drain-to-Source Current (A)
2.0
100
T
J
= 150
°
C
10
1.5
1.0
1
0.5
0.1
4.0
V DS =
15
25V
20µs PULSE WIDTH
5.0
6.0
7.0
8.0
9.0
10.0
0.0
-60 -40 -20
V
GS
= 10V
0
20
40
60
80 100 120 140 160
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature(
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRF5EA1310
4000
3500
3000
2500
2000
1500
1000
500
0
1
V
GS
, Gate-to-Source Voltage (V)
V
GS
=
C
iss
=
C
rss
=
C
oss
=
0V,
f = 1MHz
C
gs
+ C
gd ,
C
ds
SHORTED
C
gd
C
ds
+ C
gd
20
I
D
= 22A
V
DS
= 80V
V
DS
= 50V
V
DS
= 20V
16
C, Capacitance (pF)
Ciss
12
8
Coss
Crss
4
0
FOR TEST CIRCUIT
SEE FIGURE 13
0
20
40
60
80
100
120
140
10
100
V
DS
, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
1000
OPERATION IN THIS AREA
LIMITED BY R DS(on)
I
SD
, Reverse Drain Current (A)
100
T
J
= 150
°
C
10
ID, Drain-to-Source Current (A)
100
10
T
J
= 25
°
C
1
1ms
1
Tc = 25°C
Tj = 150°C
Single Pulse
0.1
1
10
100
1000
VDS , Drain-toSource Voltage (V)
10ms
0.1
0.2
V
GS
= 0 V
0.7
1.2
1.7
2.2
V
SD
,Source-to-Drain Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRF5EA1310
25
V
DS
V
GS
R
D
20
D.U.T.
+
I
D
, Drain Current (A)
R
G
-
V
DD
15
10V
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
10

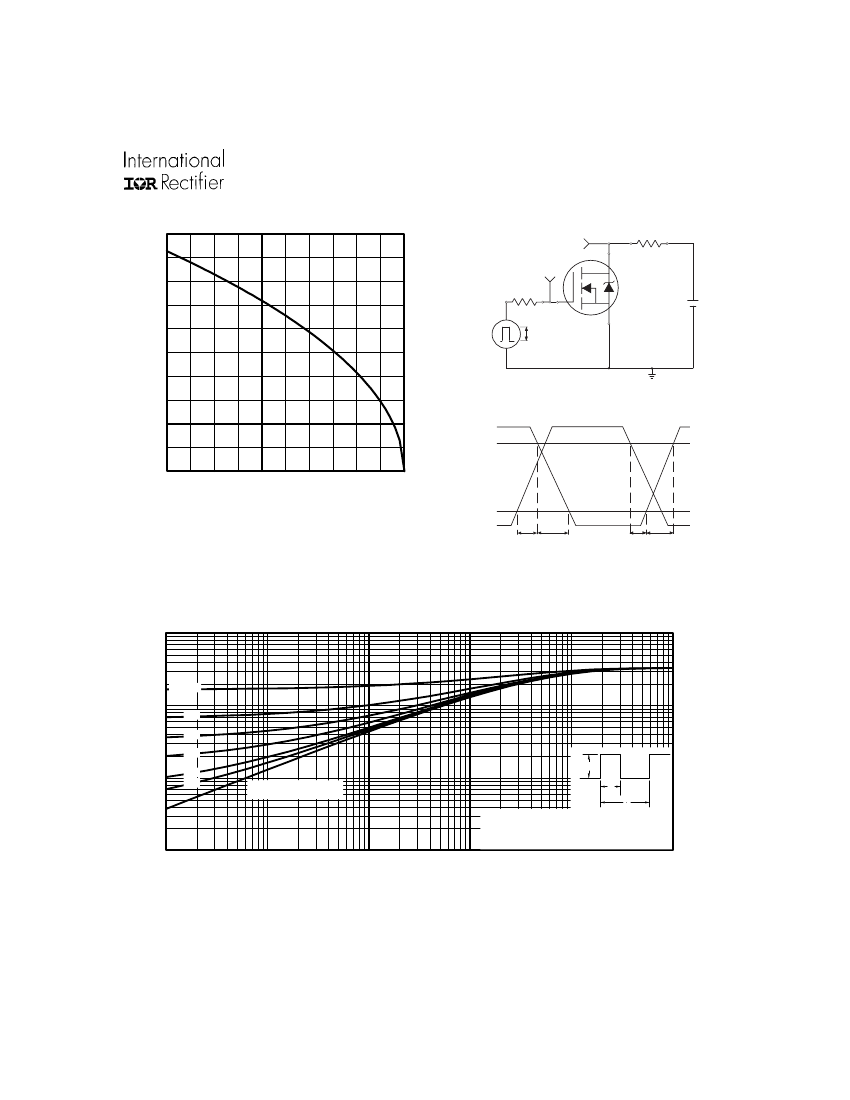

Fig 10a.
Switching Time Test Circuit
5
V
DS
90%
0
25
50
75
100
125
150
T
C
, Case Temperature ( ° C)
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Fig 9.
Maximum Drain Current Vs.
Case Temperature
Fig 10b.
Switching Time Waveforms
10
Thermal Response (Z
thJC
)
D = 0.50
1
0.20
0.10
0.05
0.1
0.02
0.01
P
DM
SINGLE PULSE
(THERMAL RESPONSE)
t
1
t
2
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.0001
0.001
0.01
0.1
1
0.01
0.00001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
