T500164005AQ datasheet, PDF - EEWORLD Datasheet

T500164005AQ: DescriptionSilicon Controlled Rectifier, 63A I(T)RMS, 40000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-94, TO-94, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size1MB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

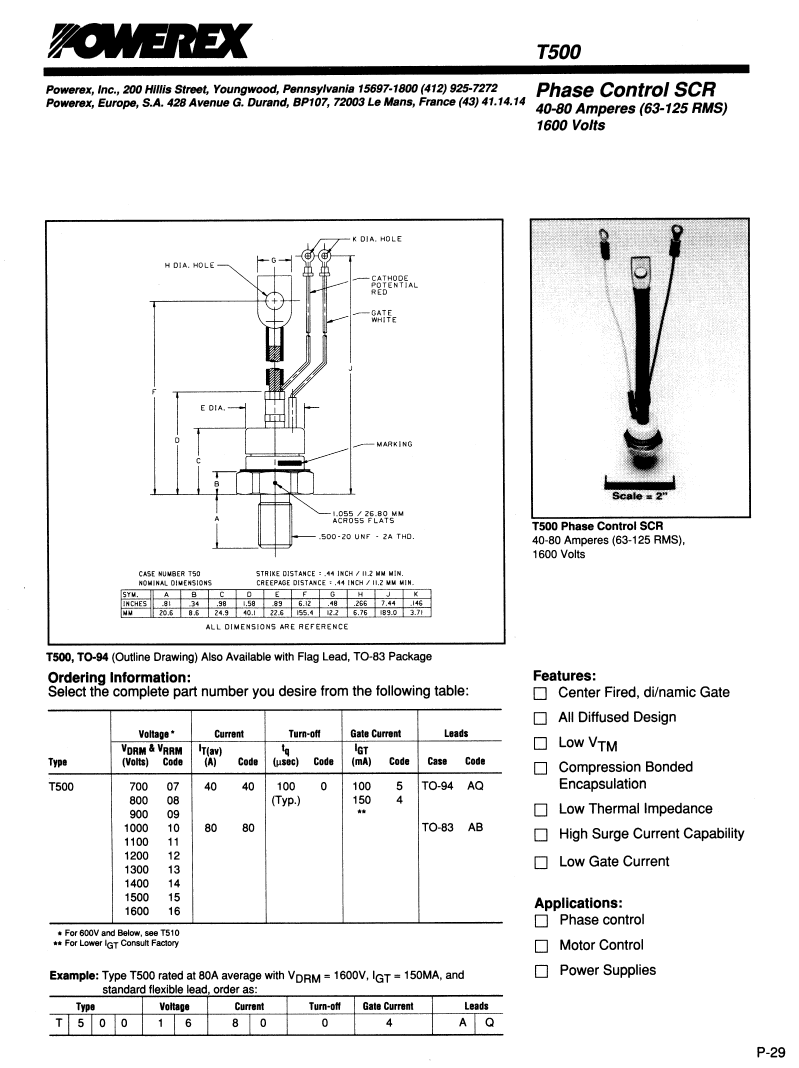

T500164005AQ Overview

Silicon Controlled Rectifier, 63A I(T)RMS, 40000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-94, TO-94, 3 PIN

Parameter Name	Attribute value
Maker	POWEREX
Parts packaging code	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H3
Contacts	3
Reach Compliance Code	unknown

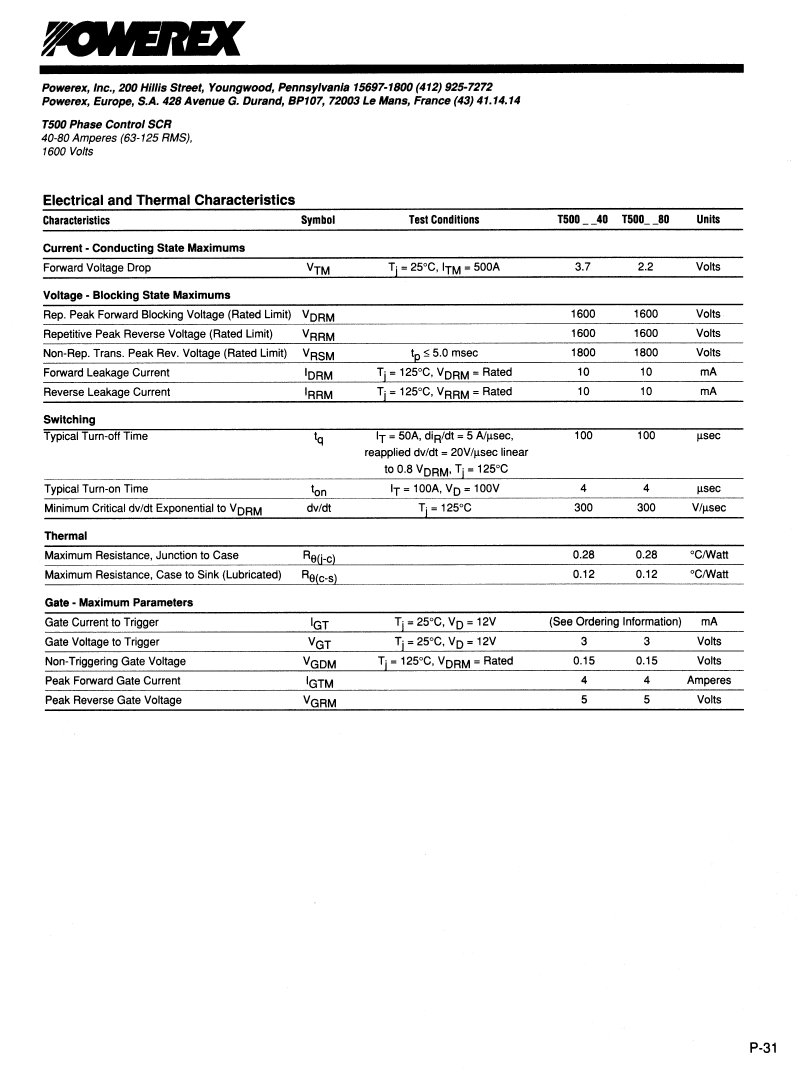

Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
JEDEC-95 code	TO-94
JESD-30 code	O-MUPM-H3
Maximum leakage current	10 mA

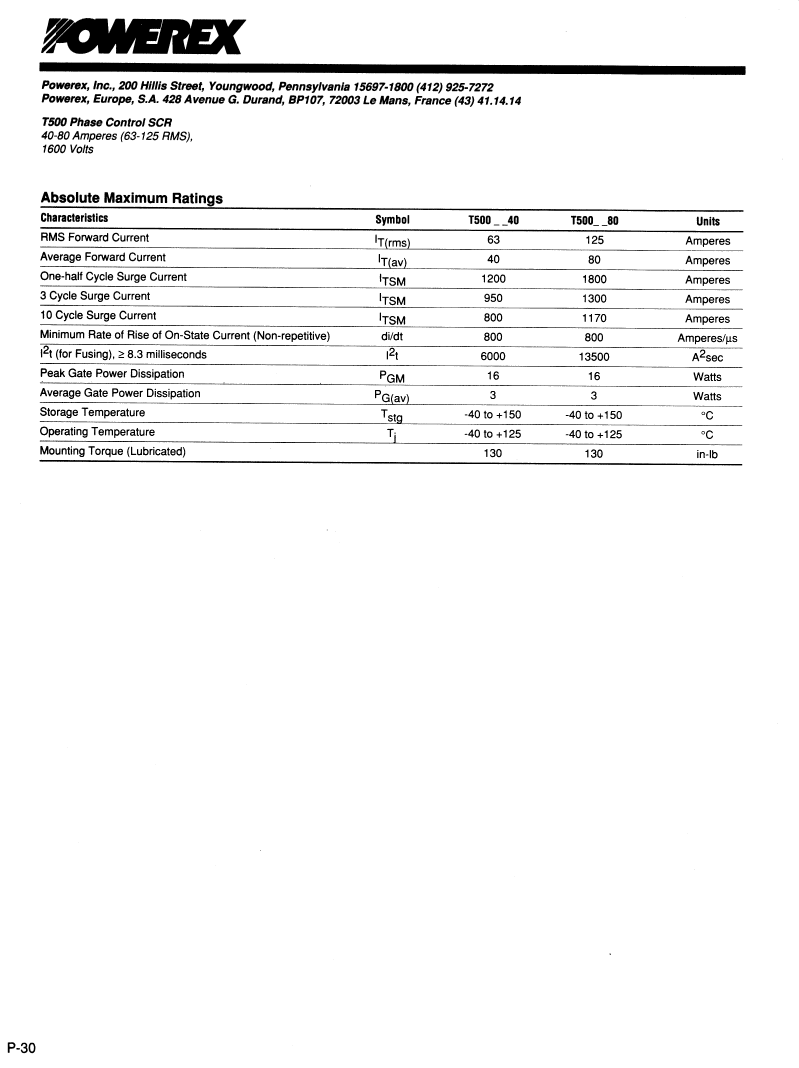

On-state non-repetitive peak current	1200 A
Number of components	1
Number of terminals	3
Maximum on-state current	40000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified

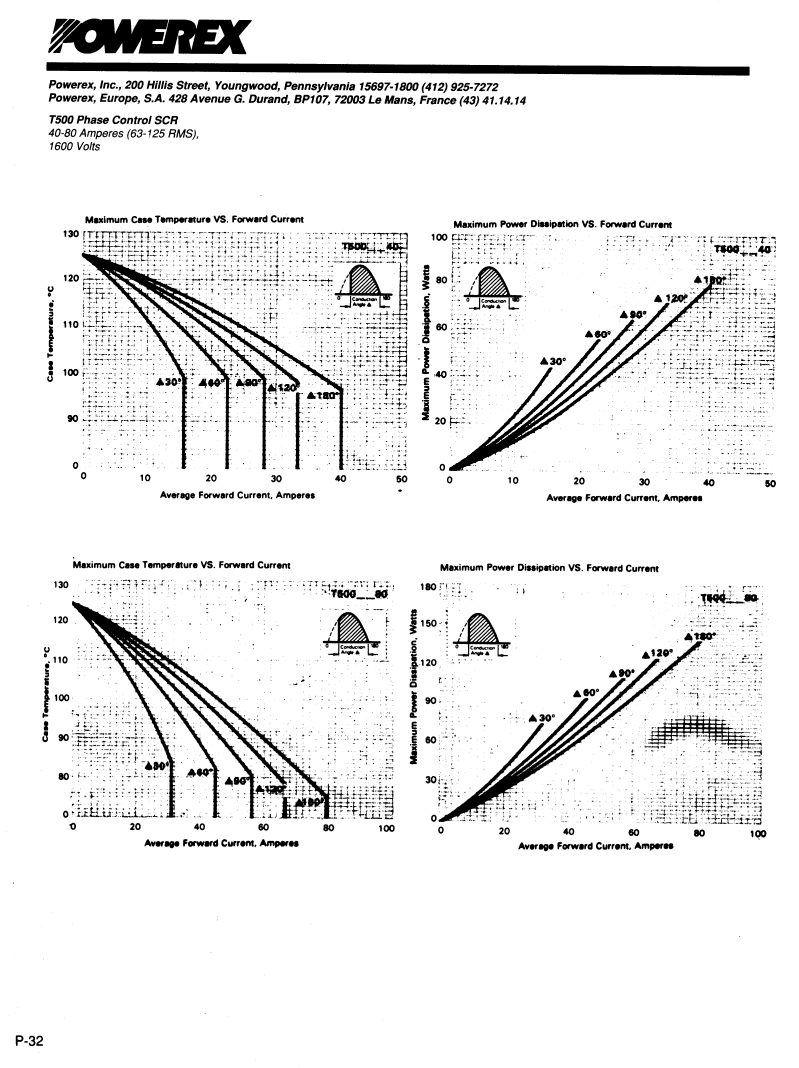

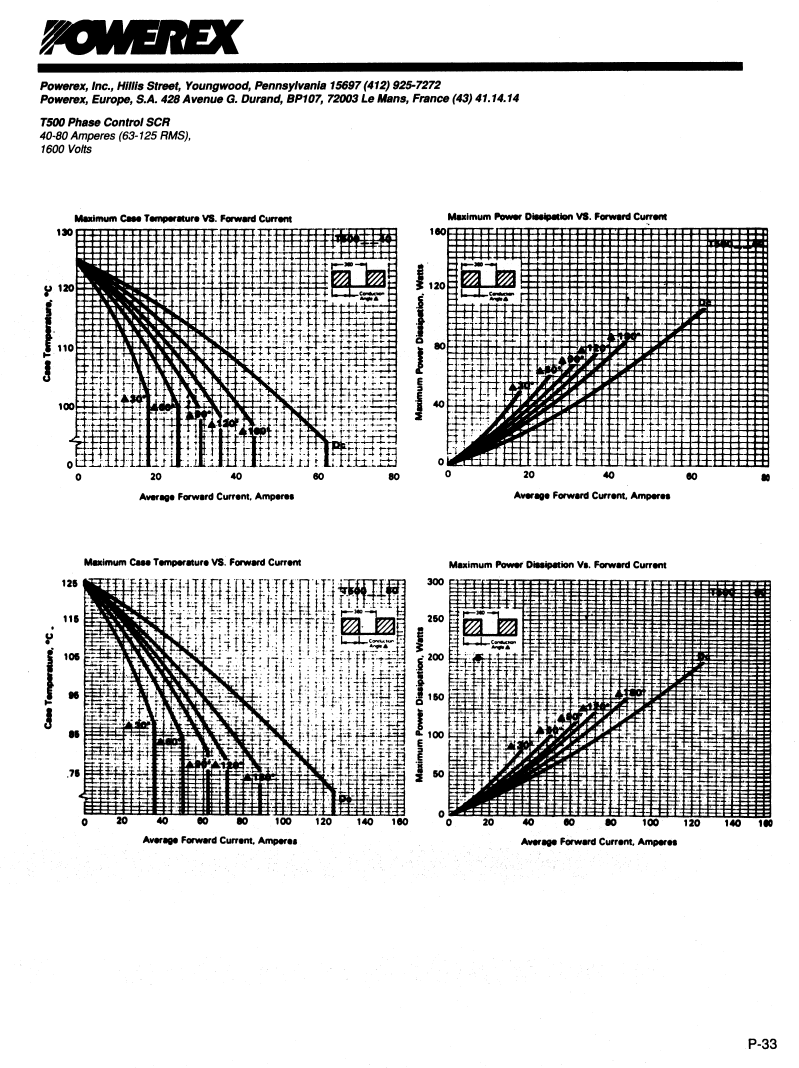

Maximum rms on-state current	63 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
