CS94-110PB: DescriptionSilicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-94; CategoryAnalog mixed-signal IC Trigger device; File Size69KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CS94-110PB Overview

Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-94

CS94-110PB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	POST/STUD MOUNT, O-MUPM-D3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	100 mA
JEDEC-95 code	TO-94
JESD-30 code	O-MUPM-D3
JESD-609 code	e0
On-state non-repetitive peak current	1600 A
Number of components	1
Number of terminals	3
Maximum on-state current	110000 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	110 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

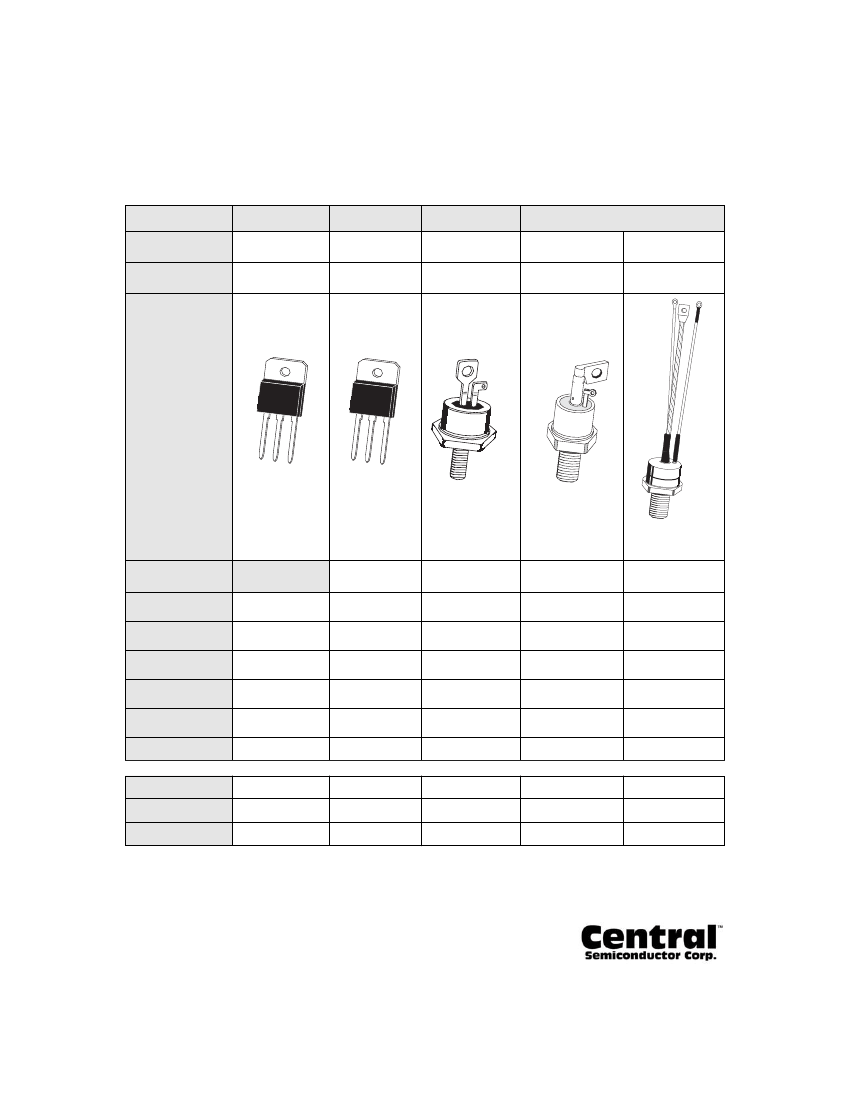

SCRs

(Continued)

IT (AMPS)

@ TC (

ITSM (AMPS)

500

110

1000

1600

110

1600

CASE

VRRM (VOLTS)

TO-218 ISOL

ISOLATED

CS218I-50B

CS218I-50D

CS218I-50M

CS218I-50N

CS218I-50P

CS218I-50PB

80mA

1.5V

150mA

TO-218

TO-65

TO-83

TO-94

200

400

600

800

1000

1200

IGT

VGT

CS218-55B*

CS218-55D*

CS218-55M*

CS218-55N*

CS218-55P*

CS218-55PB*

80mA

1.5V

150mA

CS65-70B

CS65-70D

CS65-70M

CS65-70N

CS65-70P

CS65-70PB

100mA

3.0V

200mA

CS83-110B

CS83-110D

CS83-110M

CS83-110N

CS83-110P

CS83-110PB

100mA

3.0V

100mA

CS94-110B

CS94-110D

CS94-110M

CS94-110N

CS94-110P

CS94-110PB

100mA

3.0V

100mA

* Not recommended for new designs.

185

w w w. c e n t r a l s e m i . c o m

CS94-110PB Related Products

	CS94-110PB	CS94-110P	CS94-110B	CS94-110D	CS94-110M	CS94-110N
Description	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-94	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element, TO-94	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-94	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-94	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-94	Silicon Controlled Rectifier, 110A I(T)RMS, 110000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-94
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V
Maximum holding current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
JEDEC-95 code	TO-94	TO-94	TO-94	TO-94	TO-94	TO-94
JESD-30 code	O-MUPM-D3	O-MUPM-D3	O-MUPM-D3	O-MUPM-D3	O-MUPM-D3	O-MUPM-D3
JESD-609 code	e0	e0	e0	e0	e0	e0
On-state non-repetitive peak current	1600 A	1600 A	1600 A	1600 A	1600 A	1600 A
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum on-state current	110000 A	110000 A	110000 A	110000 A	110000 A	110000 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	110 A	110 A	110 A	110 A	110 A	110 A
Off-state repetitive peak voltage	1200 V	1000 V	200 V	400 V	600 V	800 V
Repeated peak reverse voltage	1200 V	1000 V	200 V	400 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1
