5321F7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5321F7

Preview

5321F7: DescriptionSingle Color LED, Yellow, Diffused, T-1, 3mm; CategoryLED optoelectronic/LED photoelectric; File Size111KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric View All

5321F7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5321F7	-	-	View	Buy Now

5321F7 Overview

Single Color LED, Yellow, Diffused, T-1, 3mm

5321F7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	6.3 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	13.686 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

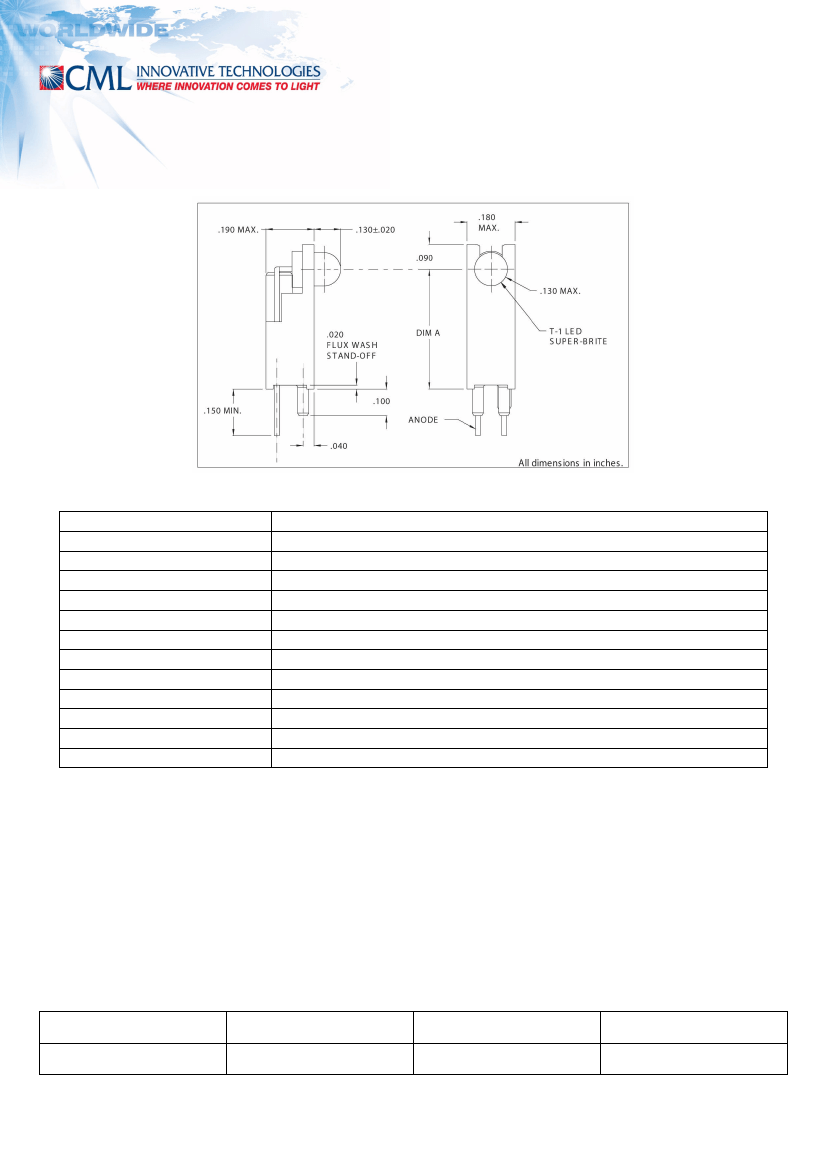

Part Number : 5321F7

Serial Number : 5321F

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

ROHS Status

Yellow

3,6

10

10.0

30.0

2.1

3.0

5

55

585

-

Yes

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5321F

Name : VG

Print date : 11/07/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
